Vehicle Signals

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
CAUTION:
In case of confirming light signal, set D/N mode to ON/OFF of lighting switch (normal setting).
- OFF: D (Day mode)
- ON: N (Night mode)
  Unless above setting, light signal (ON/OFF) may not be accurately displayed.

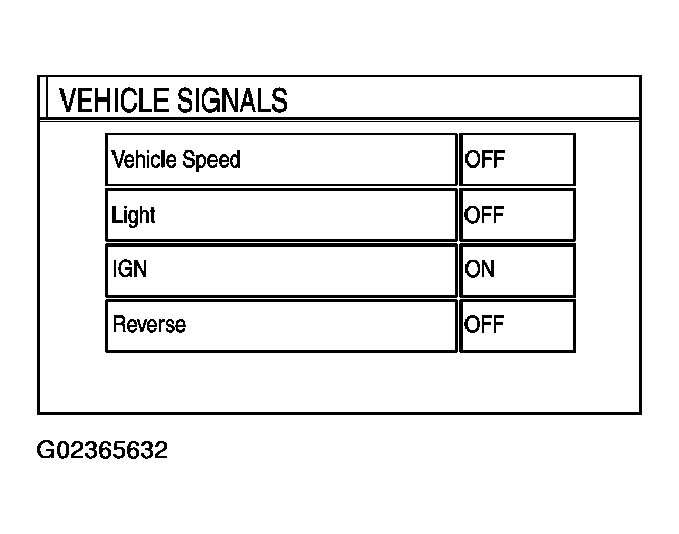

Fig 1: Identifying Display - Vehicle Signals
Courtesy of NISSAN MOTOR CO., U.S.A.

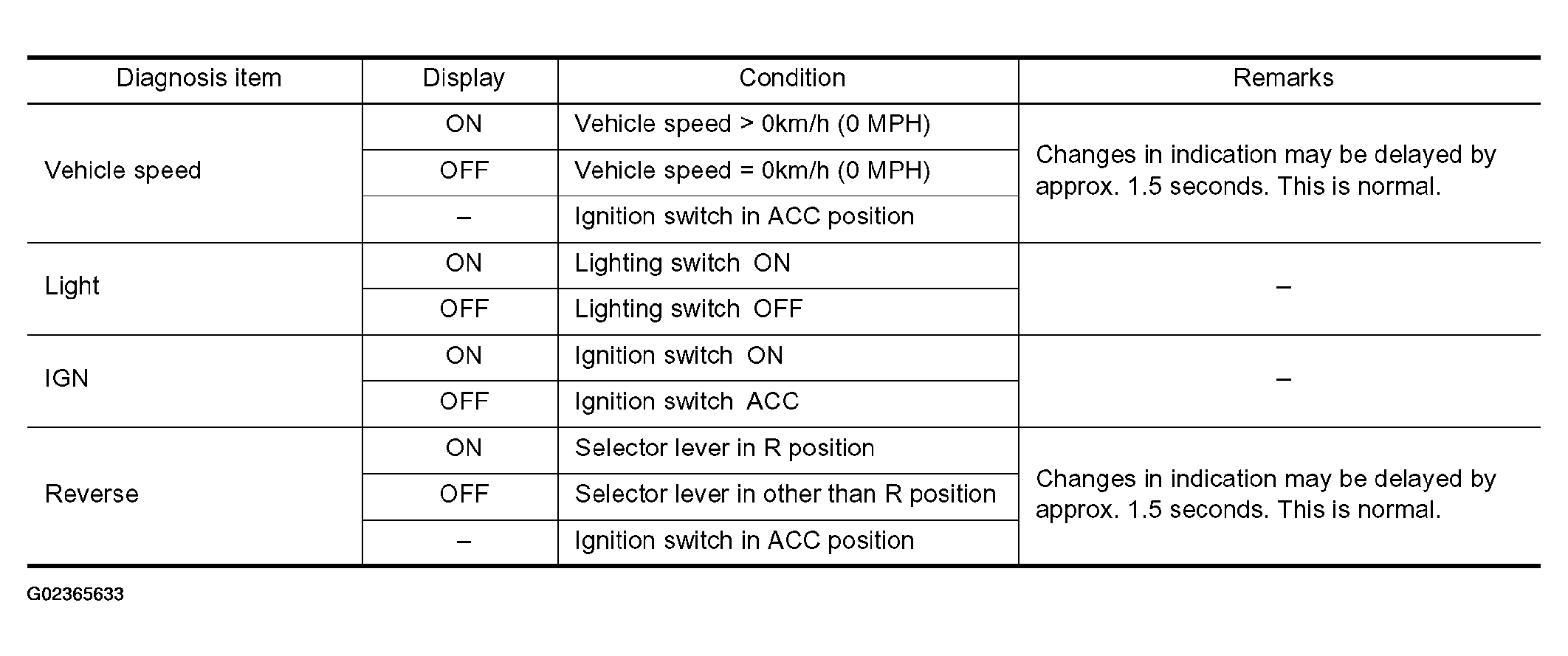

Fig 2: Display Item Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to "VEHICLE SPEED SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
If light is NG, refer to "ILLUMINATION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
If IGN is NG, refer to "IGNITION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
If reverse is NG, refer to "REVERSE SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
CAUTION:
In case of confirming light signal, set D/N mode to ON/OFF of light switch (normal setting).
- OFF: D (Day mode)
- ON: N (Night mode)
  Unless above setting, light signal (ON/OFF) may not be accurately displayed.

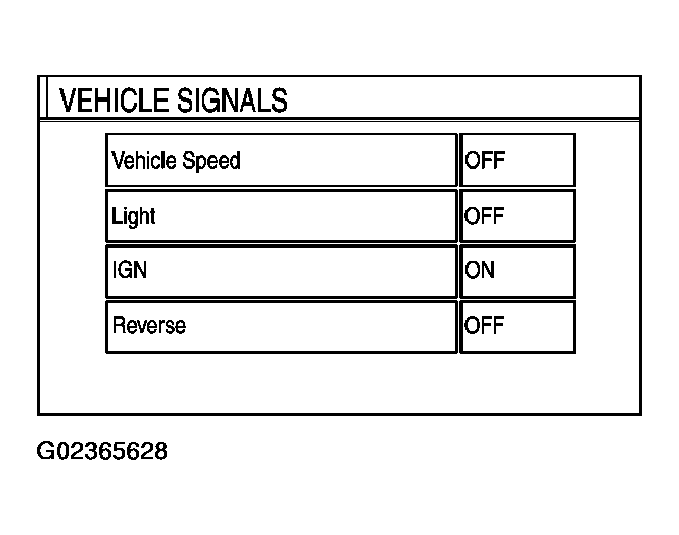

Fig 1: Identifying Display - Vehicle Signals
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Display Item Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to "VEHICLE SPEED SIGNAL CHECK FOR NAVI CONTROL UNIT ".
If light is NG, refer to "ILLUMINATION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
If IGN is NG, refer to "ILLUMINATION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
If reverse is NG, refer to "REVERSE SIGNAL CHECK FOR NAVI CONTROL UNIT ".
