Checking Memory Function

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Set the temperature to 32°C (90°F).
Rotate the fan dial counterclockwise (hold fan dial until system shuts OFF).
Turn ignition switch OFF.
Turn ignition switch ON.

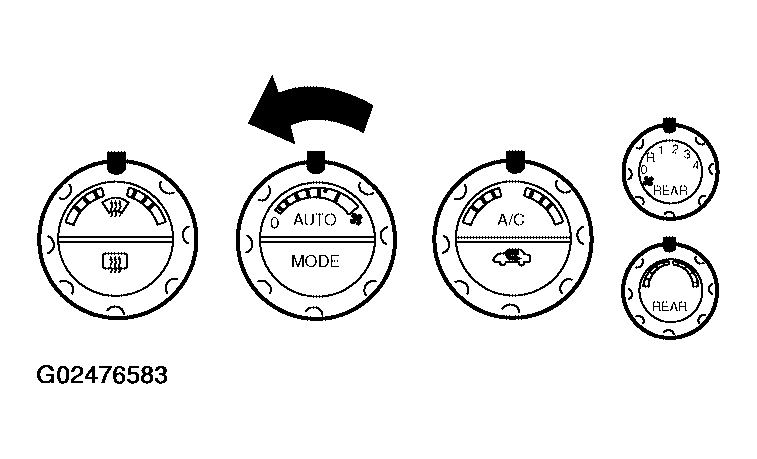

Fig 1: Turning Auto Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Press the AUTO switch.
Confirm that the set temperature remains at previous temperature.

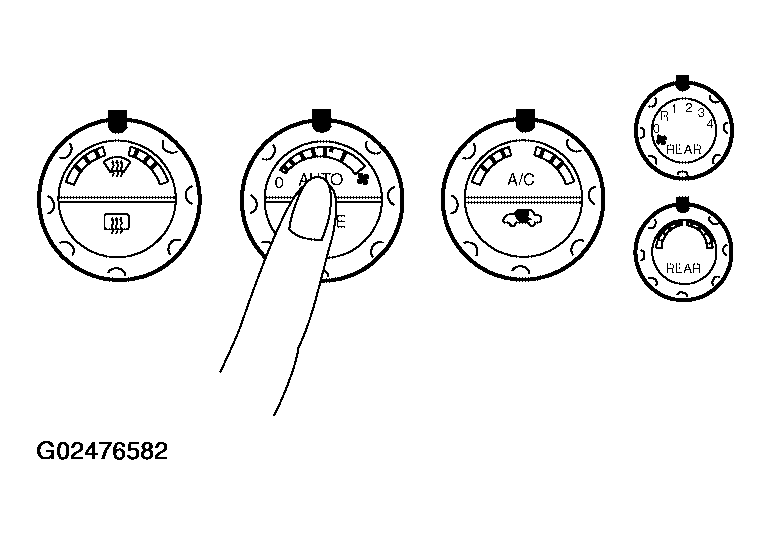

Fig 2: Pressing Auto Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Rotate the fan dial counterclockwise (hold fan dial until system shuts OFF).

If NG, go to trouble diagnosis procedure for "MEMORY FUNCTION ".

If OK, continue with next check.

Fig 3: Turning Auto Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
