Memory Operation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Selecting the memorized position.

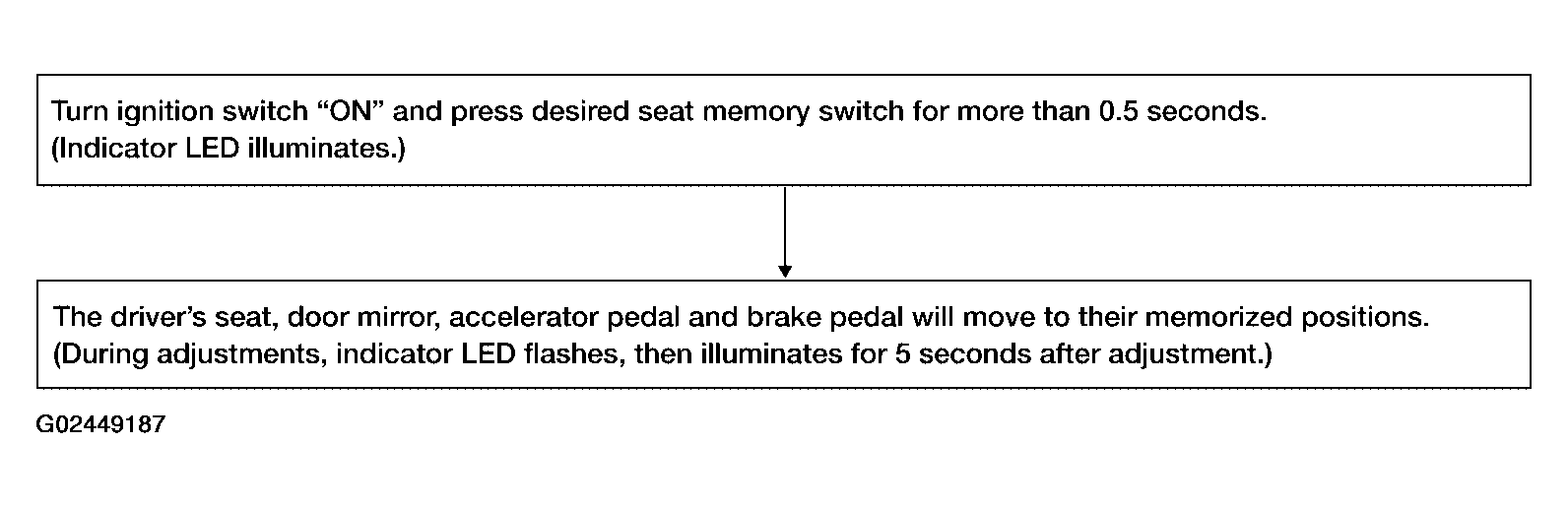

Fig 1: Memory Operation Flow Chart
G02449187Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The front seat position and pedal adjustment functions (see the FRONT SEAT POSITION AND PEDAL ADJUSTMENT FUNCTION REFERENCE TABLE  table) operate simultaneously in the order of priority.
FRONT SEAT POSITION AND PEDAL ADJUSTMENT FUNCTION REFERENCE TABLE

Priority Function Priority Function
1 Seat sliding, (door mirror LH/RH)(1) 4 Seat lifter-FR
2 Pedal 5 Seat lifter-FR
3 Seat reclining - -
(1) In conjunction with sliding the seat, the door mirrors are positioned.
