Center Pillar

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Service Joint

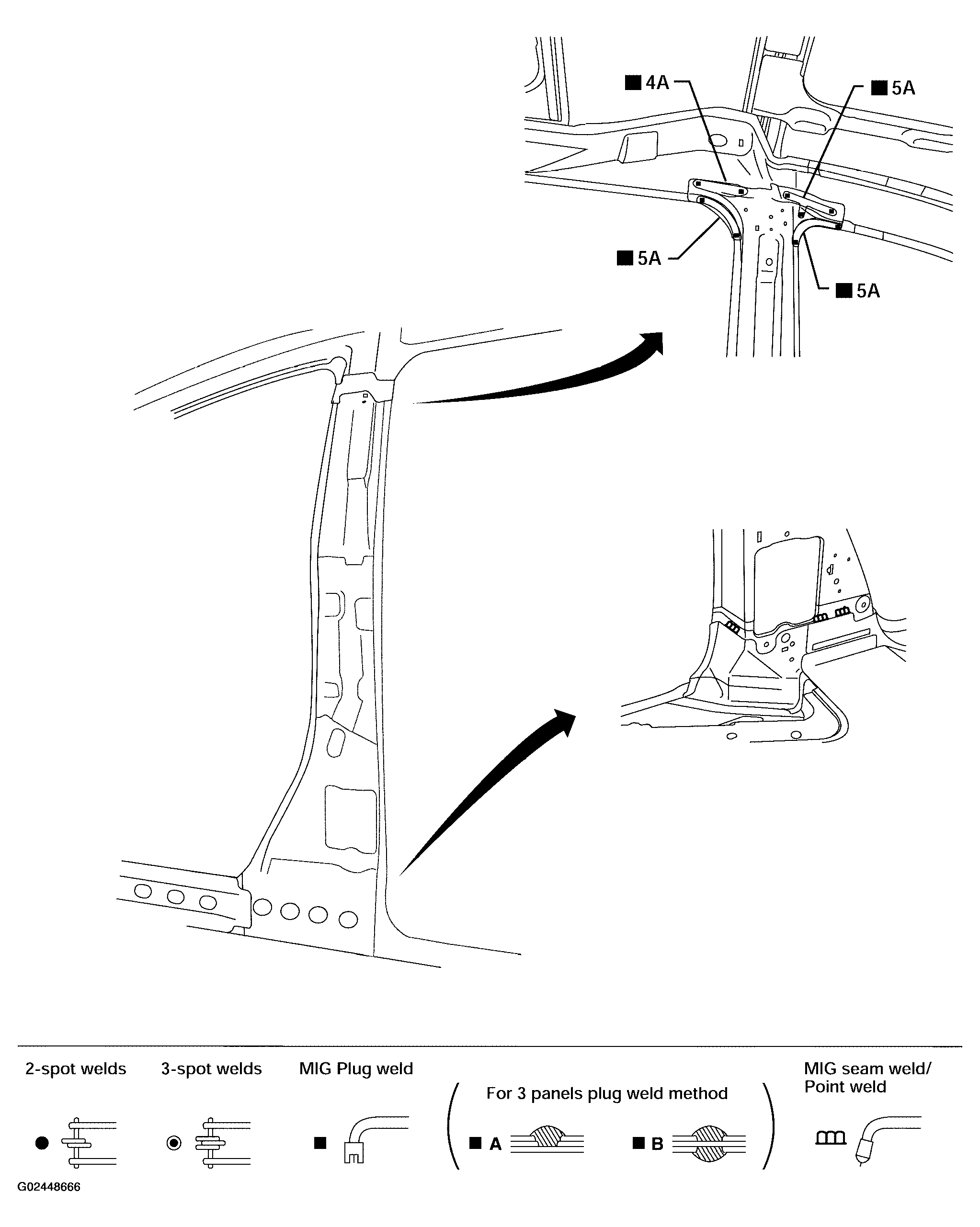

Fig 1: Identifying Center Pillar Service Joint (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Service Joint

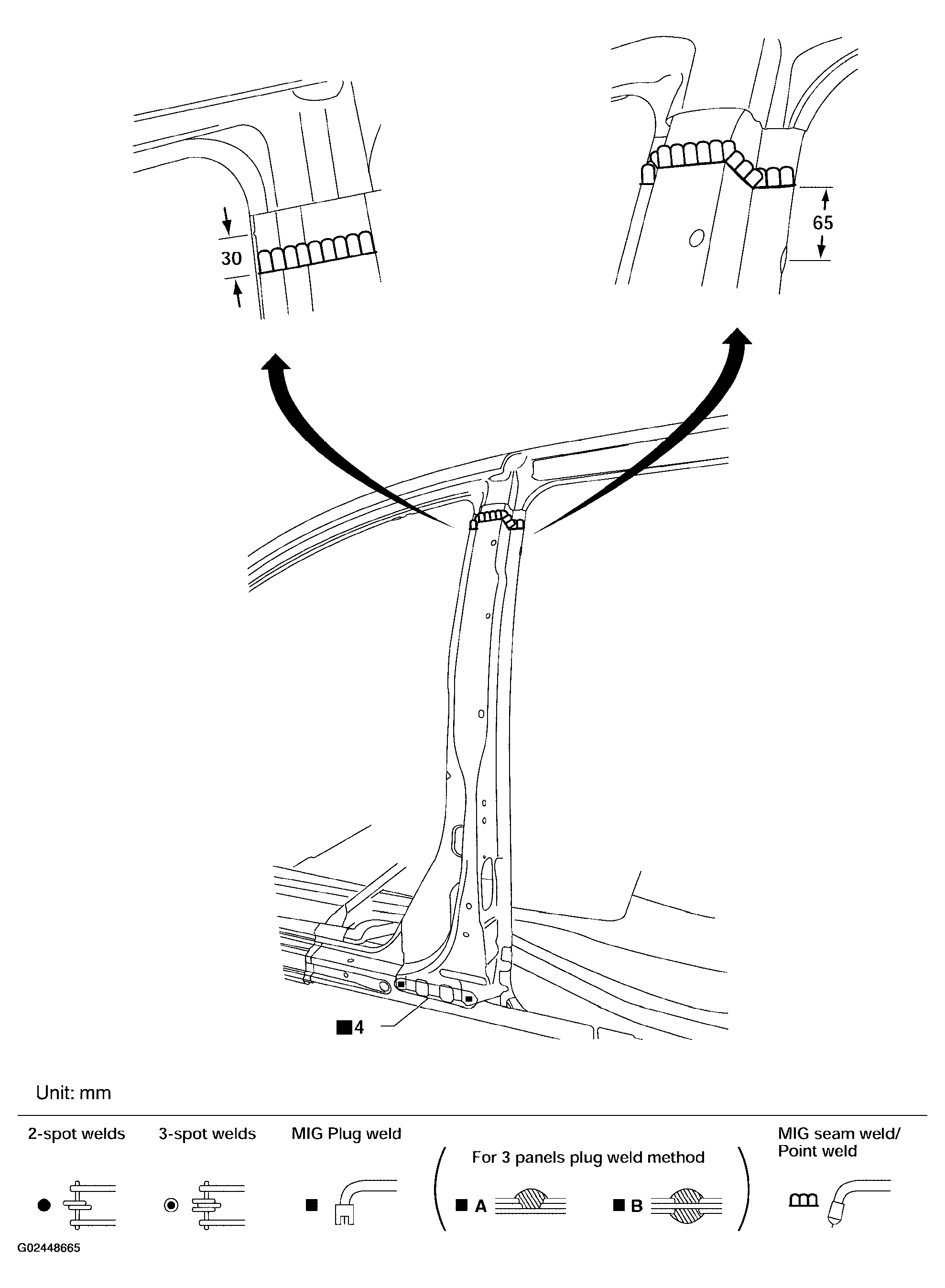

Fig 2: Identifying Center Pillar Service Joint (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Service Joint

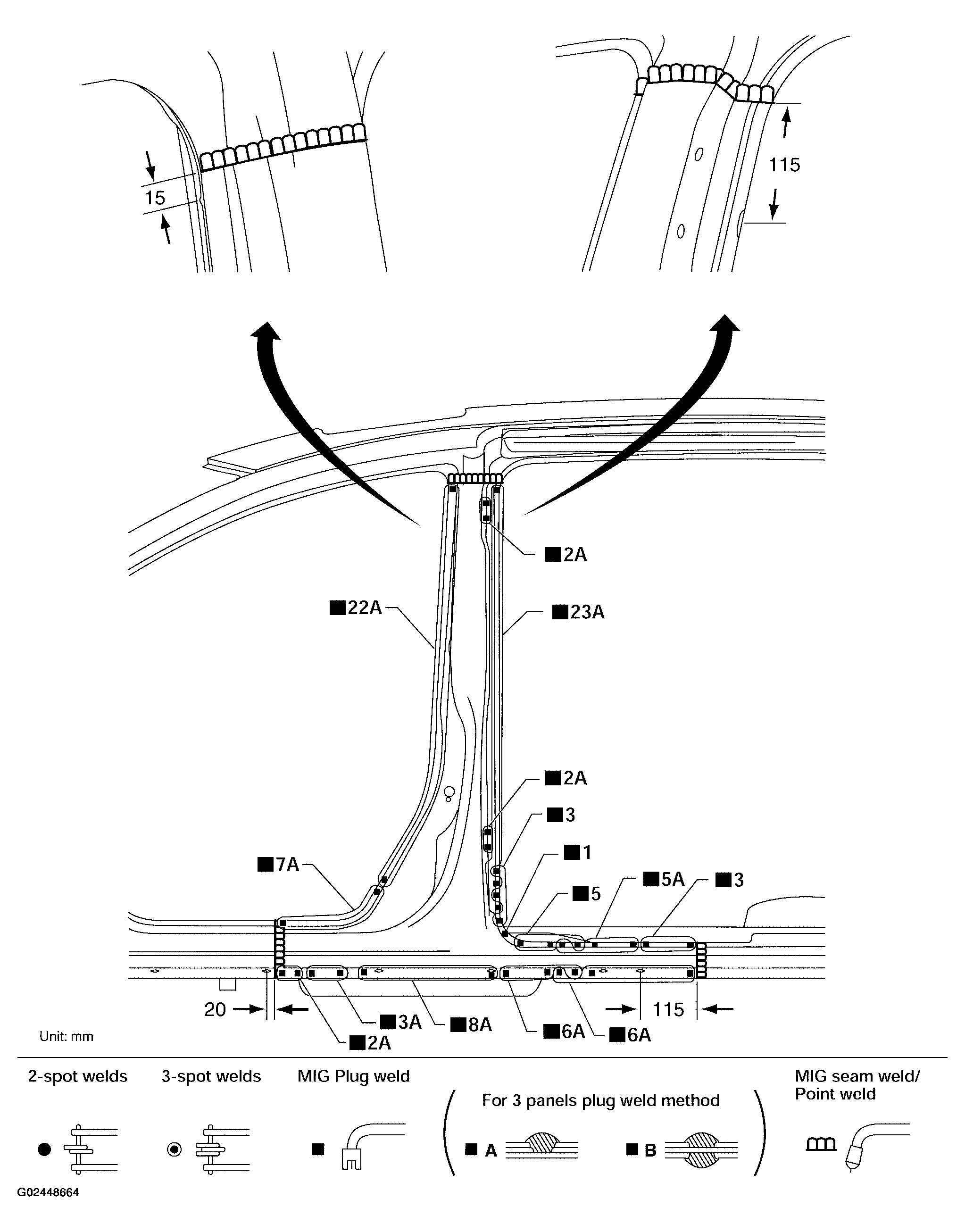

Fig 3: Identifying Center Pillar Service Joint (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
