Inspection After Installation

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

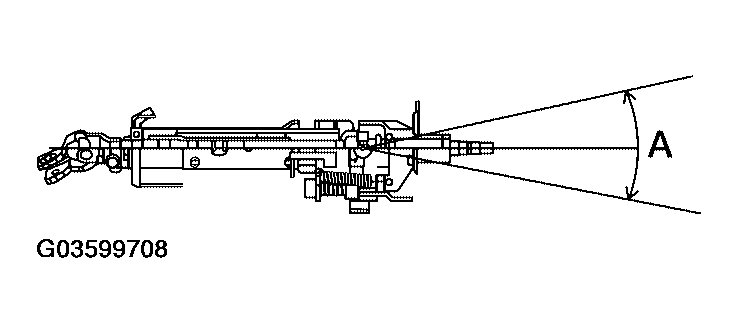

After installing steering column to vehicle, check tilt device and its operation range is as specified.
Range "A" : 61.3 mm (2.41 in)
Check if steering wheel operation can turn to the end of the left and right stops smoothly.

Fig 1: Checking Steering Wheel Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
