Power Supply and Ground Circuit Check for Display Control Unit

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE

Make sure the following fuses of the display control unit are not blown.

POWER SOURCE AND TERMINAL REFERENCE

Terminals		Power source	Fuse No.
Connector	Terminal (Wire color)	Power source	Fuse No.
M94	1 (Y)	Battery power	31
	10 (O)	ACC power	4
	12 (G/R)	IGN power	12

OK or NG

OK: GO TO 2.
NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to POWER SUPPLY ROUTING CIRCUIT .

CHECK POWER SUPPLY CIRCUIT

Disconnect display control unit connector M94.
Check voltage between connector terminals and ground as follows.

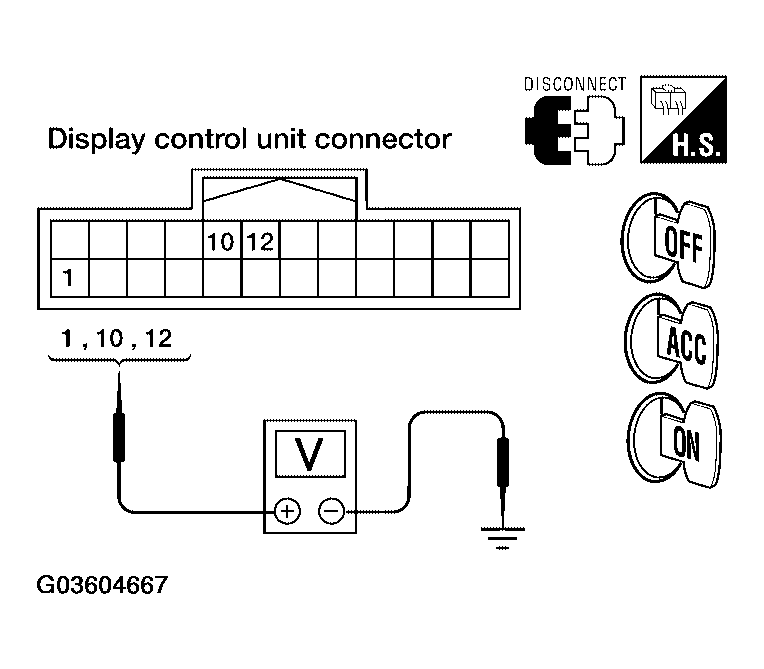

Fig 1: Checking Voltage Between Connector Terminals And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE BETWEEN CONNECTOR TERMINALS AND GROUND

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Connector	Terminal (Wire color)	(-)	OFF	ACC	ON
M94	1 (Y)	Ground	Battery voltage	Battery voltage	Battery voltage
	10 (O)		0V	Battery voltage	Battery voltage
	12 (G/R)		0V	0V	Battery voltage

OK or NG

OK: GO TO 3.
NG: Check harness for open between display control unit and fuse.

CHECK GROUND CIRCUIT

Turn ignition switch OFF.
Check continuity between the following display control unit connector terminals and ground.

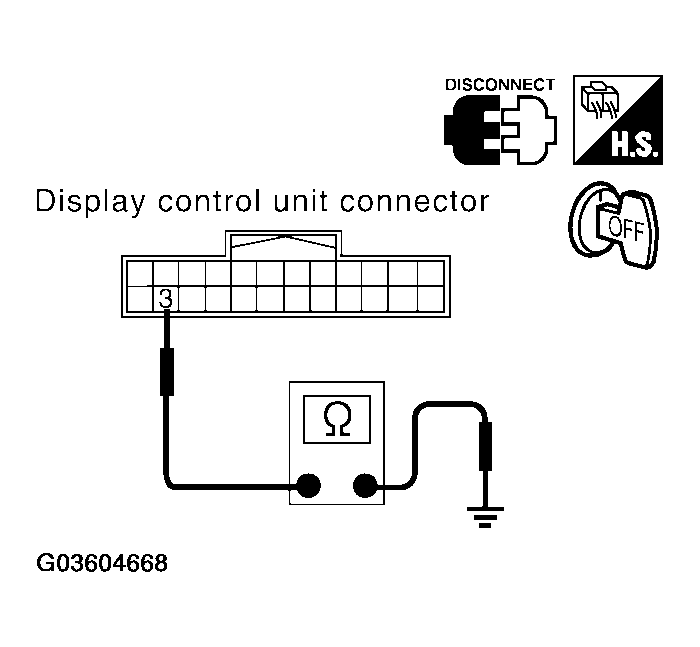

Fig 2: Checking Continuity Between Display Control Unit Connector Terminals And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

CONTINUITY BETWEEN DISPLAY CONTROL UNIT CONNECTOR TERMINALS AND GROUND

Terminals			Ignition switch	Continuity
Connector	Terminal (Wire color)	-	Ignition switch	Continuity
M94	3 (B)	Ground	OFF	Yes

OK or NG

OK: Inspection End.
NG: Repair or replace harness.
