Accelerator Cable Adjustment

WARNING: This page is about a different car, the 2002 Isuzu Trooper, 2002 Isuzu Rodeo Sport, 2002 Isuzu Rodeo, 2002 Isuzu Axiom, and 2002 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.

Loosen cable adjusting and jam nuts. Pull on cable while fully closing throttle valve. Tighten adjusting and jam nuts. See Fig 1.
Loosen adjusting nut 3 turns. Tighten jam nut. Valve lever must return upward to stopper screw. If throttle valve lever does not reach stopper screw, repeat adjustment procedure.

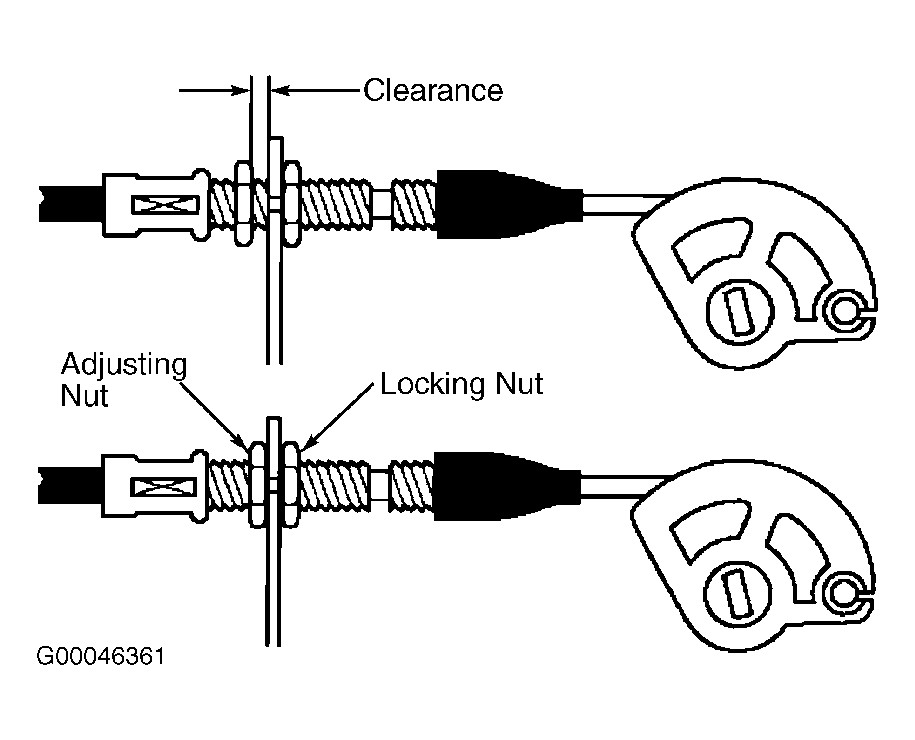

Fig 1: Adjusting Accelerator Cable (Passport, Rodeo & Rodeo Sport)

Courtesy of ISUZU MOTOR CO.
