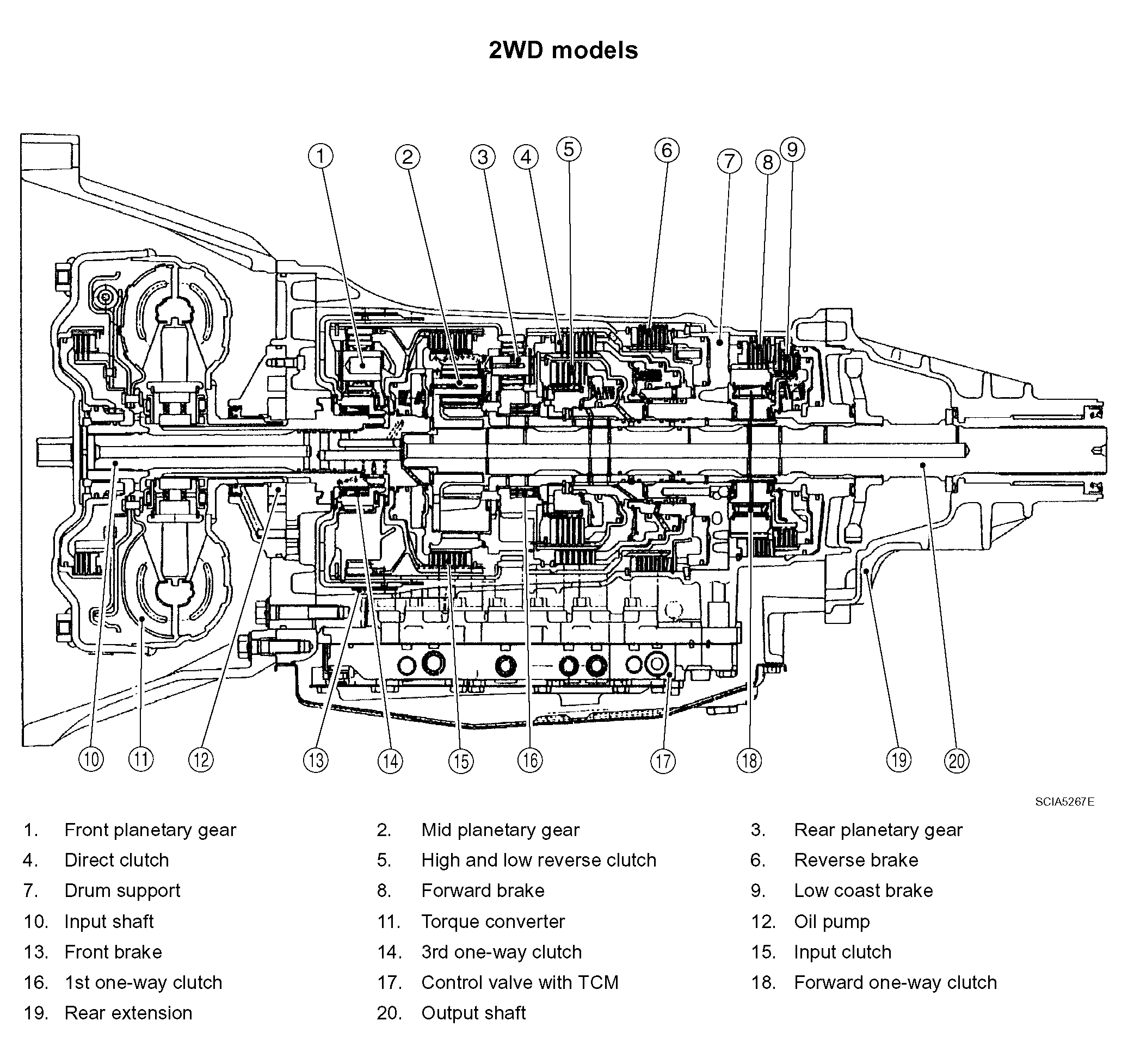

2WD models
Fig 1: Cross-Sectional View - A/T Control System (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

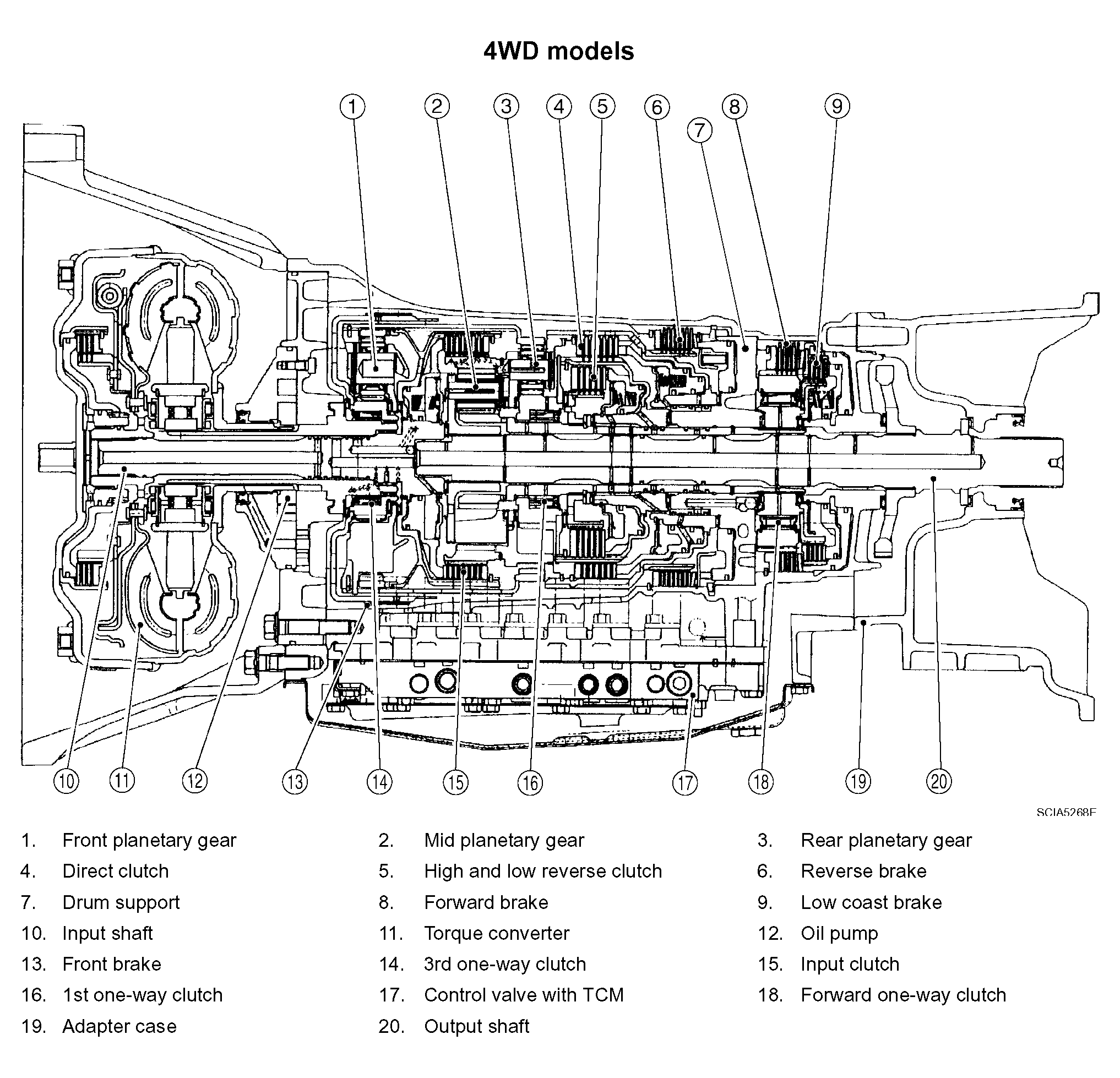

4WD models
Fig 2: Cross-Sectional View - A/T Control System (4WD Models)
