Normal Control

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Each clutch is adjusted to the necessary pressure to match the engine drive force.

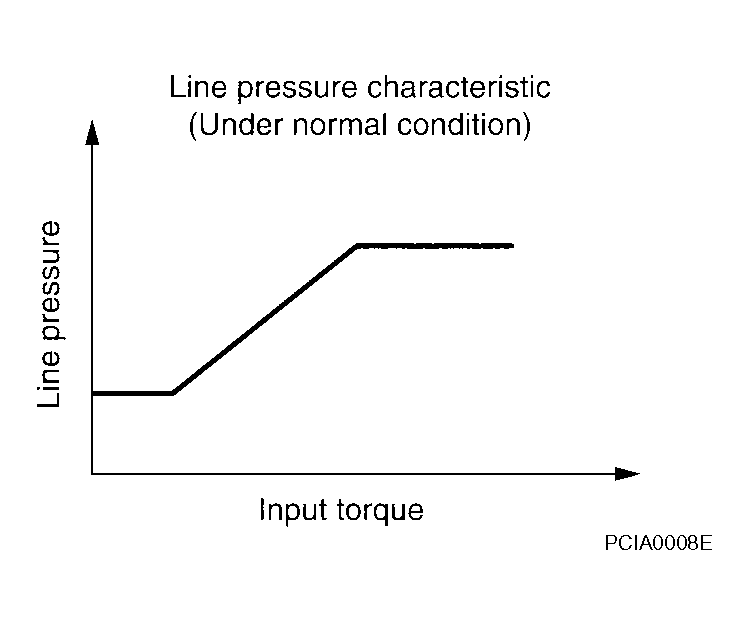

Fig 1: Line Pressure Control Graph - Normal Control
G04173936Courtesy of NISSAN MOTOR CO., U.S.A.
