Torque Converter Clutch Control Valve Control: Notes

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

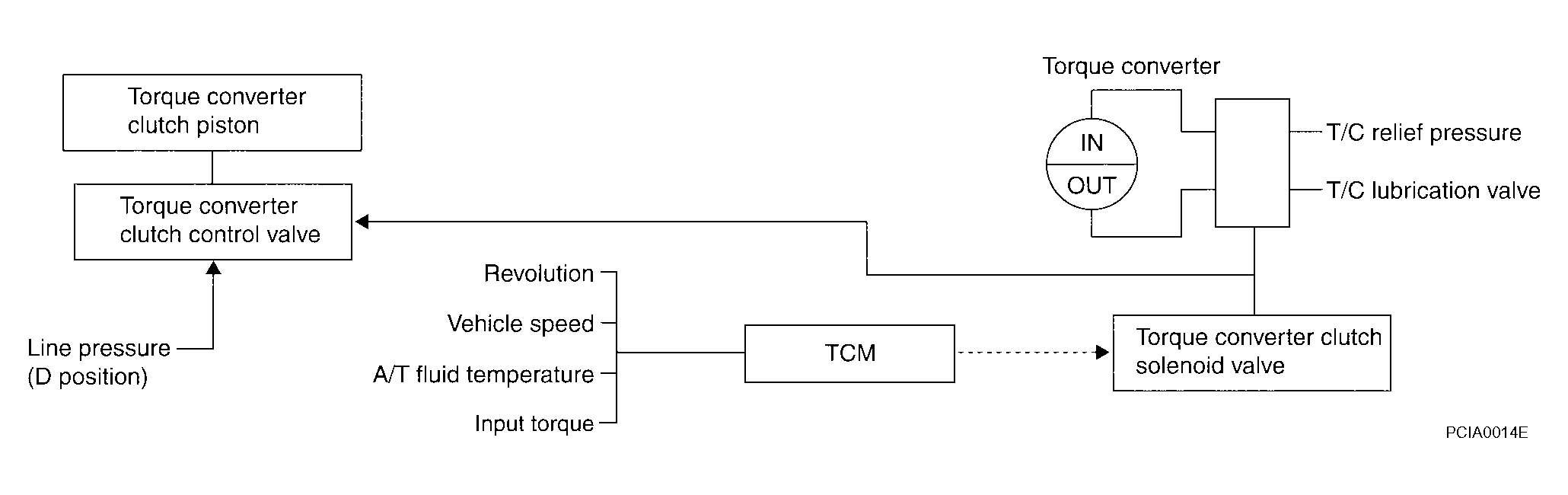

Lock-up Control System Diagram

Fig 1: Lock-Up Control System Diagram
G04173942Courtesy of NISSAN MOTOR CO., U.S.A.
