Assembly (2)

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

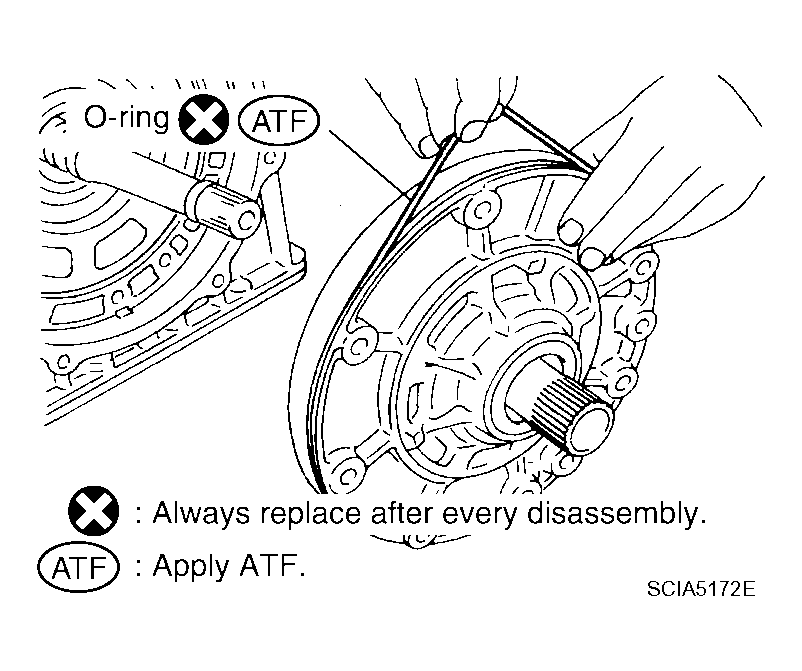

Install O-ring to oil pump assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 1: Installing O-Ring To Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

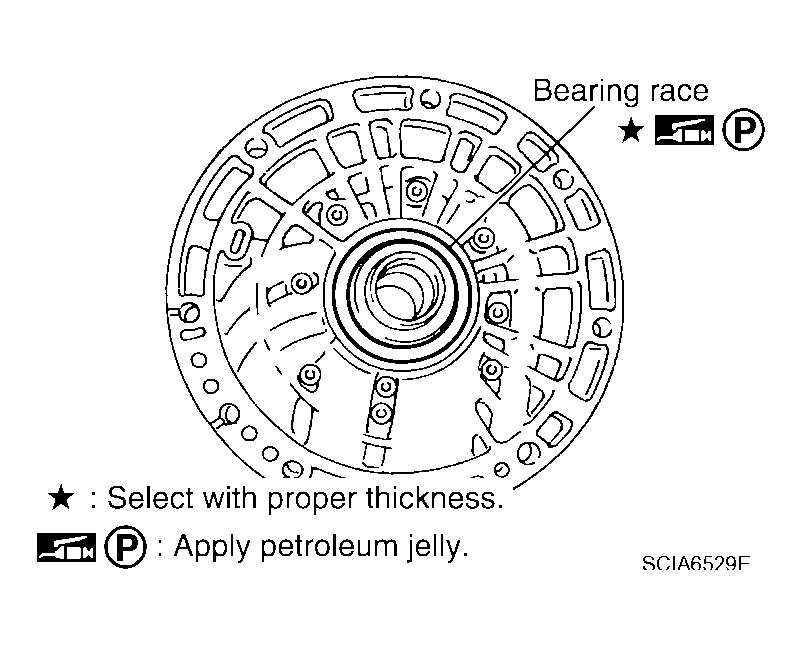

Install bearing race to oil pump assembly.
CAUTION: Apply petroleum jelly to bearing race.

Fig 2: Identifying Bearing Race To Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump assembly in transmission case.
CAUTION: Apply ATF to oil pump baring.

Fig 3: Installing Oil Pump Assembly In Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

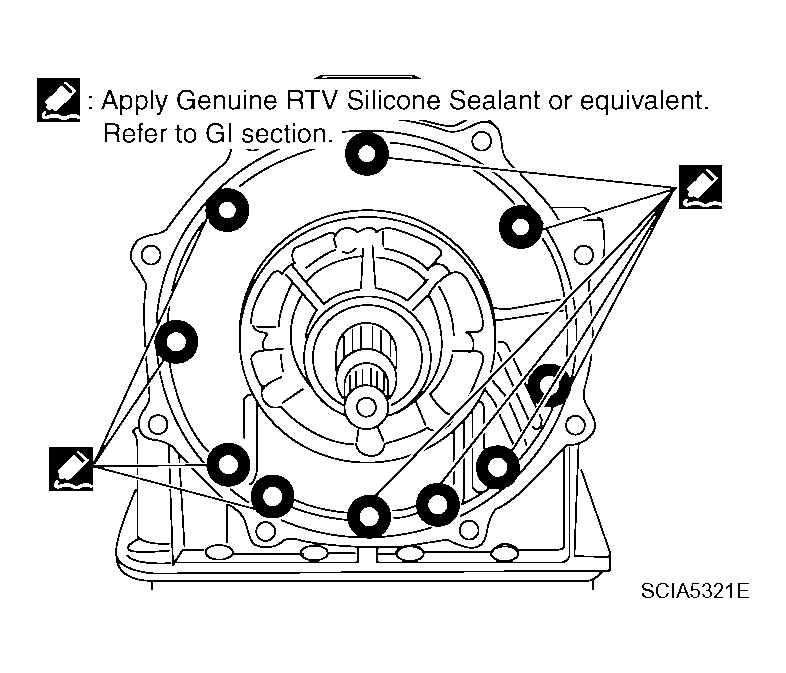

Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown.
CAUTION: Completely remove all moisture, oil, old sealant and any foreign material from the oil pump bolts and oil pump bolt mating surfaces.

Fig 4: Identifying Area For Applying Sealant To Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

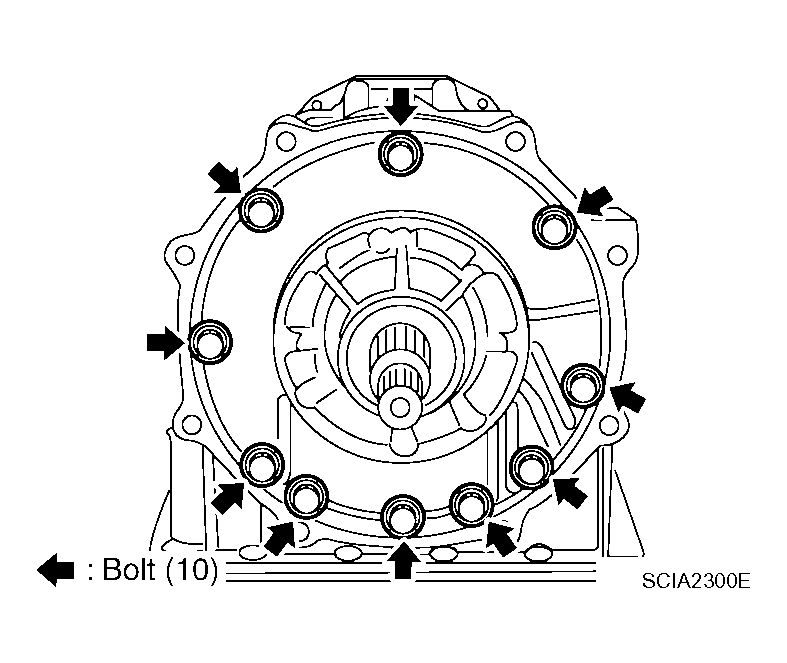

Tighten oil pump bolts to specified torque.
CAUTION: Apply ATF to oil pump bushing.

Oil pump bolts : 48 N.m (4.9 kg-m, 35 ft-lb)

Fig 5: Identifying Bolts For Oil Pump Assembly And Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.

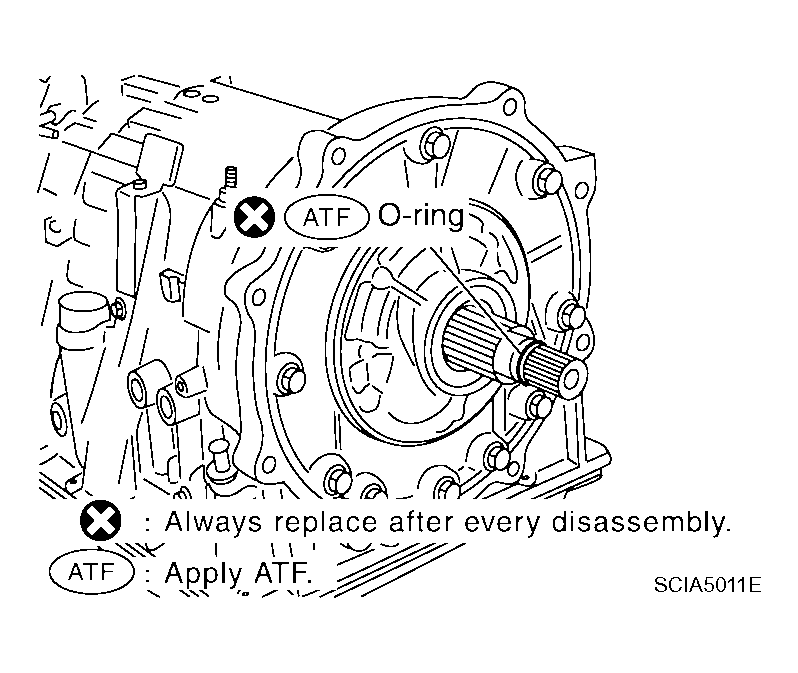

Install O-ring to input clutch assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 6: Identifying O-Ring To Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

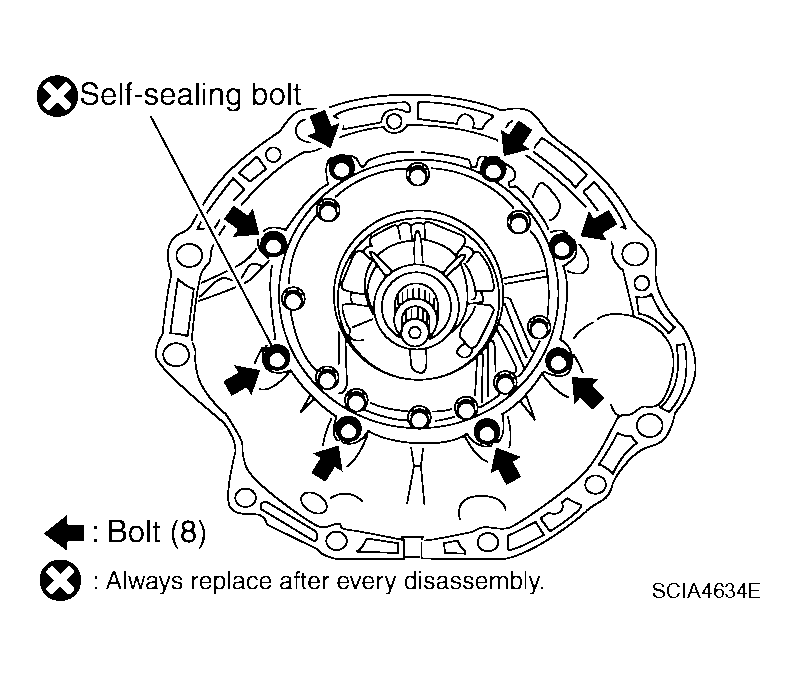

Install converter housing to transmission case and tighten bolts to specified torque.
CAUTION: Do not reuse self-sealing bolt.

Converter housing bolt: : 52 N.m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt: : 61 N.m (6.2 kg-m, 45 ft-lb)

Fig 7: Installing Converter Housing To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that brake band does not close turbine revolution sensor hole.

Fig 8: Locating Turbine Revolution Sensor Hole And Brake Band
Courtesy of NISSAN MOTOR CO., U.S.A.

Install control valve with TCM.

Connect TCM connector and park/neutral position switch connector.

Fig 9: Locating TCM And Park Neutral Position Switch Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T assembly harness connector to control valve with TCM.

Fig 10: Installing A/T Assembly Harness Connector To Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect TCM connectors.

Fig 11: Locating TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to A/T assembly harness connector.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 12: Locating Harness Connector O Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 to bracket.

Fig 13: Locating A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM and tighten bolt to specified torque.
CAUTION: Adjust bolt hole of bracket to bolt hole of control valve.

Bracket bolt : 7.9 N.m (0.81 kg-m, 70 in-lb)

Fig 14: Identifying A/T Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve with TCM in transmission case.
CAUTION:
- Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
- Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

  Fig 15: Locating Turbine Revolution Sensor Hole And Brake Band
  Courtesy of NISSAN MOTOR CO., U.S.A.

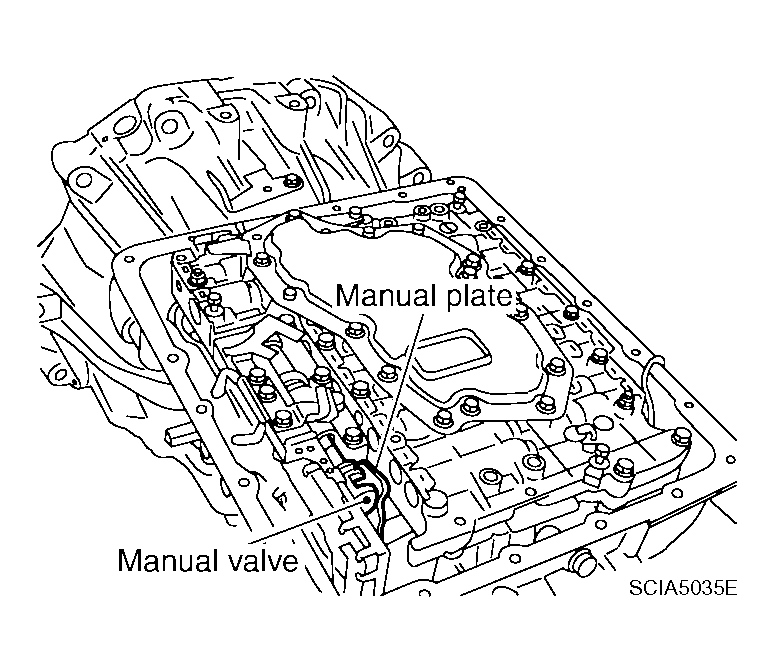

- Assemble it so that manual valve cutout is engaged with manual plate projection.
Fig 16: Assembling Manual Valve Cutout Engaged With Manual Plate Projection
Courtesy of NISSAN MOTOR CO., U.S.A.

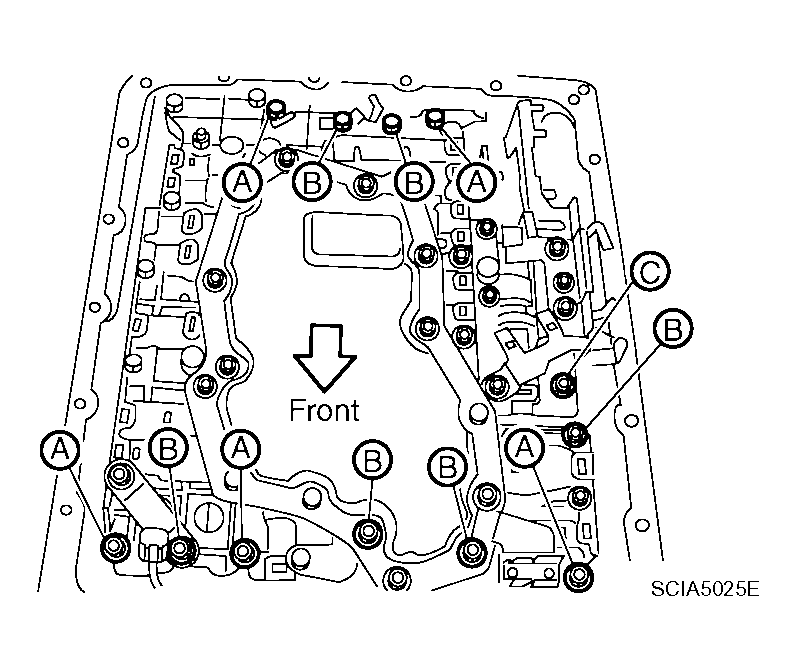

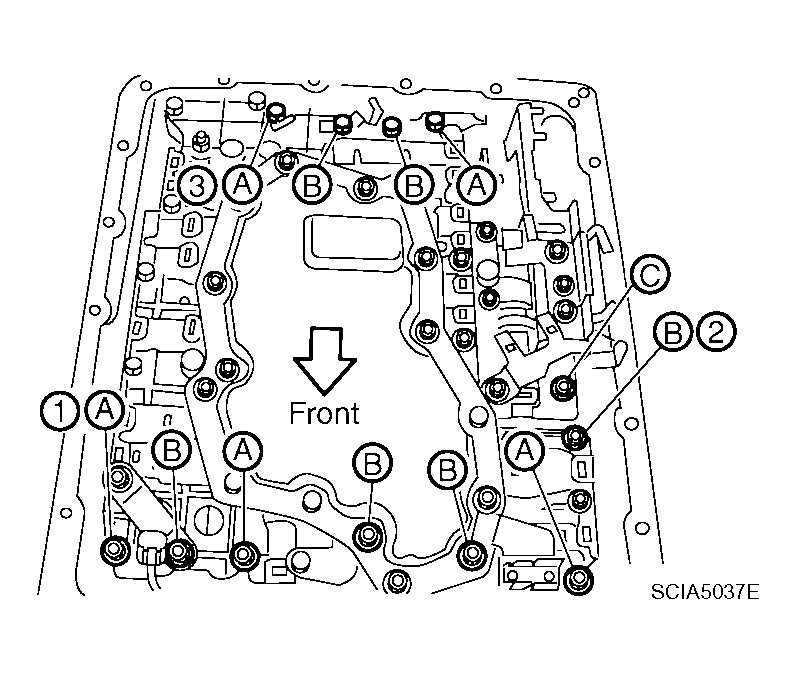

Install bolts A, B and C to control valve with TCM.

BOLTS SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

Fig 17: Identifying Bolts To Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
Bolts : 7.9 N.m (0.81 kg-m, 70 in-lb)

Fig 18: Identifying Tightening Sequence Of Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Connect A/T fluid temperature sensor 2 connector.
Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.

Fig 19: Locating A/T Fluid Temperatrue Sensor 2 And Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.

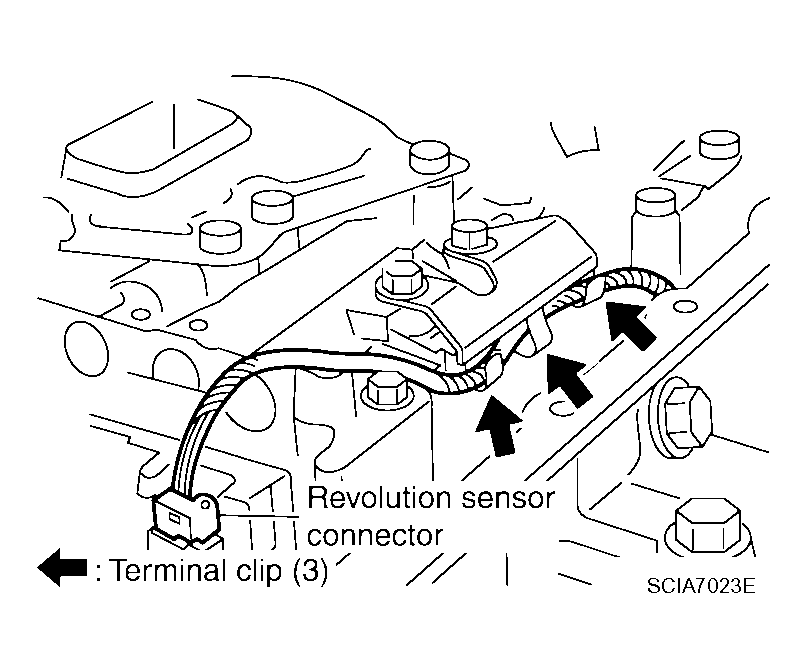

Connect revolution sensor connector.
Securely fasten revolution sensor harness with terminal clips.

Fig 20: Connecting Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull down A/T assembly harness connector.
CAUTION: Be careful not to damage connector.

Fig 21: Pulling Down A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to A/T assembly harness connector.

Fig 22: Installing Snap Ring To A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install magnets in oil pan.

Fig 23: View Of Magnets In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan to transmission case.
1. Install oil pan gasket to transmission case.
  CAUTION:
  - Do not reuse oil pan gasket.
  - Install it in the direction to align hole positions.
  - Completely remove all moisture, oil, old gasket and any foreign material from oil pan gasket mating surface.
2. Install oil pan to transmission case.
  CAUTION:
  - Install it so that drain plug comes to the position as shown.
  - Be careful not to pinch harnesses.
  - Completely remove all moisture, oil, old gasket and any foreign material from oil pan gasket mating surface.
  Fig 24: Identifying Oil Pan Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten oil pan bolts to the specified torque in numerical order shown after temporarily tightening them.
CAUTION: Do not reuse oil pan bolts.

Oil pan bolts : 7.9 N.m (0.81 kg-m, 70 in-lb)
Install drain plug to oil pan.
CAUTION: Do not reuse drain plug gasket.

Drain plug : 34 N.m (3.5 kg-m, 25 ft-lb)

Fig 25: Identifying Tightening Sequence Of Oil Pan Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install torque converter.
1. Pour ATF into torque converter.
  CAUTION:
  - Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of fluid is required for a new torque converter.
  - When reusing old torque converter, add the same amount of fluid as was drained.
  Fig 26: Pouring ATF Into Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.

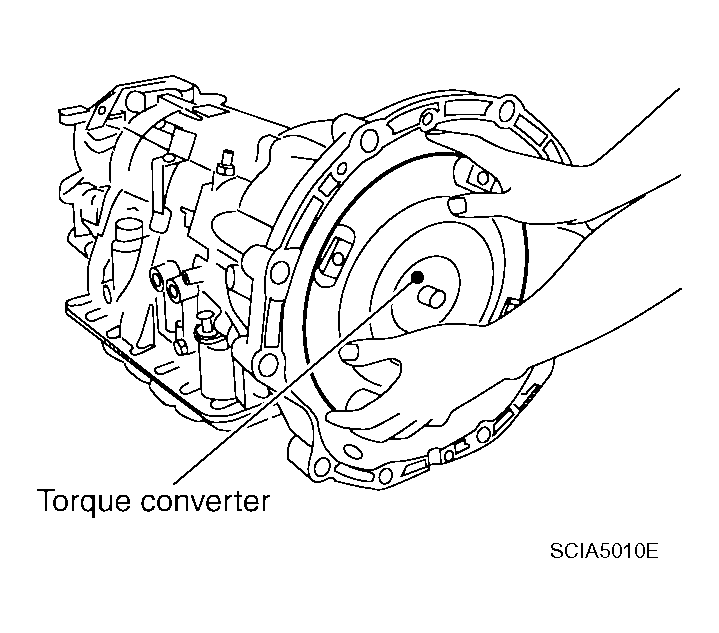

2. Install torque converter while aligning notches of torque converter with notches of oil pump.
  CAUTION: Install torque converter while rotating it.

  Fig 27: Identifying Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.

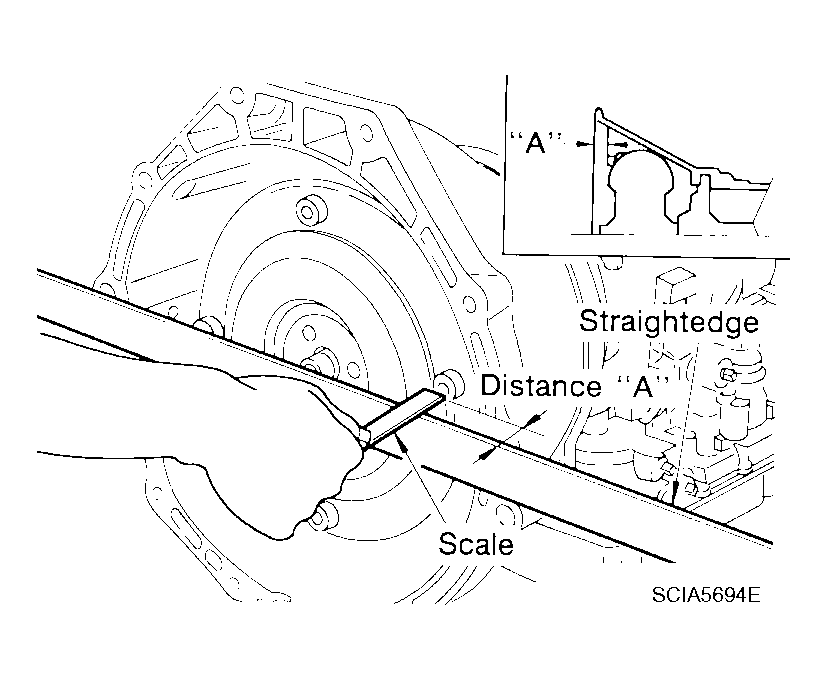

3. Measure distance "A" to make sure that torque converter is in proper position.
Distance "A": 25.0 mm (0.98 in) or more

Fig 28: Measuring Distance "A"
Courtesy of NISSAN MOTOR CO., U.S.A.
