Remote Keyless Entry Receiver System Check

Check signal voltage waveform between BCM connector M18 terminal 20 and ground using an oscilloscope.

Condition:

Keyfob buttons released :  Refer to , "TERMINALS AND REFERENCE VALUE FOR BCM "

Keyfob buttons pressed :  Refer to , "TERMINALS AND REFERENCE VALUE FOR BCM "

Fig 1: Checking Keyless Entry Receiver Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Remote keyless entry receiver signal power supply, ground and signal circuits are OK. Replace BCM. Refer to "REMOVAL AND INSTALLATION "

NG: GO TO 2.

Check signal voltage waveform between BCM connector M18 terminal 19 and ground using an oscilloscope.

19 - Ground :  Refer to , "TERMINALS AND REFERENCE VALUE FOR BCM "

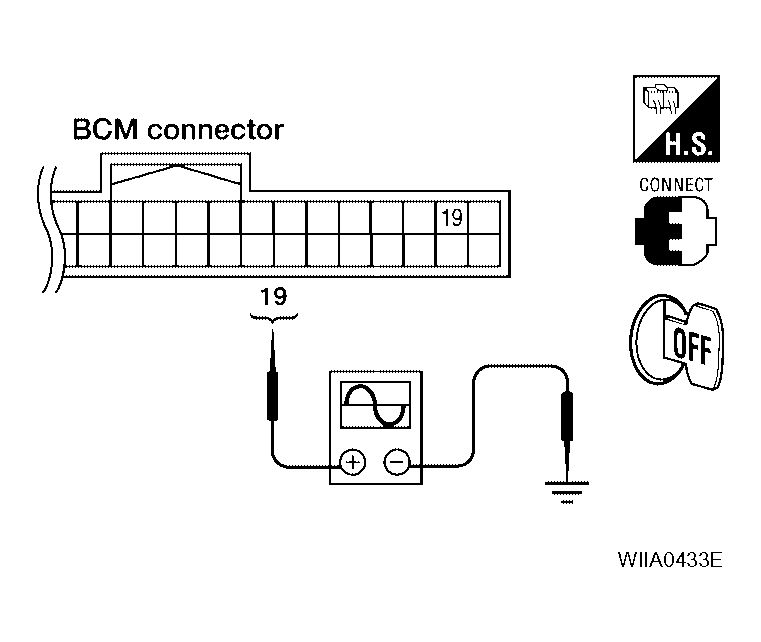

Fig 2: Checking Keyless Entry Receiver Power Supply Inspection

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION "

Check continuity between BCM connector M18 terminal 18 and ground.

18 - Ground: Continuity should exist

OK or NG

OK: GO TO 4.

NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION "

Fig 3: Checking Keyless Entry Receiver Ground Circuit Inspection (BCM)

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect remote keyless entry receiver and BCM connectors.
2. Check continuity between remote keyless entry receiver connector M120 terminals 1, 2, 4 and BCM connector M18 terminals 18, 19, 20.

   1 - 18: Continuity should exist

   2 - 20: Continuity should exist

   4 - 19: Continuity should exist

3. Check continuity between remote keyless entry receiver terminals 1, 2 and 4 and ground.

   1 - Ground: Continuity should not exist

   2 - Ground: Continuity should not exist

   4 - Ground: Continuity should not exist

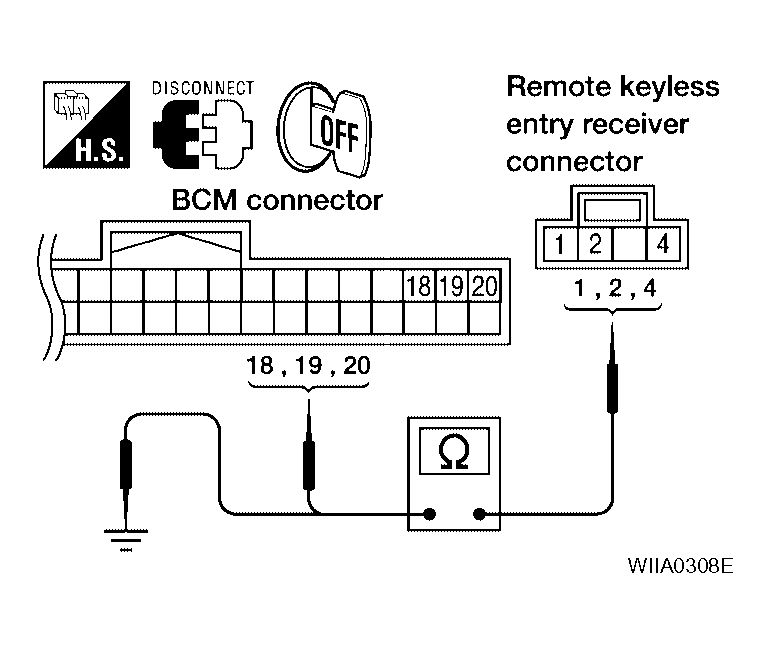

   Fig 4: Checking Harness Inspection Between BCM And Remote Keyless Entry Receiver

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace remote keyless entry receiver.

NG: Repair or replace the harness between the remote keyless entry receiver and BCM.
