Terminals and Reference Value for Combination Meter
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR TERMINAL VOLTAGE REFERENCE - COMBINATION METER
| Terminal | Wire color | Item | Condition | Reference value | |
|---|---|---|---|---|---|
| Ignition switch | Operation or condition | ||||
| 1 | B | Ground | ON | - | Approx. 0 V |
| 4 | L | CAN H | - | - | - |
| 5 | P | CAN L | - | - | - |
| 7 | W/B | Fuel level sensor signal | - | - | Refer to "FUEL LEVEL SENSOR UNIT ". |

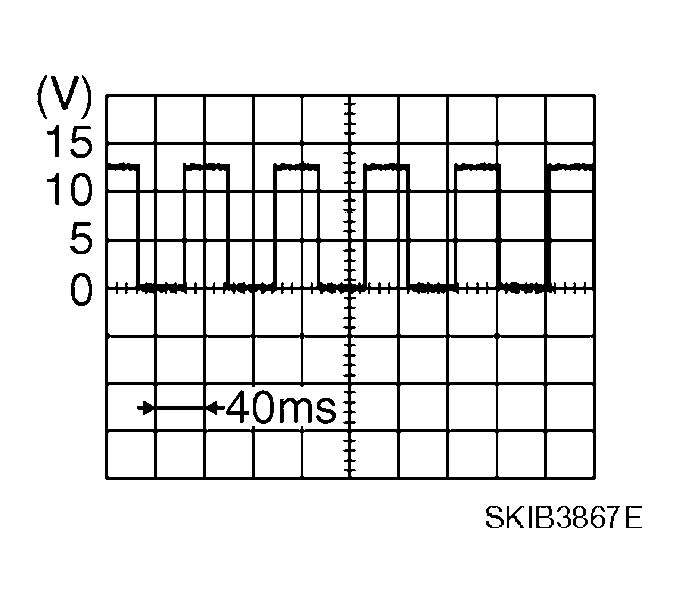

| 13 | W/G | Vehicle speed signal (8-pulse) | ON | Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)] |
NOTE:
Maximum voltage may be 5 V due to specifications (connected units).
|
| 14 | W/G | Vehicle speed signal (2-pulse) | ON | Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)] |
NOTE:
Maximum voltage may be 5 V due to specifications (connected units).
|
| 18 | LG | ACC power supply | ACC | - | Battery voltage |
| 21 | R/W | Battery power supply | OFF | - | Battery voltage |
| 22 | G/Y | Ignition power supply | ON | - | Battery voltage |
| 23 | |||||
| 24 | B | Ground | ON | - | Approx. 0 V |
| 25 | |||||
