Special Service Tools

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS DESCRIPTION

Tool number (Kent-Moore No.) Tool name Description

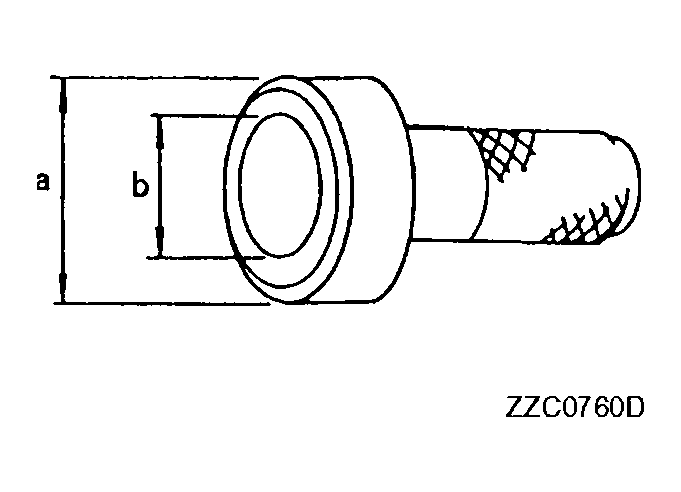

ST3072000 (J-25405) Drift
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.19 in) dia.
G04122005
 Installing rear sensor rotor.
ST27863000 ( - ) Drift
a: 74.5 mm (2.93 in) dia.
b: 62.5 mm (2.46 in) dia.
G04122006
 Installing rear sensor rotor.

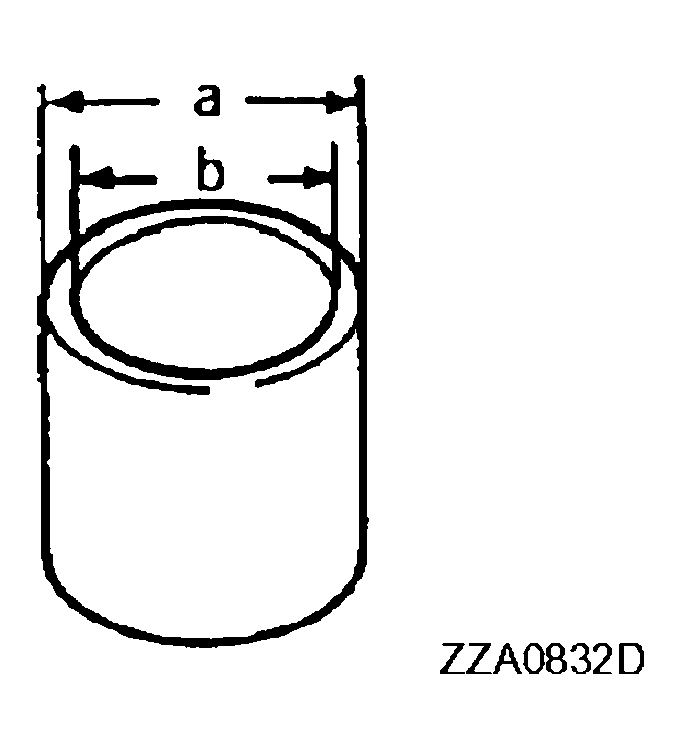

KV40104710 ( - ) Drift
a: 76.3 mm (3.00 in) dia.
b: 67.9 mm (2.67 in) dia.
G04122007
 Installing rear sensor rotor.
