Unlock Warning Switch: Removal
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE STEERING COLUMN COVER
- Remove the 2 screws, steering column cover lower and steering column cover upper.
HINT:
- Tilt the steering column assembly to the lowermost position when removing the steering column cover upper.
- Tilt it to the uppermost position when removing the steering column cover lower.
- REMOVE UNLOCK WARNING SWITCH ASSEMBLY
- Disconnect the unlock warning switch connector from the ignition switch.

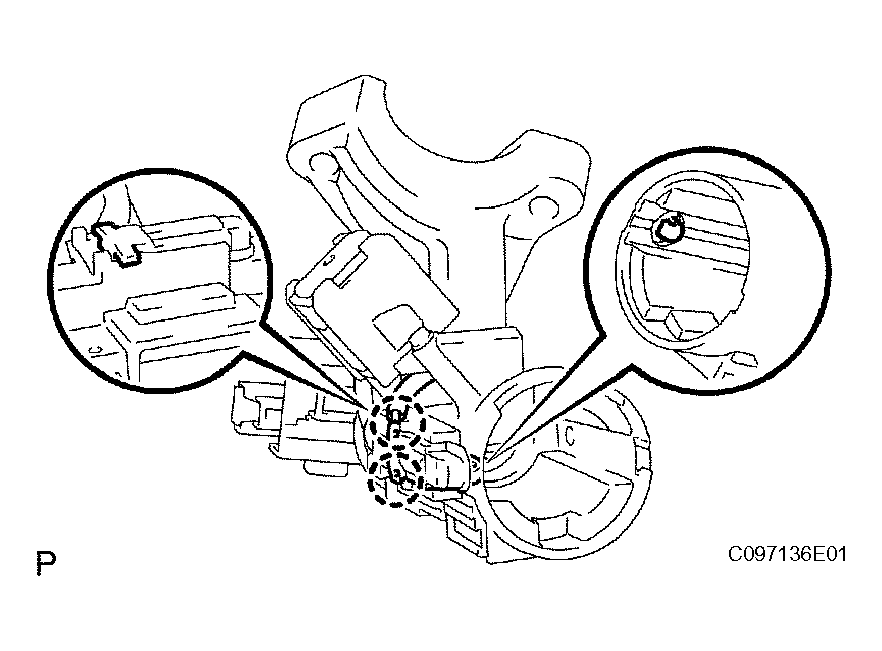

- Remove the unlock warning switch assembly by pushing up on the center part and disengaging the 2 claws.
- Manual transaxle:
Remove the clamp from the steering column upper bracket assembly.
- Automatic transaxle:
Disengage the secondary locking device.
- Automatic transaxle:
Using a screwdriver, disengage the locking lug of terminals 3 and 4, and pull the terminals out from the unlock warning switch assembly connector rear side.
