Sliding Roof Switch Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL MAP LIGHT ASSEMBLY
1. Connect the map light connector.
2. Attach the 3 clips to install the light.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

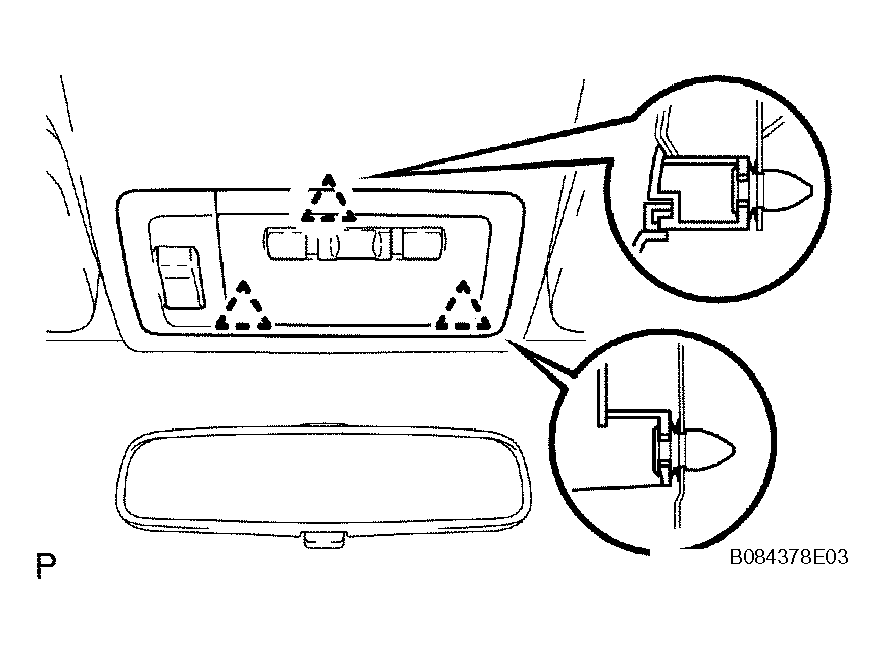

Fig 1: Installing Map Light Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
