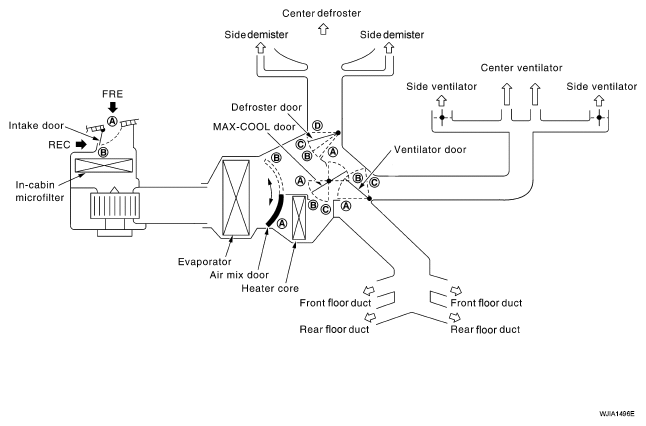

Fig 1: Air Conditioner Control System Switches And Control Function Diagram

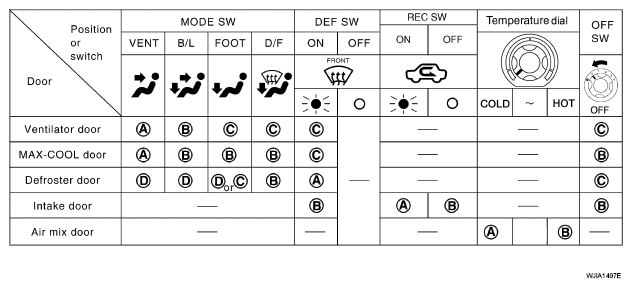

Fig 2: Air Conditioner Control System Switches And Control Function Chart
