Section 2136 (Automatic Transmission): Disassembly: Disassembly

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Drain ATF through drain plug.
Remove torque converter from transaxle case by holding it firmly and turning while pulling straight out.

Fig 1: Identifying Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove A/T fluid level gauge.
Remove A/T fluid charging pipe.
Remove O-ring from A/T fluid charging pipe.
Remove air breather hose.
Remove fluid cooler tube.

Fig 2: Identifying A/T Fluid Charging Pipe
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove turbine revolution sensor.
CAUTION: Be careful not to damage the turbine revolution sensor and transaxle case.

Fig 3: Identifying Turbine Revolution Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove revolution sensor.
CAUTION: Be careful not to damage the revolution sensor and transaxle case.

Fig 4: Identifying Revolution Sensor Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove nut and range lever.

Fig 5: Identifying Range Lever In Manual Valve Lever Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Pry off the lock washer using suitable tool.

Fig 6: Bending Lock Washer
Courtesy of NISSAN MOTOR CO., U.S.A.
Loosen nut and remove lock washer.
Remove washer plate.

Fig 7: Identifying Washer Plate And Lock Washer
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove PNP switch from transaxle case.

BOLT SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	20 (0.79)	1
B	33 (1.30)	1

Fig 8: Identifying PNP Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove hexagon bolt.
Remove ATF cooler assembly, washer and spring washer.
Remove O-rings from the ATF cooler assembly.

Fig 9: Identifying O-Rings In ATF Cooler Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove side cover.
CAUTION: Be careful not to damage side cover and transaxle case.

Fig 10: Identifying Side Cover In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Side Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

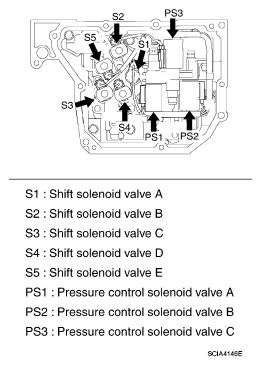

Disconnect solenoid connectors.
CAUTION: Be careful not to damage connector.

Fig 12: Connecting Solenoid Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove sensor clamp bolt.

Fig 13: Identifying Sensor Clamp Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove sensor clamp and A/T fluid temperature sensor.
CAUTION: Be careful not to damage A/T fluid temperature sensor.

Fig 14: Identifying Sensor Clamp And A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove suction cover bolts.

Fig 15: Identifying Suction Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove suction cover and suction cover gasket.

Fig 16: Identifying Suction Cover
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove control valve assembly bolts from transaxle case.

BOLT SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	55 (2.17)	2
B	50 (1.97)	2
C	16 (0.63)	2

Fig 17: Identifying Control Valve Assembly Bolts Identifying Location

Courtesy of NISSAN MOTOR CO., U.S.A.

While holding control valve assembly, disconnect parking lock rod sub assembly from manual valve lever sub assembly and remove control valve assembly.
NOTE: Shift position is "N".

Fig 18: Identifying Control Valve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove governor apply gaskets.

Fig 19: Identifying Governor
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove transmission wire.
CAUTION: Be careful not to damage solenoid connectors and A/T fluid temperature sensor.

Fig 20: Identifying Terminal Cord Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump assembly bolts from transaxle case.

Fig 21: Identifying Oil Pump Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: Identifying Oil Pump Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump assembly using Tools.
Tool numbers : ST33290001 (J-34286)

Fig 23: Identifying Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil seal from oil pump assembly using suitable tool.
CAUTION: Be careful not to scratch oil pump assembly.

Fig 24: Identifying Oil Seal From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove one-way clutch outer race sub assembly.
Remove thrust washer.

Fig 25: Identifying One-Way Clutch Outer Race Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove transaxle housing bolts from transaxle case.

Fig 26: Identifying Transaxle Housing In Transaxle Case

Courtesy of NISSAN MOTOR CO., U.S.A.

BOLT SPECIFICATION

Bolt symbol

Length mm (in)

Number of bolts

30 (1.18)

35 (1.38)

45 (1.77)

D⁽¹⁾

⁽¹⁾

Torx bolt

Fig 27: Identifying Transaxle Housing And Transaxle Case Bolts Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove transaxle housing using suitable tool.

Fig 28: Identifying Transaxle Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove governor apply gasket.
Remove seal ring.

Fig 29: Identifying Seal Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove tube clamp.

Fig 30: Identifying Tube Clamp Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential gear lube apply tube using suitable tool.
CAUTION:
- Be careful not to bend or damage differential gear lube apply tube.
- Be careful not to damage transaxle housing.
Fig 31: Identifying Differential Gear Lube Apply Tube
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil reservoir plate.

Fig 32: Identifying Oil Reservoir Plate Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil cleaner magnets from oil reservoir plate.

Fig 33: Identifying Oil Cleaner Magnets
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential gear assembly.

Fig 34: Identifying Differential Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil strainer sub assembly.

Fig 35: Identifying Oil Strainer Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil reservoir plate.

Fig 36: Identifying Oil Reservoir Plate Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove tube clamp.

Fig 37: Identifying Tube Clamp Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove U/D brake apply tube sub assembly using suitable tool.
CAUTION:
- Be careful not to bend or damage U/D brake apply tube sub assembly.
- Be careful not to damage transaxle case.
Fig 38: Identifying U/D Brake Apply Tube Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect manual detent spring sub assembly from manual valve lever sub assembly using suitable tool.

Fig 39: Connecting Manual Detent Spring Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual valve lever sub assembly from parking lock rod sub assembly.

Fig 40: Identifying Manual Valve Lever Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking lock rod sub assembly.

Fig 41: Identifying Parking Lock Rod Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove bolts for manual detent spring sub assembly.

BOLT SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	16.7 (0.657)	1
B	14.0 (0.551)	1

Fig 42: Identifying Manual Detent Spring Sub Assembly Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove manual detent spring sub assembly.

Fig 43: Identifying Manual Detent Spring Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking lock pawl shaft and torsion spring No.1.

Fig 44: Identifying Parking Lock Pawl Shaft And Torsion Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking lock pawl bracket and parking lock pawl.

Fig 45: Identifying Parking Lock Pawl Bracket And Parking Lock Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking lock pin sub assembly.

Fig 46: Identifying Parking Lock Pin Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove spring guide sleeve and torsion spring No.2.

Fig 47: Identifying Spring Guide Sleeve And Torsion Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual valve oil seal using suitable tool.
CAUTION: Be careful not to damage transaxle case.

Fig 48: Identifying Manual Valve Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust needle roller bearing and thrust bearing race from U/D gear assembly.

Fig 49: Identifying Thrust Needle Roller Bearing And Thrust Bearing Race In U/D Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove U/D gear assembly.
Remove seal rings from U/D gear assembly.

Fig 50: Identifying U/D Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove U/D clutch assembly.

Fig 51: Identifying U/D Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove anchor bolt.

Fig 52: Identifying Anchor Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove U/D brake band assembly.
CAUTION: Be careful not to damage transaxle case.

Fig 53: Identifying U/D Brake Band Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove U/D RR planetary carrier assembly and thrust bearing races.
Remove U/D RR planetary ring gear sub assembly.

Fig 54: Identifying U/D Rr Planetary Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust needle roller bearing, adjust shim and thrust bearing race from U/D RR planetary ring gear sub assembly.

Fig 55: Identifying Thrust Needle Roller Bearing Adjust Shim And Thrust Bearing Race
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring using suitable tool.

Fig 56: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove U/D brake damper assembly.
Remove O-rings from U/D brake damper assembly.

Fig 57: Identifying O-Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove U/D brake piston assembly and compression spring.
Remove O-ring from U/D brake piston assembly.

Fig 58: Identifying Compression Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove transaxle case cover bolts from transaxle case.

Fig 59: Identifying Transaxle Case Cover Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

BOLT SPECIFICATION

Bolt symbol

Length mm (in)

Number of bolts

30 (1.18)

45 (1.77)

48 (1.89)

D⁽¹⁾

⁽¹⁾

Stud bolt

Fig 60: Locating Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Tap transaxle case cover using suitable tool.
CAUTION: Be careful not to damage transaxle case cover.

Fig 61: Identifying Transaxle Case Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove transaxle case cover.

Fig 62: Identifying Transaxle Case Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove governor apply gaskets from transaxle case.

Fig 63: Identifying Governor
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove tube clamp.

Fig 64: Identifying Tube Clamp Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove transaxle lube apply tube using suitable tool.
CAUTION:
- Be careful not to bend or damage transaxle lube apply tube.
- Be careful not to damage transaxle case.

  Fig 65: Identifying Transaxle Lube Apply Tube
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove forward and direct clutch assembly.
Remove thrust bearing race, thrust needle roller bearing and seal ring from forward and direct clutch assembly.

Fig 66: Measuring Inner Diameter Of Planetary Sun Gear Sub Assembly Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove planetary sun gear sub assembly and thrust needle roller bearings.

Fig 67: Measuring Inner Diameter Of Planetary Sun Gear Sub Assembly Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a bore gauge, measure the inner diameter of planetary sun gear sub assembly bushing.
CAUTION: Measure at different places and take an average. If it is greater than the maximum, replace it with a new planetary sun gear sub assembly.

Standard :22.200 - 22.226mm (0.8740 - 0.8750in)

Allowable limit :22.276 (0.8770in)

Fig 68: Identifying Forward And Direct Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 69: Identifying Planetary Sun Gear Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove RR planetary ring gear assembly.
Remove thrust needle roller bearing and thrust bearing race from RR planetary ring gear assembly.

Fig 70: Identifying RR Planetary Ring Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove planetary gear assembly.
Remove thrust bearing race from planetary gear assembly.

Fig 71: Identifying Planetary Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a bore gauge, measure the inner diameter of planetary gear assembly bushing.
CAUTION: Measure at different places and take an average. If it is greater than the maximum, replace it with a new planetary gear assembly.

Standard :30.056 - 30.082mm (1.1833 - 1.1843in)

Allowable limit :30.132 (1.1863in)

Fig 72: Measuring Inner Diameter Of Planetary Gear Assembly Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust bearing.

Fig 73: Identifying Thrust Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring using suitable tool.

Fig 74: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 1st and reverse brake flanges, 1st and reverse brake discs and 1st and reverse brake plates.
- INSPECTION
- Check that the sliding surface of discs are not worn and burnt.
  If necessary, replace them.
CAUTION: Replace new discs by soaking them at least 2 hours in A/T fluid.

Fig 75: Identifying 1st And Reverse Brake Flanges
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove FR planetary ring gear assembly with one-way clutch No.2.

Fig 76: Identifying FR Planetary Ring Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the FR planetary ring gear assembly turns freely counterclockwise and locks clockwise.

Fig 77: Checking FR Planetary Ring Gear Assembly Rotation
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring using suitable tool.

Fig 78: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring.

Fig 79: Identifying Return Spring On 1st And Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
While pushing the piston by hand, apply compressed air (4Kg/ cm² ) into the oil passage of transaxle case as shown and remove 1st and reverse brake piston.

Fig 80: Identifying 1st And Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-rings from 1st and reverse brake piston.

Fig 81: Identifying 1st And Reverse Brake Piston In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust bearing and thrust bearing race from counter drive gear sub assembly.

Fig 82: Applying Petroleum Jelly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring using suitable tool.

Fig 83: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove counter drive gear sub assembly.

Fig 84: Identifying Counter Drive Gear Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side oil seal from transaxle case and transaxle housing using suitable tool.
CAUTION: Be careful not to scratch transaxle case and transaxle housing.

Fig 85: Identifying Differential Side Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 86: Identifying Differential Side Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove outer race and adjust shim from transaxle case.
Tool number : ST30612000 (J-25742-2)

Fig 87: Identifying Outer Race And Adjust Shim From Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust roller bearing from transaxle housing.
Tool number : ST33290001 (J-34286)

Fig 88: Identifying Thrust Roller Bearing From Transaxle Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
