Symptom: Cannot Refuel/Fuel Odor From The Fuel Filler Opening Is Strong While Refueling.

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
The weight should be less than 2.1 kg (4.6 lb).

OK or NG
1. OK: GO TO 2.
2. NG: GO TO 3.
CHECK IF EVAP CANISTER SATURATED WITH WATER
Does water drain from the EVAP canister?

Yes or No
1. YES: GO TO 3.
2. NO: GO TO 6.

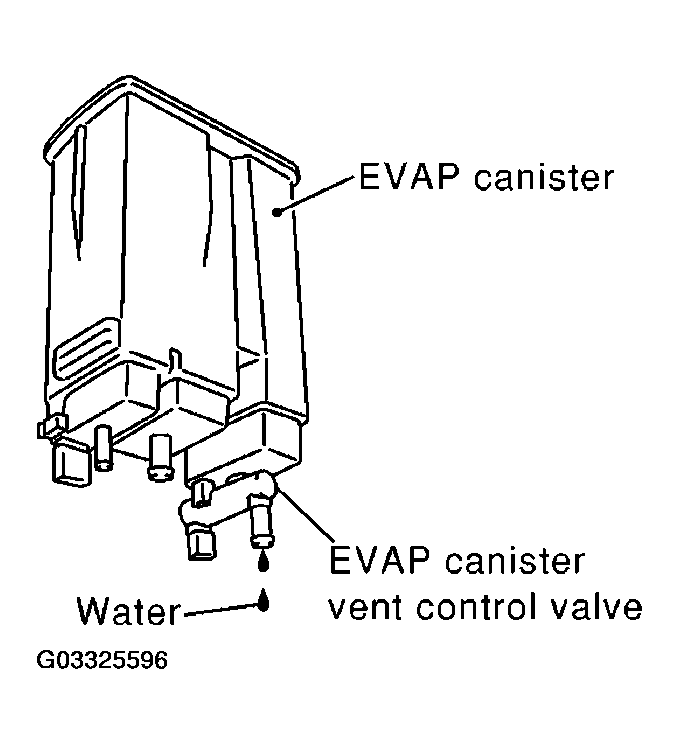

  Fig 1: Checking Water Draining From EVAP Canister
  Courtesy of NISSAN MOTOR CO., U.S.A.
REPLACE EVAP CANISTER
Replace EVAP canister with a new one.
1. : GO TO 4.
CHECK WATER SEPARATOR
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK: GO TO 5.
2. NG: Clean or replace water separator.
DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and water separator for clogging or poor connection.
1. : Repair or replace EVAP hose.
CHECK VENT HOSES AND VENT TUBES
Check hoses and tubes between EVAP canister and refueling EVAP vapor cut valve for clogging, kink, looseness and improper connection.

OK or NG
1. OK: GO TO 7.
2. NG: Repair or replace hoses and tubes.
CHECK FILLER NECK TUBE
Check recirculation line for clogging, dents and cracks.

OK or NG
1. OK: GO TO 8.
2. NG: Replace filler neck tube.
CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK: GO TO 9.
2. NG: Replace refueling EVAP vapor cut valve with fuel tank.
CHECK FUEL FILLER TUBE
Check filler neck tube and hose connected to the fuel tank for clogging, dents and cracks.

OK or NG
1. OK: GO TO 10.
2. NG: Replace fuel filler tube.
CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.

OK or NG
1. OK: GO TO 11.
2. NG: Repair or replace one-way fuel valve with fuel tank.
CHECK ONE-WAY FUEL VALVE-II
1. Make sure that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as follows.
  When a stick is inserted, the valve should open, when removing stick it should close.

  Do not drop any material into the tank .
OK or NG
1. OK: INSPECTION END
2. NG: Replace fuel filler tube or replace one-way fuel valve with fuel tank.

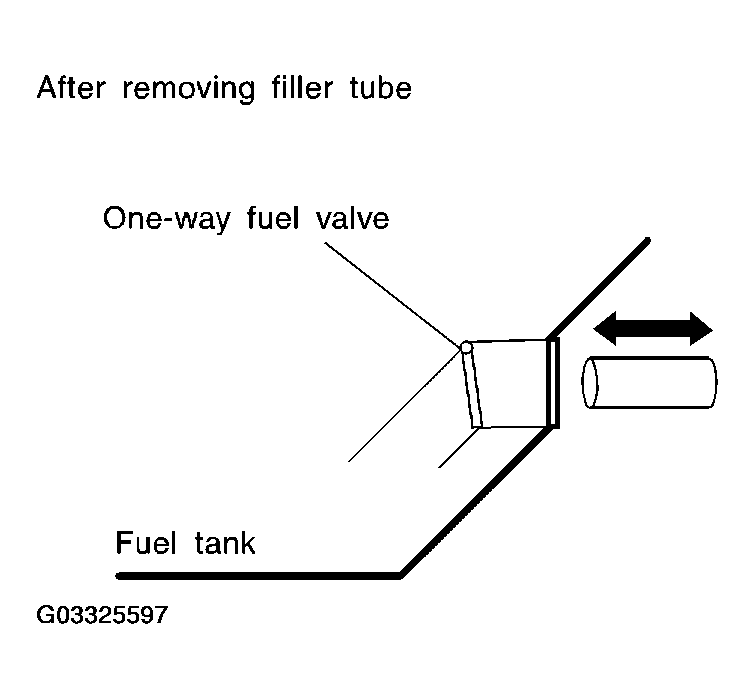

  Fig 2: Checking One-Way Fuel Valve-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
