Passenger-side AIR Bag Module

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Remove passenger-side air bag module from vehicle and place it on a clean, dry, work bench with trim cover facing upward.
  2. Firmly secure Air Bag Module Bracket (J41246) in a vise. Install two Deployment Brackets (J39401-100) to air bag module bracket. Attach passenger-side air bag module to deployment brackets. See Fig 1 .
  3. Position a fully charged 12-volt battery at least 16 feet (4.9 m) from deployment area. Connect Deployment Tool (J38381) to air bag module using Deployment Tool Adapter (J38381-80). Connect Red deployment tool clip to positive battery terminal and Black deployment tool clip to negative battery terminal.
  4. Ensure deployment tool power light glows Green. If deployment tool power light glows Red, reverse battery connections and recheck light. Ensure no one is within 16 feet (4.9 m) of air bag module. Press deployment tool button to deploy passenger-side air bag module.

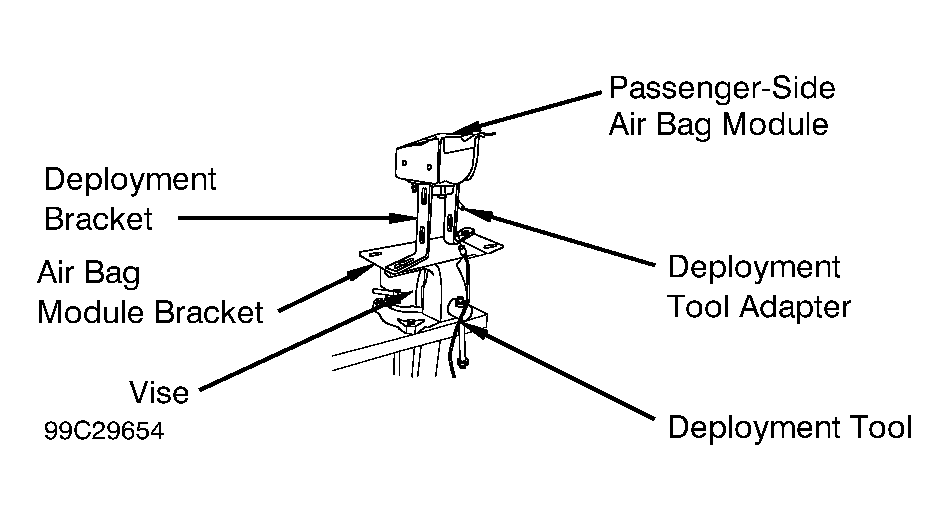

Fig 1: Preparing To Deploy Passenger-side Air Bag Module
G99C29654Courtesy of NISSAN MOTOR CO., U.S.A.
