Disassembly and Assembly: Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Apply pressure using Tool.
1. Specified pressure value: 157 kPa (1.6 kg/cm² , 23 psi)
WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp.

CAUTION: Attach a hose to the oil cooler as well (if equipped).

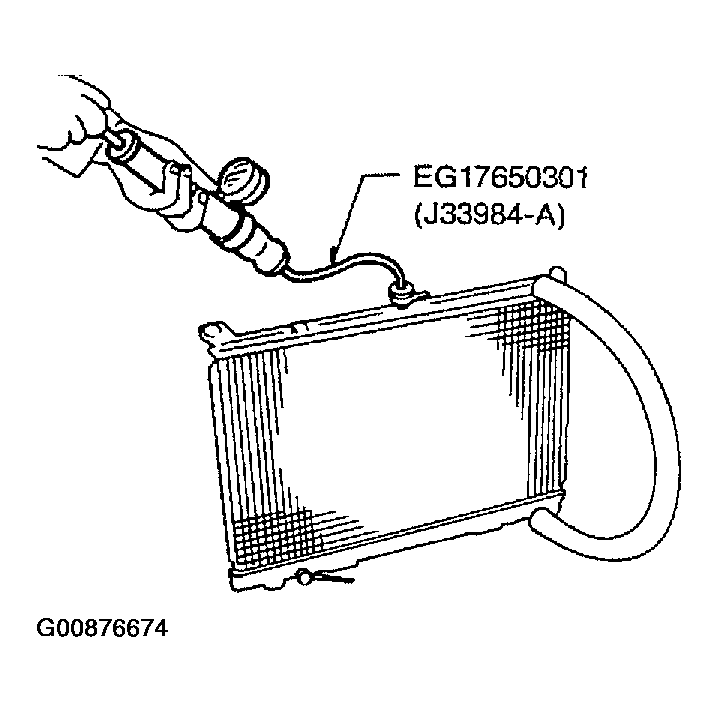

Fig 1: Pressurize Radiator Assembly To Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Place radiator in water filled tank and check for leakage.

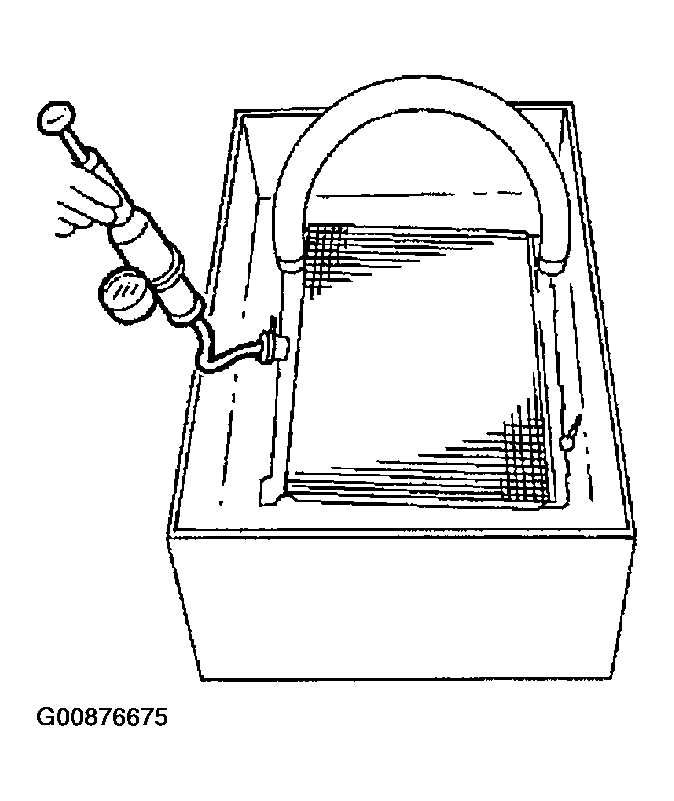

Fig 2: Place Radiator In Water Filled Tank And Check For Leakage
Courtesy of NISSAN MOTOR CO., U.S.A.
