Removal and Installation of Display Unit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to GAUGES & INSTRUMENT PANELS - COUPE/SEDAN .
  2. Remove audio unit and display unit assembly from cluster lid C. Refer to GAUGES & INSTRUMENT PANELS - COUPE/SEDAN .
  3. Remove screws (4) and remove display unit assembly from audio unit bracket.

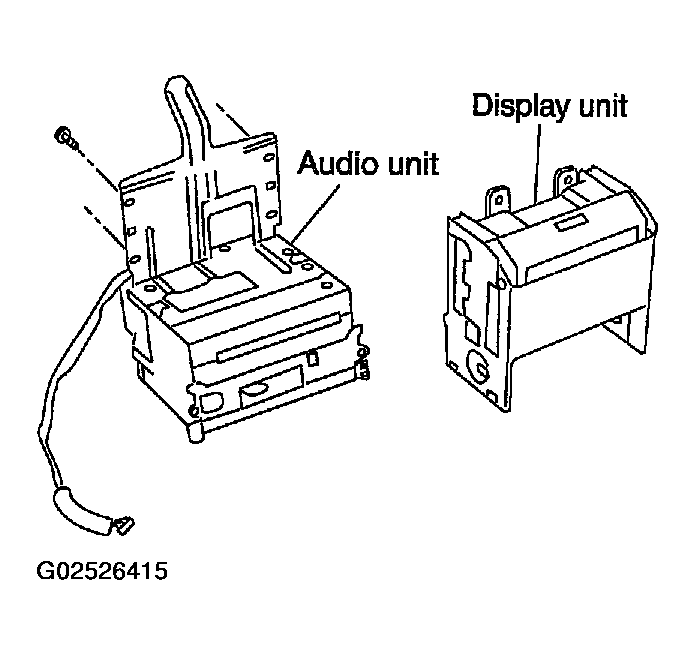

    Fig 1: Removing Display Unit Assembly From Audio Unit Bracket
    G02526415Courtesy of NISSAN MOTOR CO., U.S.A.
