Removal and Installation of NAVI Control Unit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center box assy. Refer to CENTER BOX ASSEMBLY .
  2. Remove screws (4), and remove NAVI control unit.

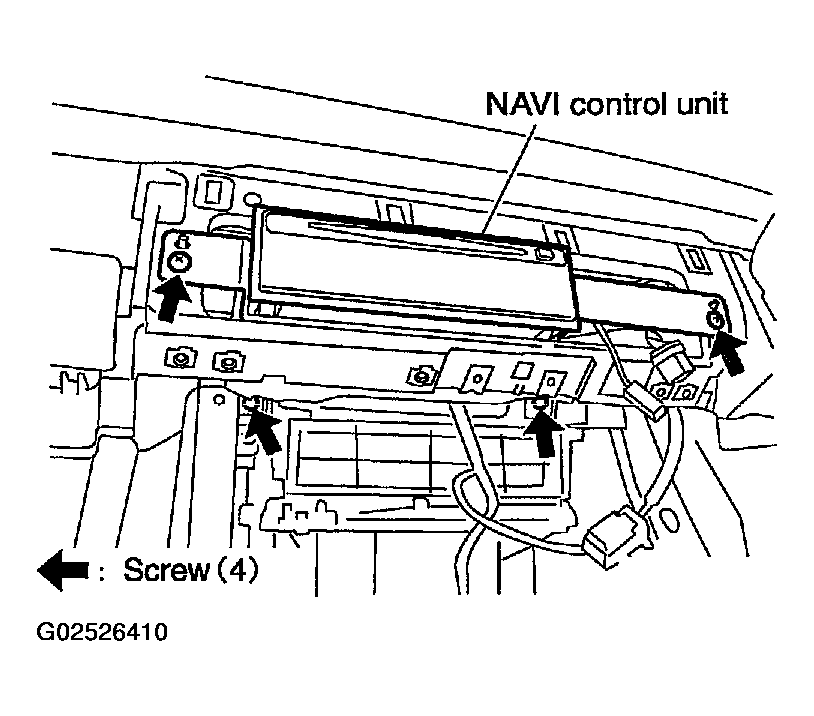

    Fig 1: Removing NAVI Control Unit
    G02526410Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4), and remove bracket.

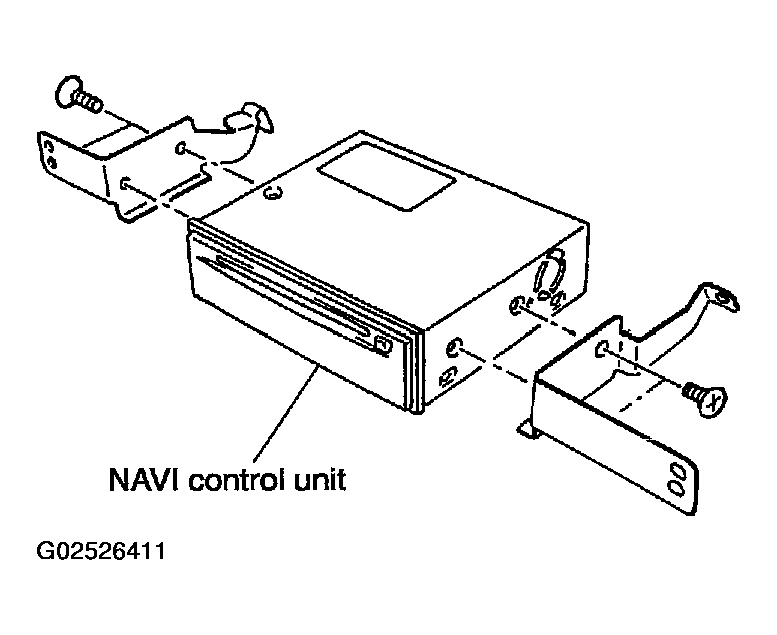

    Fig 2: Removing NAVI Control Unit Bracket
    G02526411Courtesy of NISSAN MOTOR CO., U.S.A.
