Ball Bearing

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.

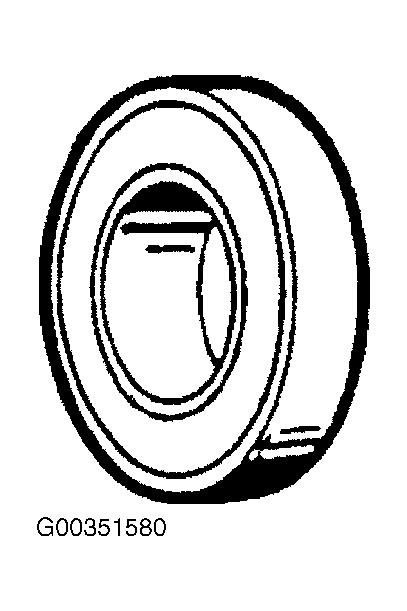

Clamp the inner race of the ball bearing with your finger, and check for sticking or play when rotating the outer race. Replace, if abnormality is found. See Fig 1 .

Fig 1: Identifying Ball Bearing

Courtesy of ISUZU MOTOR CO.

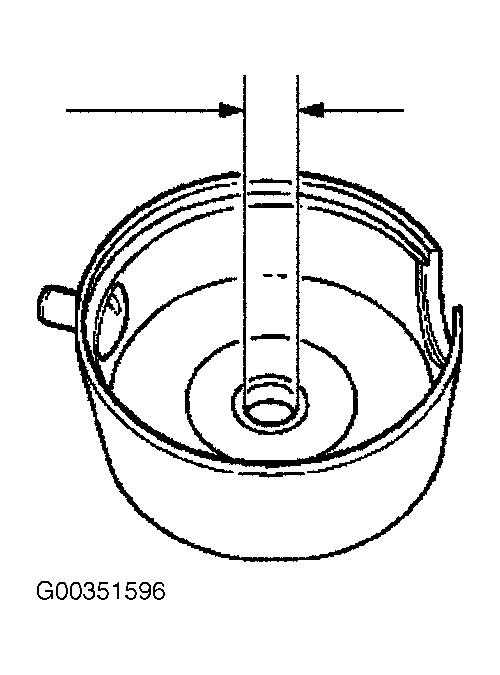

Measure inner diameter of bushing in the rear cover, and replace if it exceeds the limit. See Fig 2 . See STARTER SPECIFICATIONS .

Fig 2: Measuring Inner Diameter Of Bushing In Rear Cover

Courtesy of ISUZU MOTOR CO.

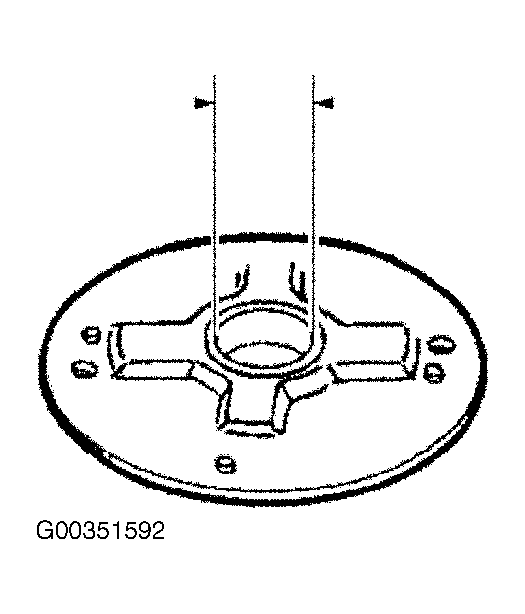

Measure inner diameter of bushing in the center bracket (P), and replace if it exceeds the limit. See Fig 3 . See STARTER SPECIFICATIONS .

Fig 3: Measuring Inner Diameter Of Bushing In Center

Courtesy of ISUZU MOTOR CO.
