Brush Holder

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between brush holder (+) (4) and base (-). Replace, if there is continuity. See Fig 1 .

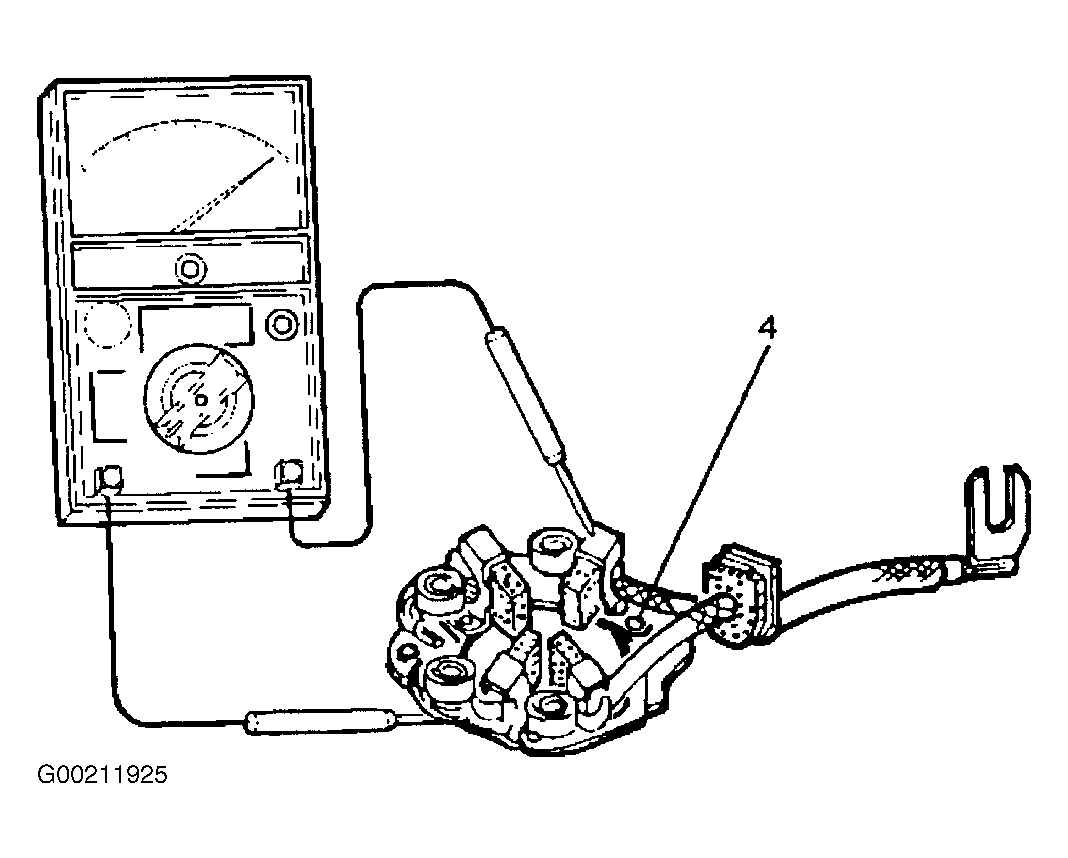

Fig 1: Checking For Continuity Between Brush Holder
G00211925Courtesy of ISUZU MOTOR CO.
