Illumination Signal Check

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Tail Lamp Operation Check
When lighting switch turned 1st or 2nd position, does tail lamp illuminate?

YES or NO
1. YES : GO TO 2.
2. NG : Go to tail lamp trouble diagnosis. Refer to Parking License Plate And Tail Lamps .
Illumination Signal Check
1. Disconnect NAVI control unit connector.
2. Check voltage between NAVI control unit and ground.

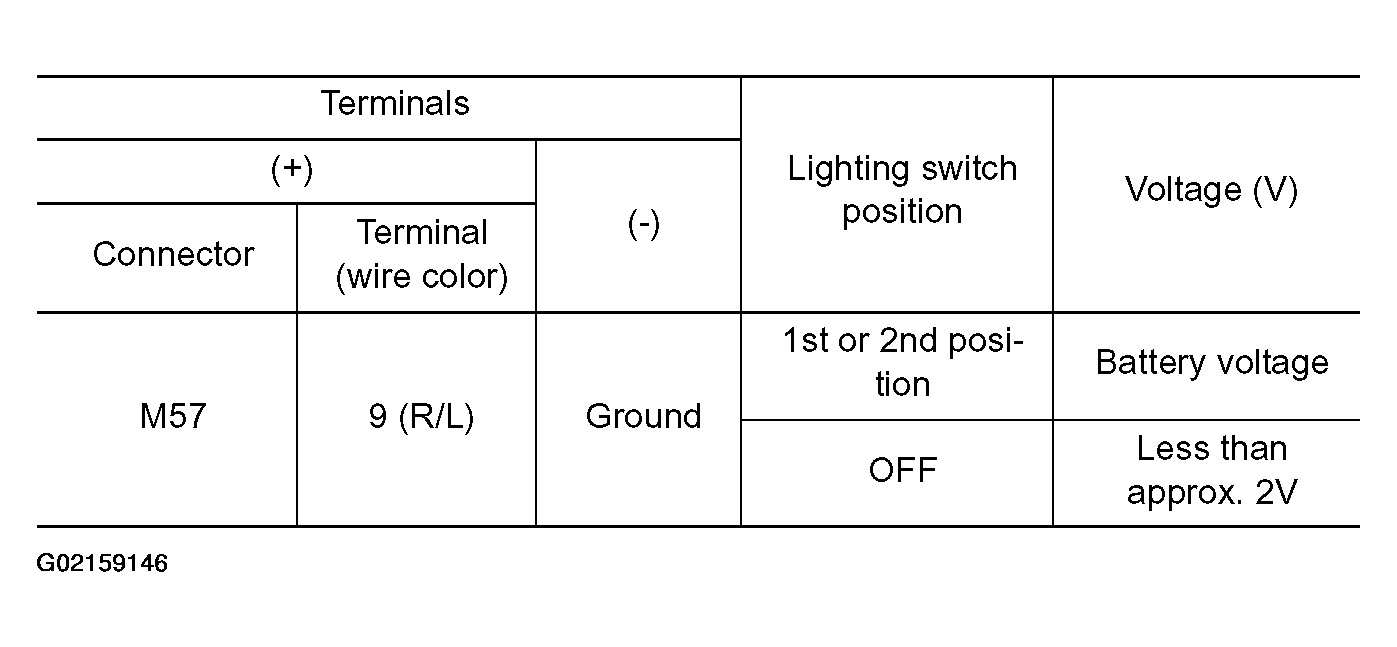

Fig 1: Voltage Checking Between NAVI Control Unit And Ground Table
Courtesy of NISSAN MOTOR CO., U.S.A.

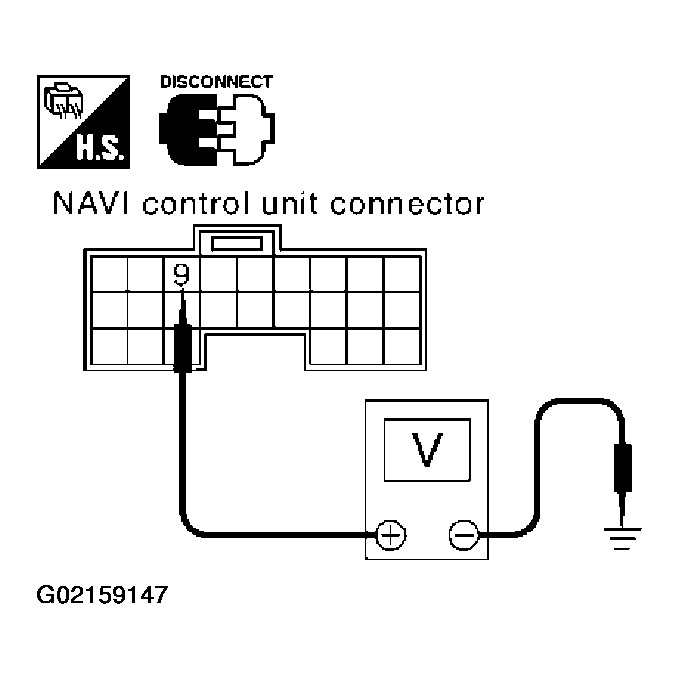

Fig 2: Checking Voltage Between NAVI Control Unit And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : Replace NAVI control unit.
2. NG : Check harness for open or short between NAVI control unit and IPDM E/R. Refer to SYSTEM WIRING DIAGRAMS article.
