Removal And Installation Of IPDM E/R

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery. Refer to REMOVAL AND INSTALLATION

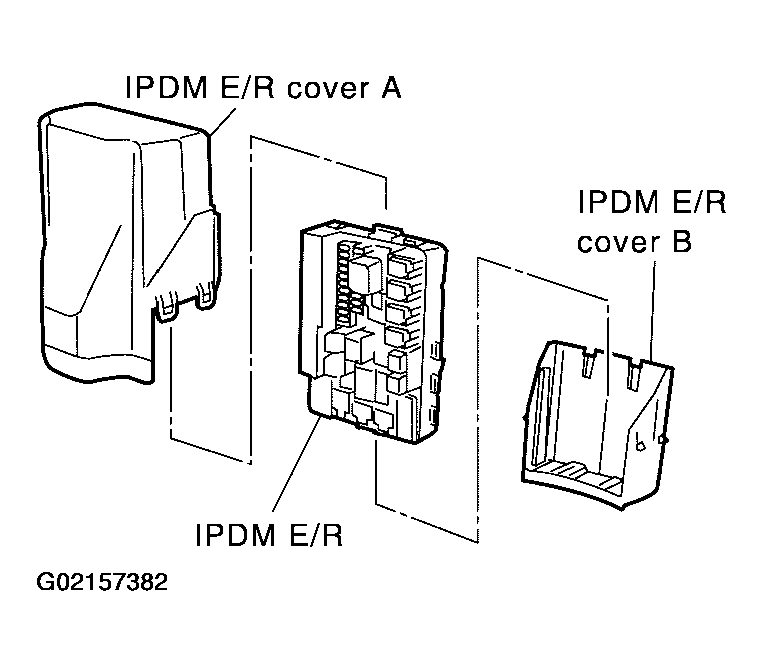

    Fig 1: Removing Covers Of IPDM E/R
    G02157382Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove IPDM E/R cover A. While pushing pawl on backside of IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/R.

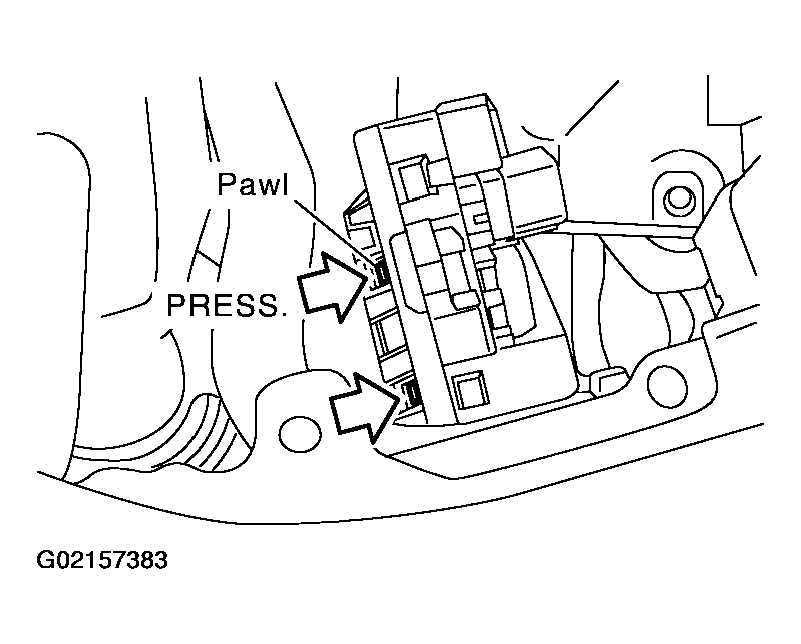

    Fig 2: Locating Pawl Pressing Direction To Remove Cover A
    G02157383Courtesy of NISSAN MOTOR CO., U.S.A.
  3. While pushing tabs on right and left side of IPDM E/R, remove IPDM E/R cover B from IPDM E/R.

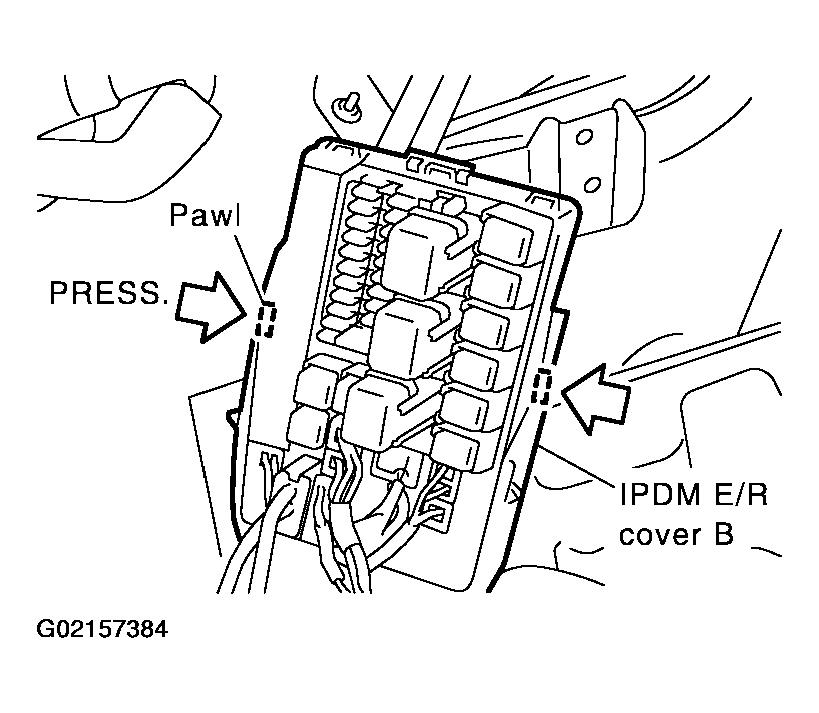

    Fig 3: Locating Pawl Pressing Direction To Remove Cover B
    G02157384Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove harness connector from IPDM E/R.
