A/T Fluid Temperature Sensor
WARNING:
This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Refer to
REMOVAL
.
Check resistance between two terminals while changing temperature. See
Fig 2

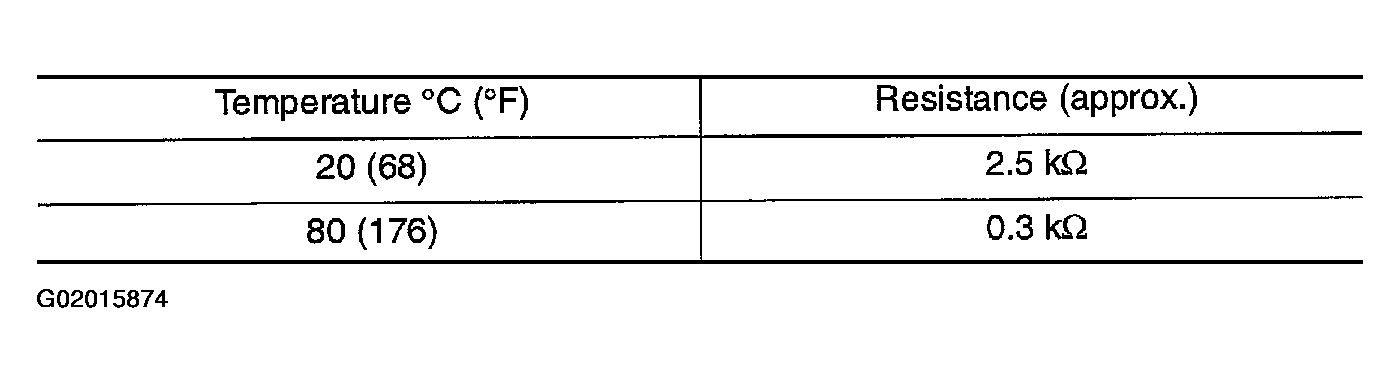

Fig 1: Automatic Transaxle Fluid Temperature Sensor Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

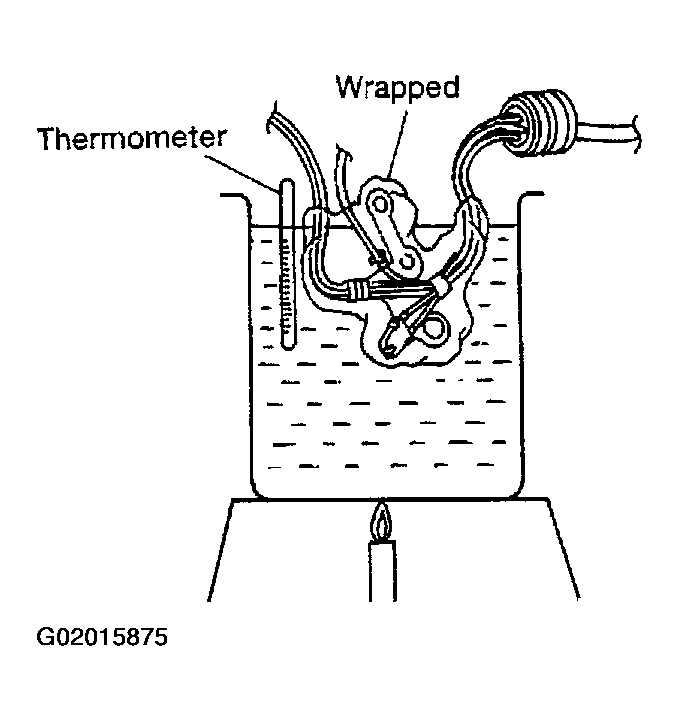

Fig 2: Checking Resistance Between Automatic Transaxle Fluid Temperature Sensor Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
