A/T Fluid Temperature Sensor

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For removal, refer to CONTROL VALVE ASSEMBLY AND ACCUMULATORS .
Check resistance between two terminals while changing temperature . See Fig 1.

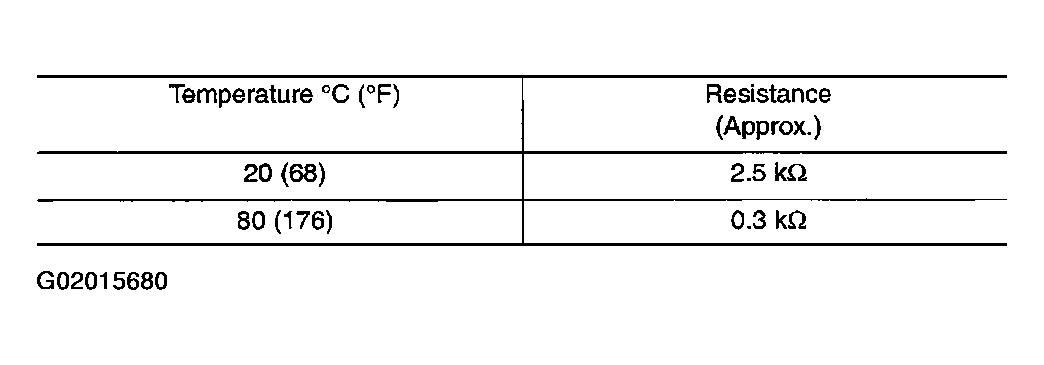

Fig 1: Temperature & Terminals Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

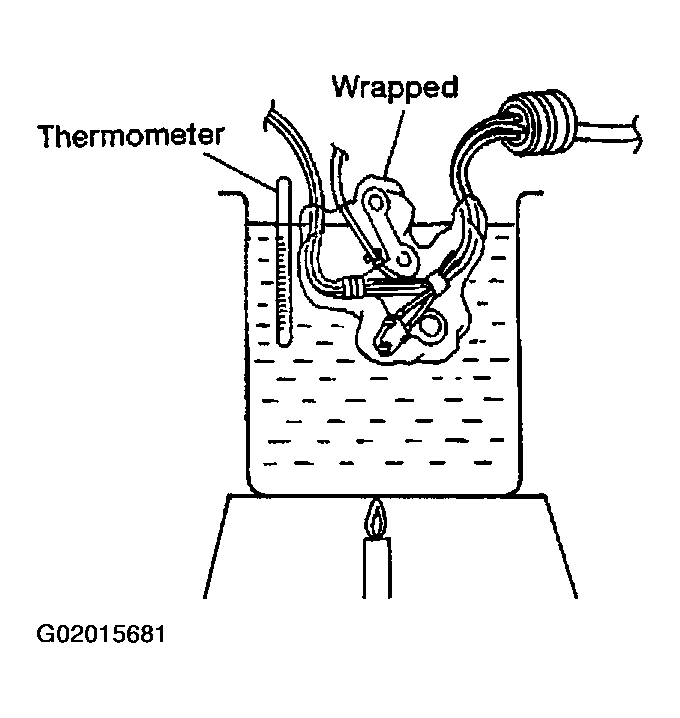

Fig 2: Checking Resistance Between Fluid Temperature Sensor Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
