Terminals and Reference Value for Audio Unit (Except Bose)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

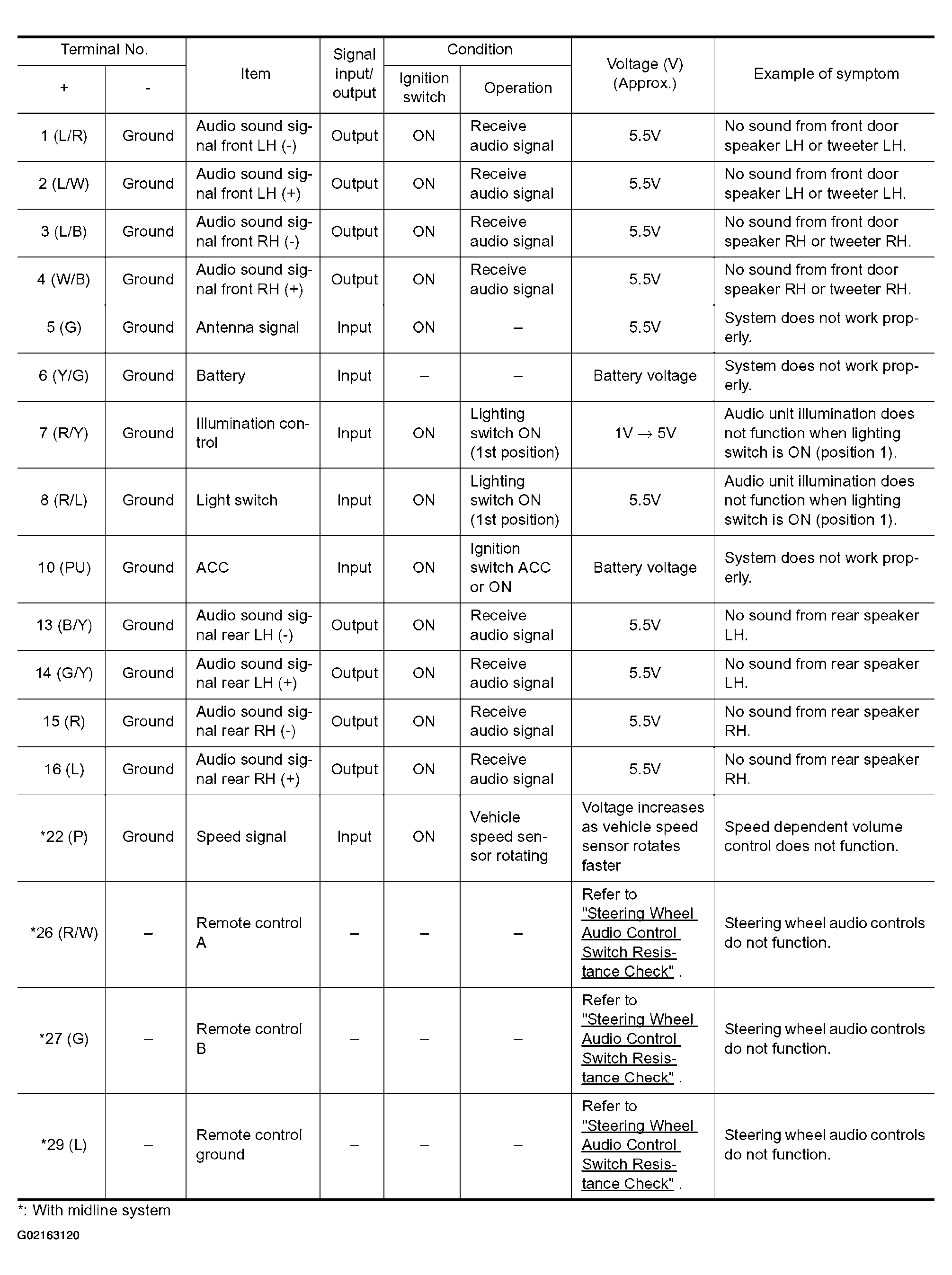

Fig 1: Audio Unit (Except Bose) Terminals And Reference Value Chart
G02163120Courtesy of NISSAN MOTOR CO., U.S.A.
