Position For Applying Liquid Gasket

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "Liquid Gasket Application Procedure" in PRECAUTIONS .

Before installation, wipe off the protruding sealant.

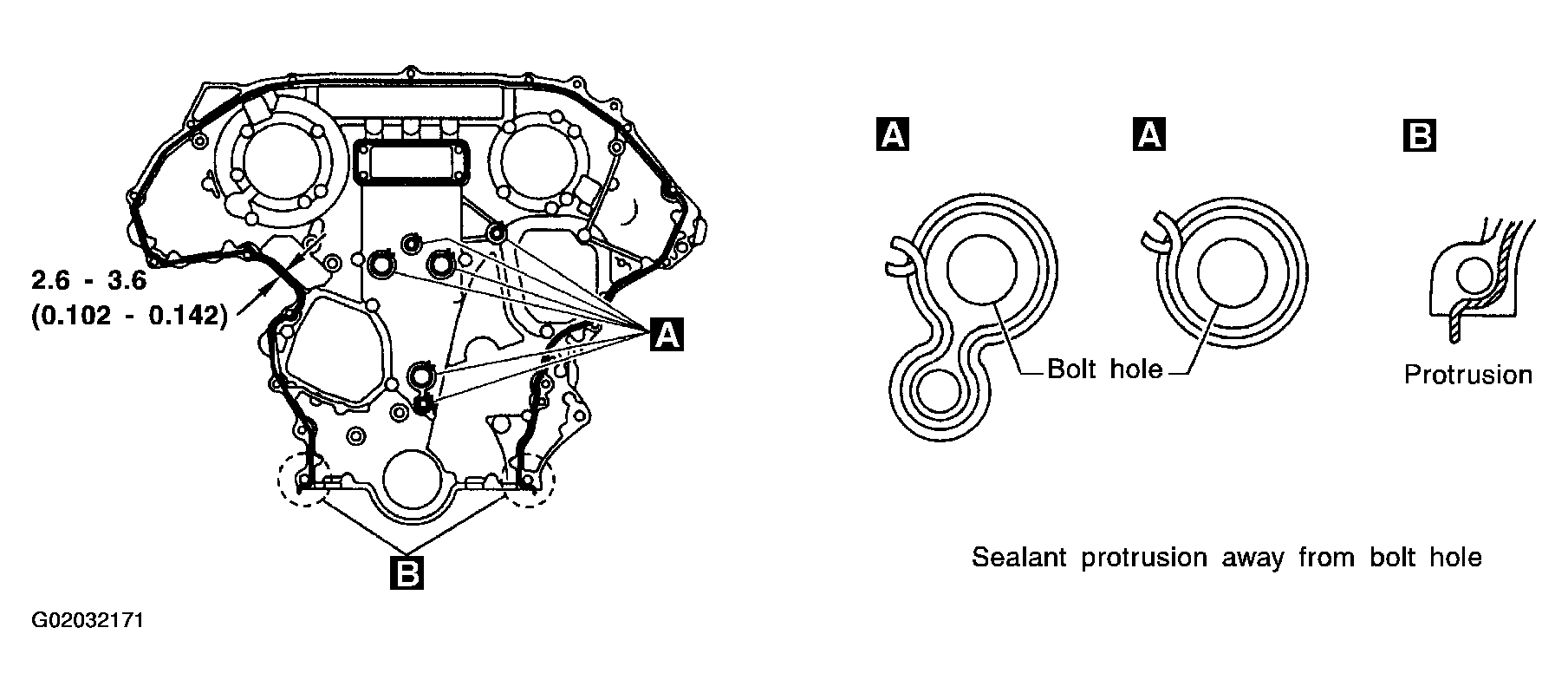

Fig 1: Identifying Front Timing Chain Case

Courtesy of NISSAN MOTOR CO., U.S.A.

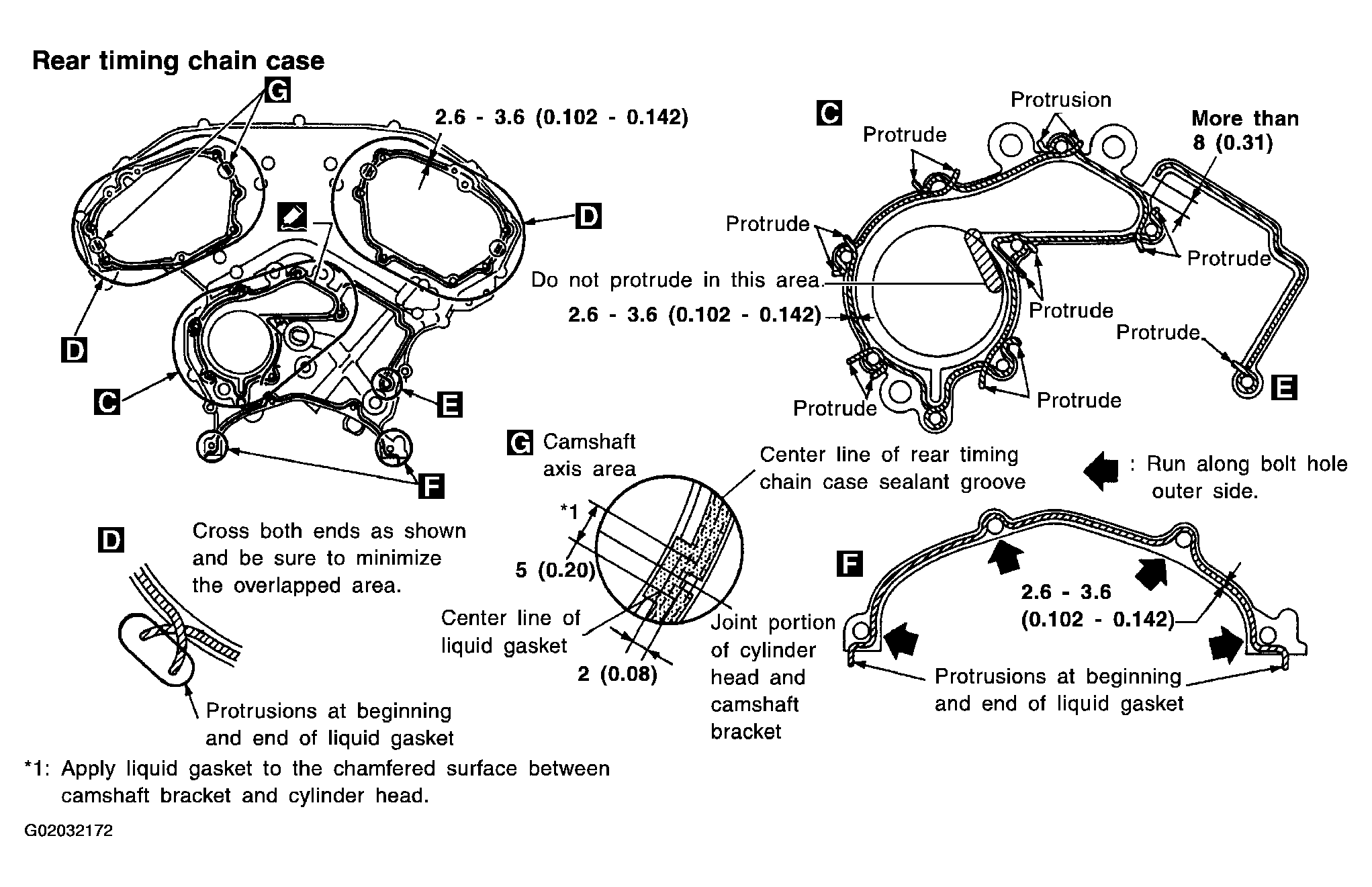

Fig 2: Identifying Rear Timing Chain Case

Courtesy of NISSAN MOTOR CO., U.S.A.

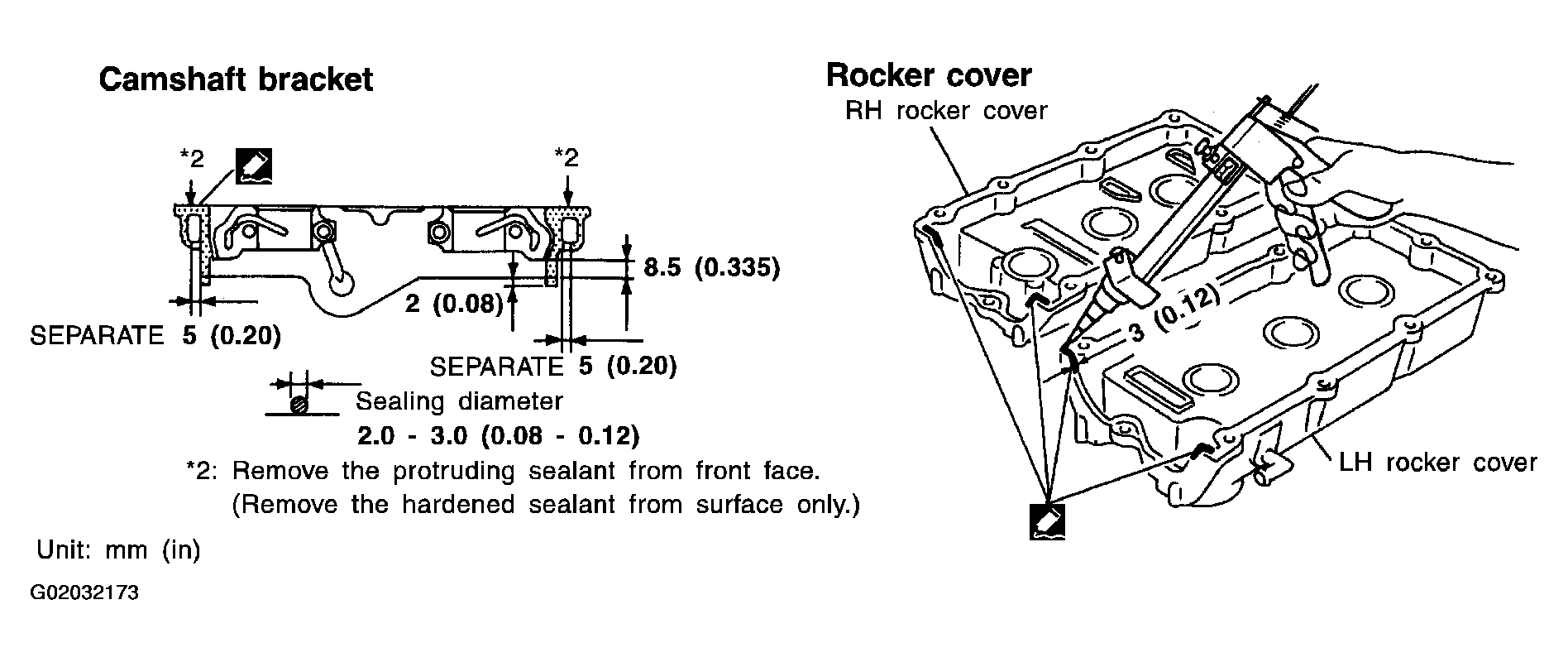

Fig 3: Identifying Camshaft Bracket And Rocker Cover

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads.
When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil.
Apply new engine oil to bolt threads and seat surfaces when installing camshaft sprockets and crankshaft pulley.
Before disconnecting fuel hose, release fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE .
Be careful not to damage sensor edges.
Do not spill engine coolant on drive belts.
