Key Unlock

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Check operation by applying battery voltage to key switch and key lock solenoid harness connector.

CAUTION: Be careful not to cause burnout of the harness.

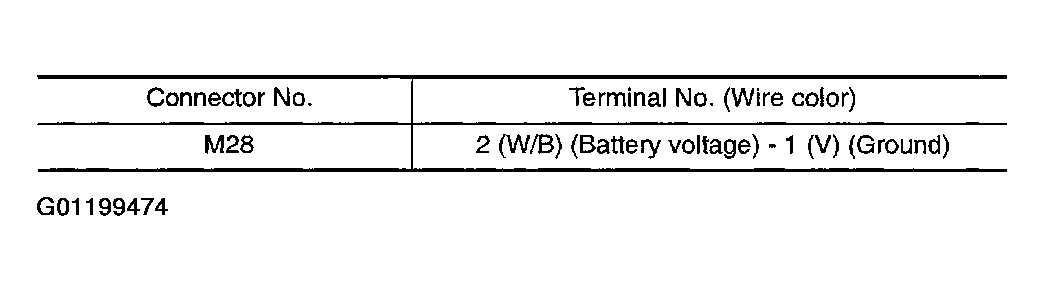

Fig 1: Key Lock Solenoid Check Table (Key Unlock)

Courtesy of NISSAN MOTOR CO., U.S.A.

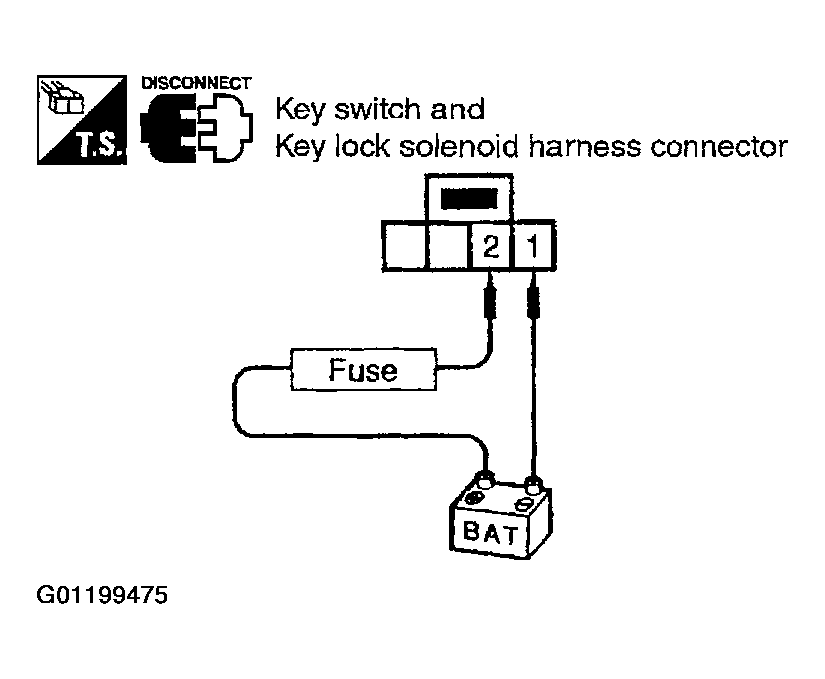

Fig 2: Checking Operation By Applying Voltage To Key Switch And Lock

Courtesy of NISSAN MOTOR CO., U.S.A.
