Stop Lamp Switch

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals of the stop lamp switch harness connector.

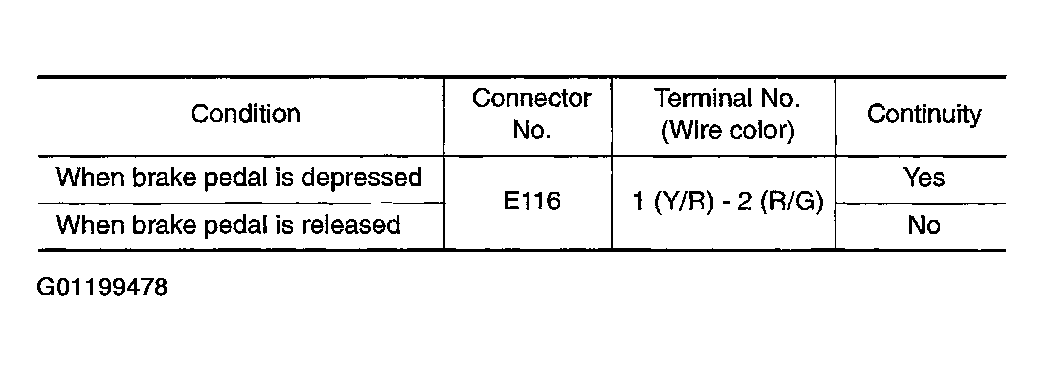

Fig 1: Stop Lamp Switch Check Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to INSPECTION AND ADJUSTMENT .

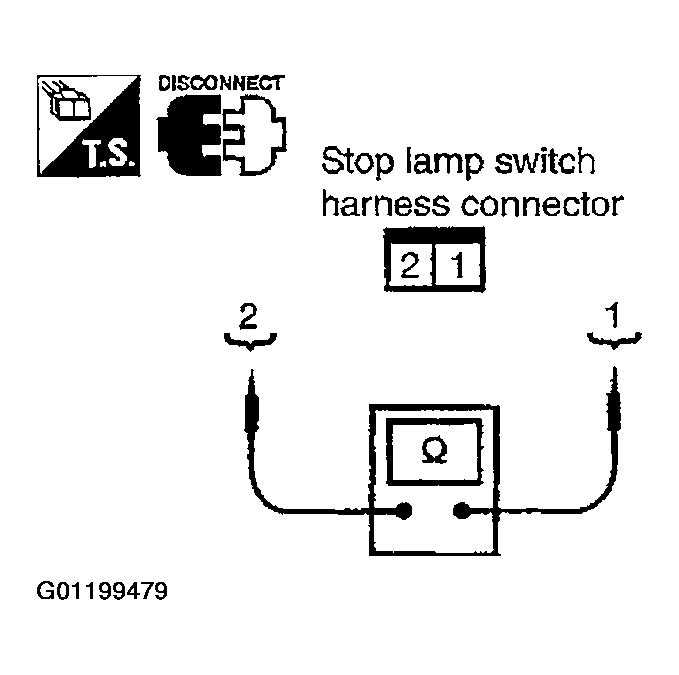

Fig 2: Checking Continuity Between Terminals Of Stop Lamp

Courtesy of NISSAN MOTOR CO., U.S.A.
