Control Device Removal And Installation: Removal
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

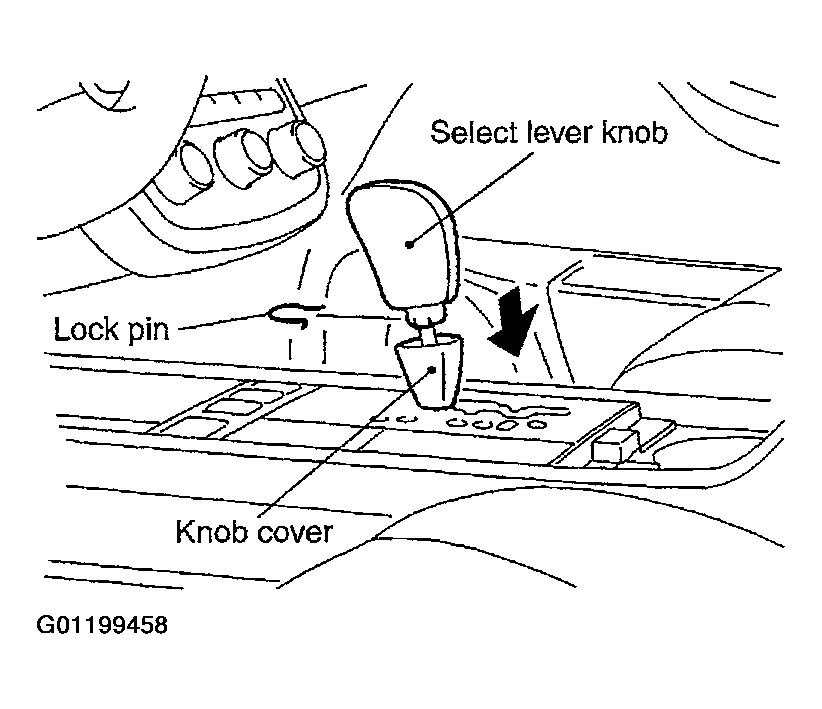

- Remove knob cover below select lever downward.
- Pull lock pin out of select lever knob.
- Remove select lever knob.
- Remove A/T console finisher.
- Refer to REMOVAL AND INSTALLATION .
- Remove console box assembly.
- Refer to REMOVAL AND INSTALLATION .
- Disconnect control cable of control device.
- Disconnect control device harness connector.
- Remove control device assembly.
