Removal And Installation: Notes
WARNING:
This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

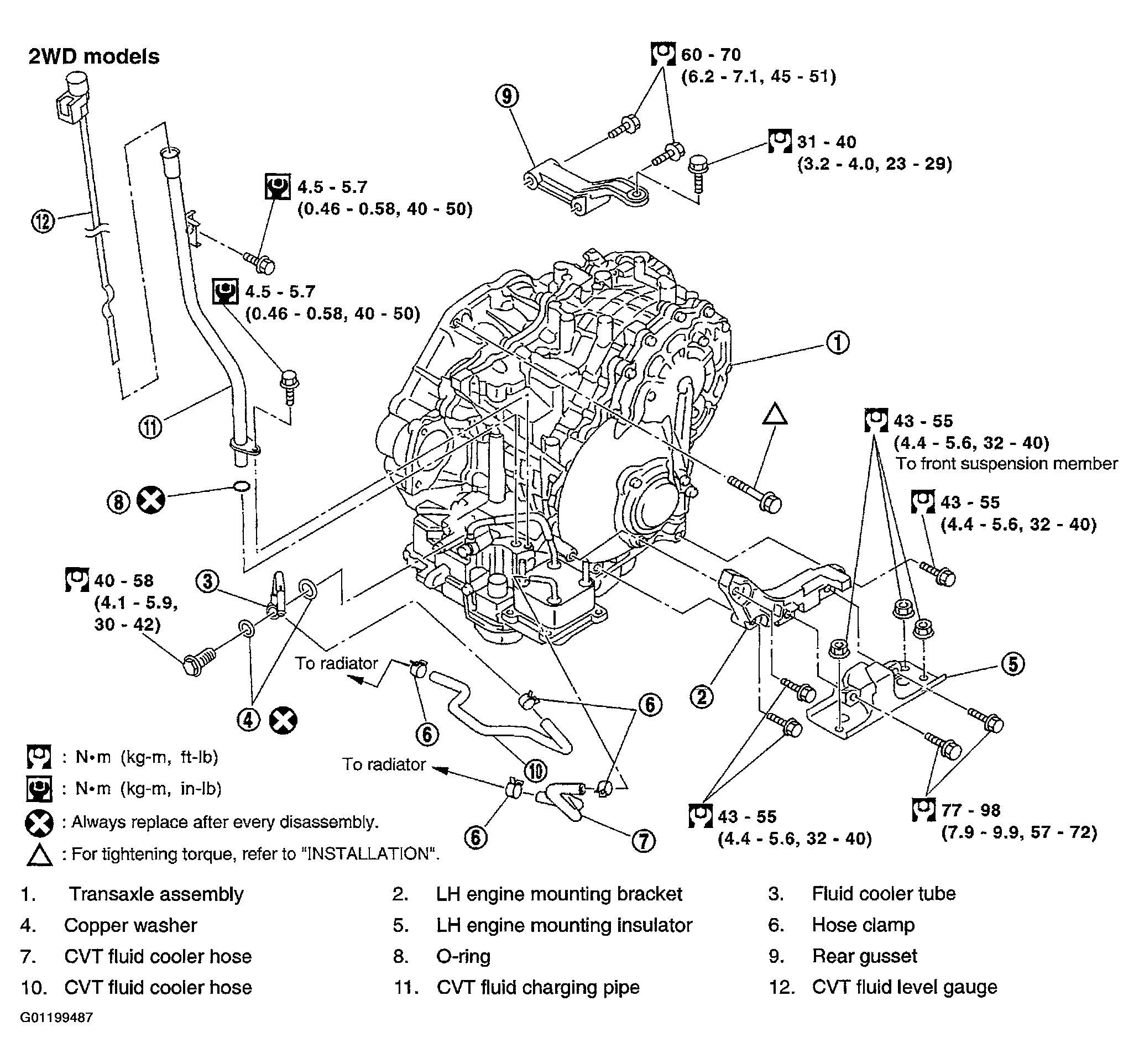

Fig 1: Displaying Transaxle Assembly Components (2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

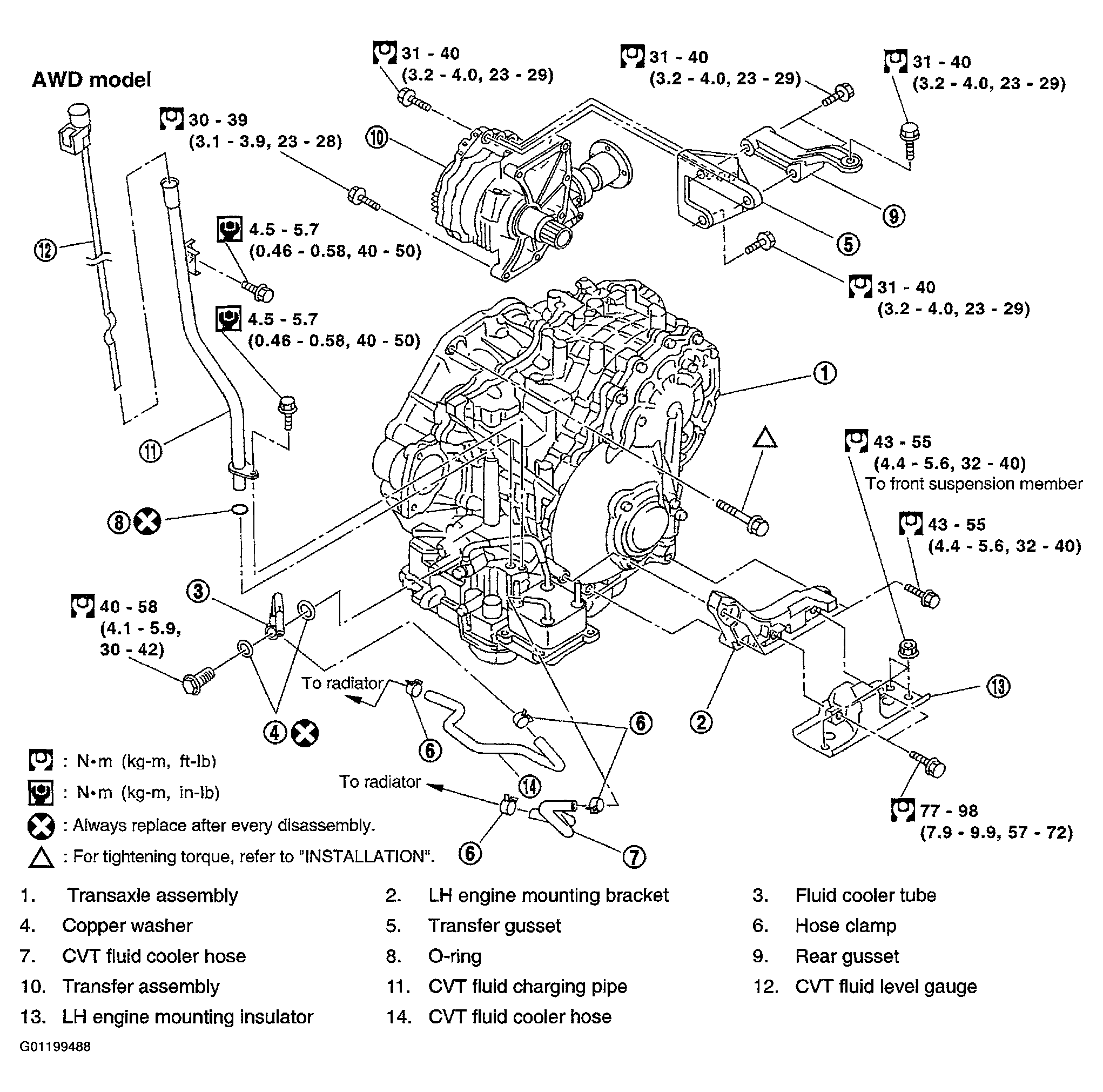

Fig 2: Displaying Transaxle Assembly Components (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
