Switches And Their Control Function
WARNING:
This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

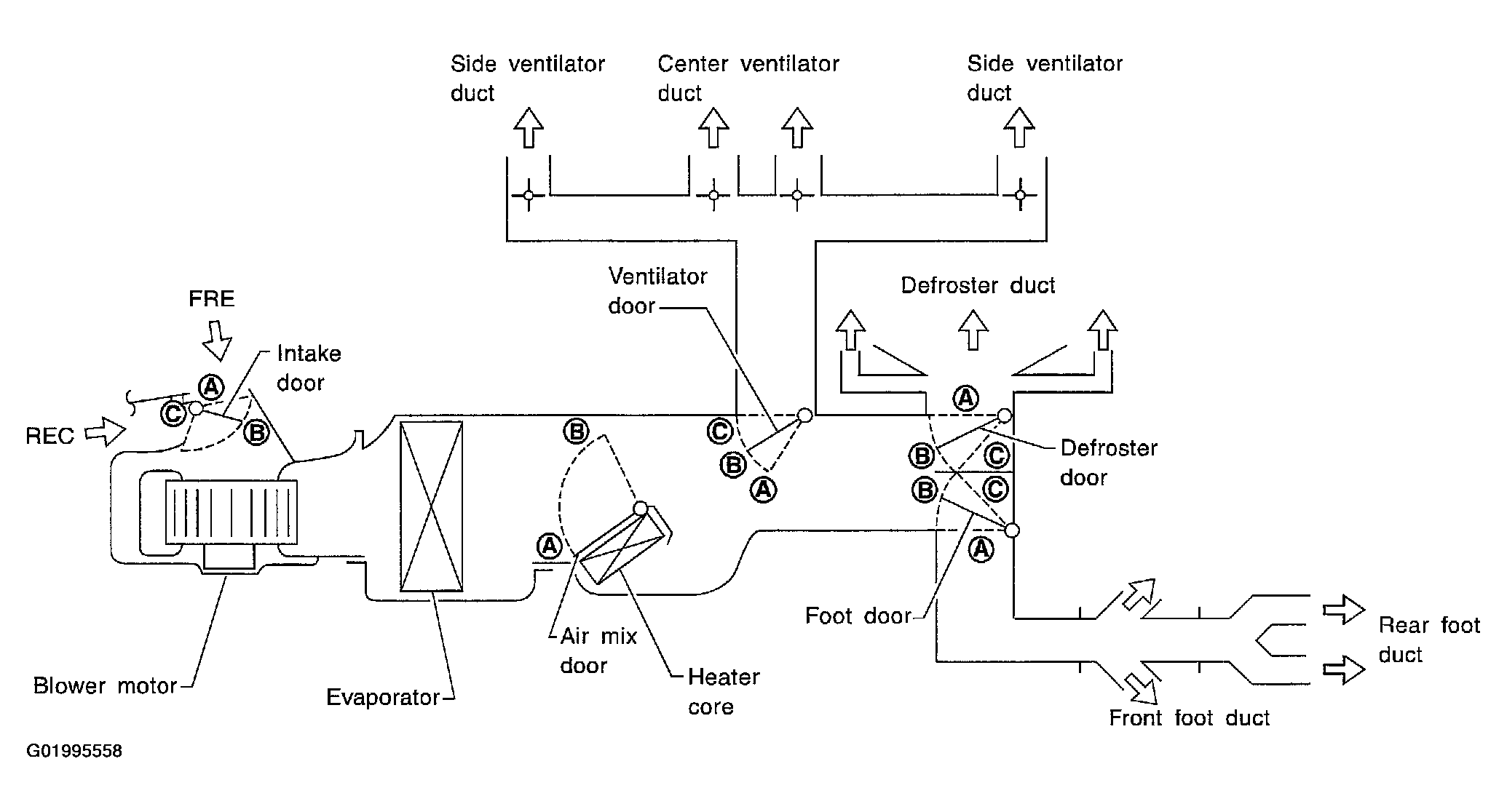

Fig 1: A/C Control System Description
Courtesy of NISSAN MOTOR CO., U.S.A.

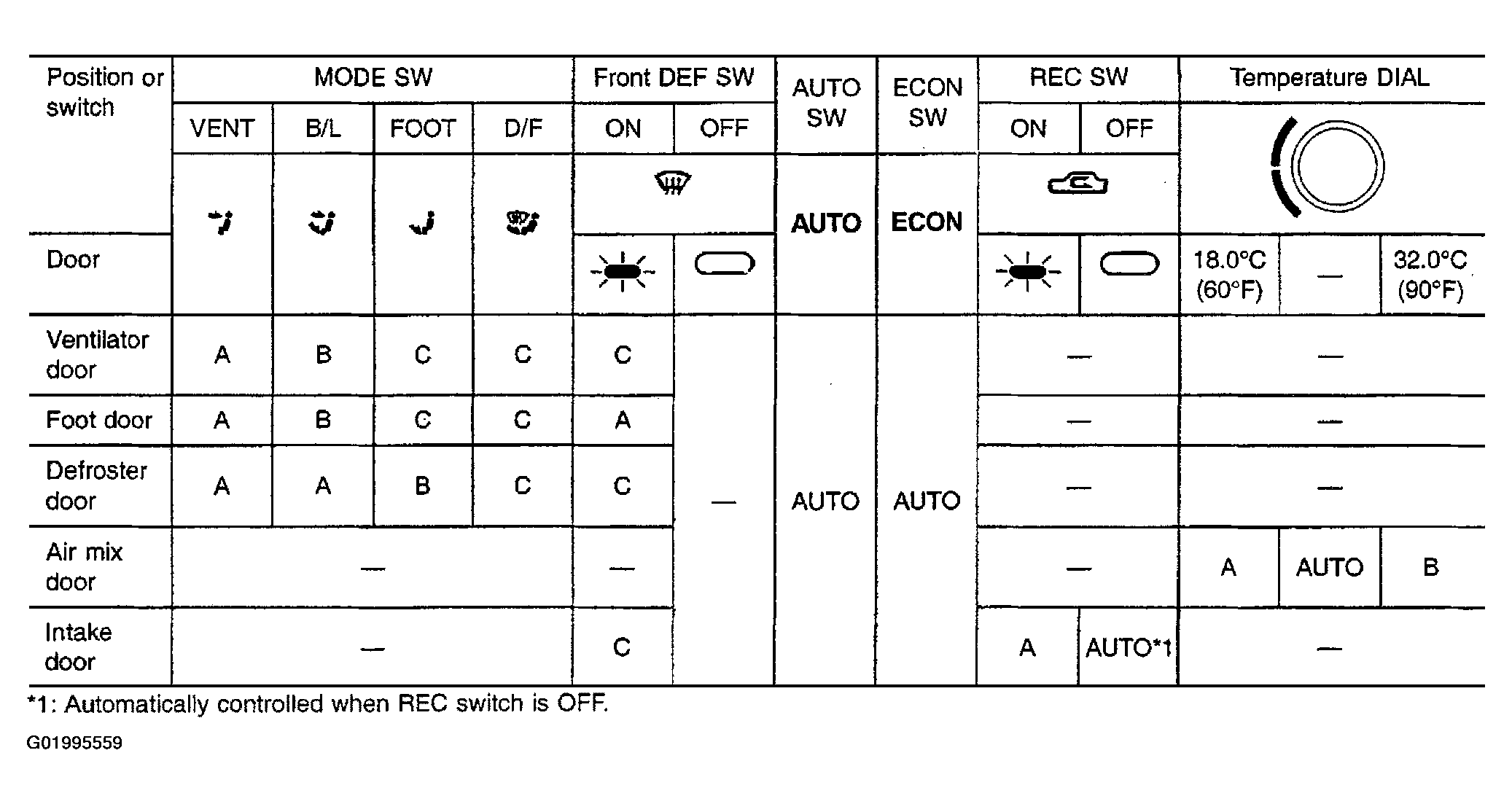

Fig 2: Switches & Their Control Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
