Inspection Flow

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

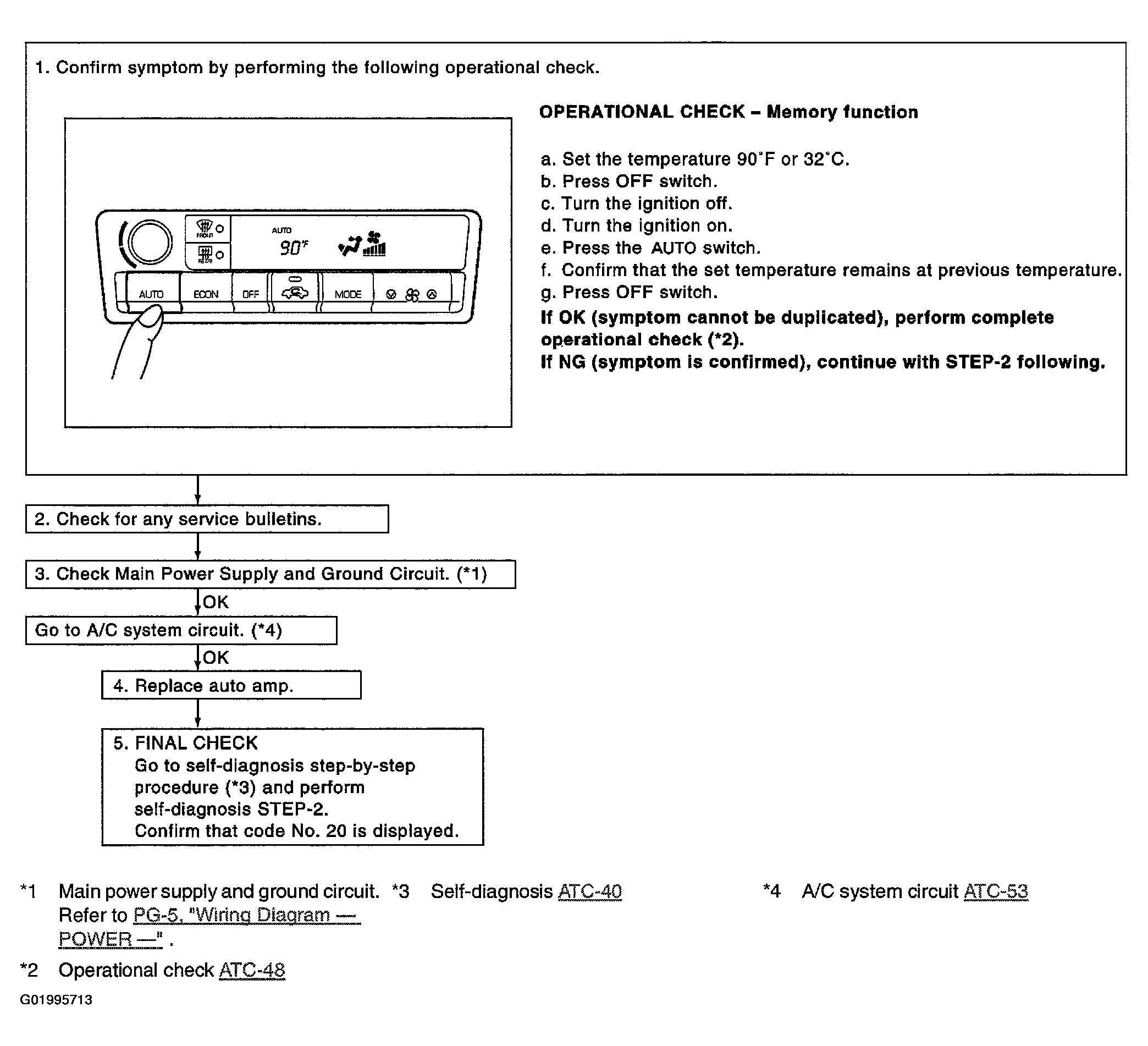

Fig 1: Inspection Flow Chart (4 Of 5)
G01995713Courtesy of NISSAN MOTOR CO., U.S.A.
