System - Basic Engine Control System

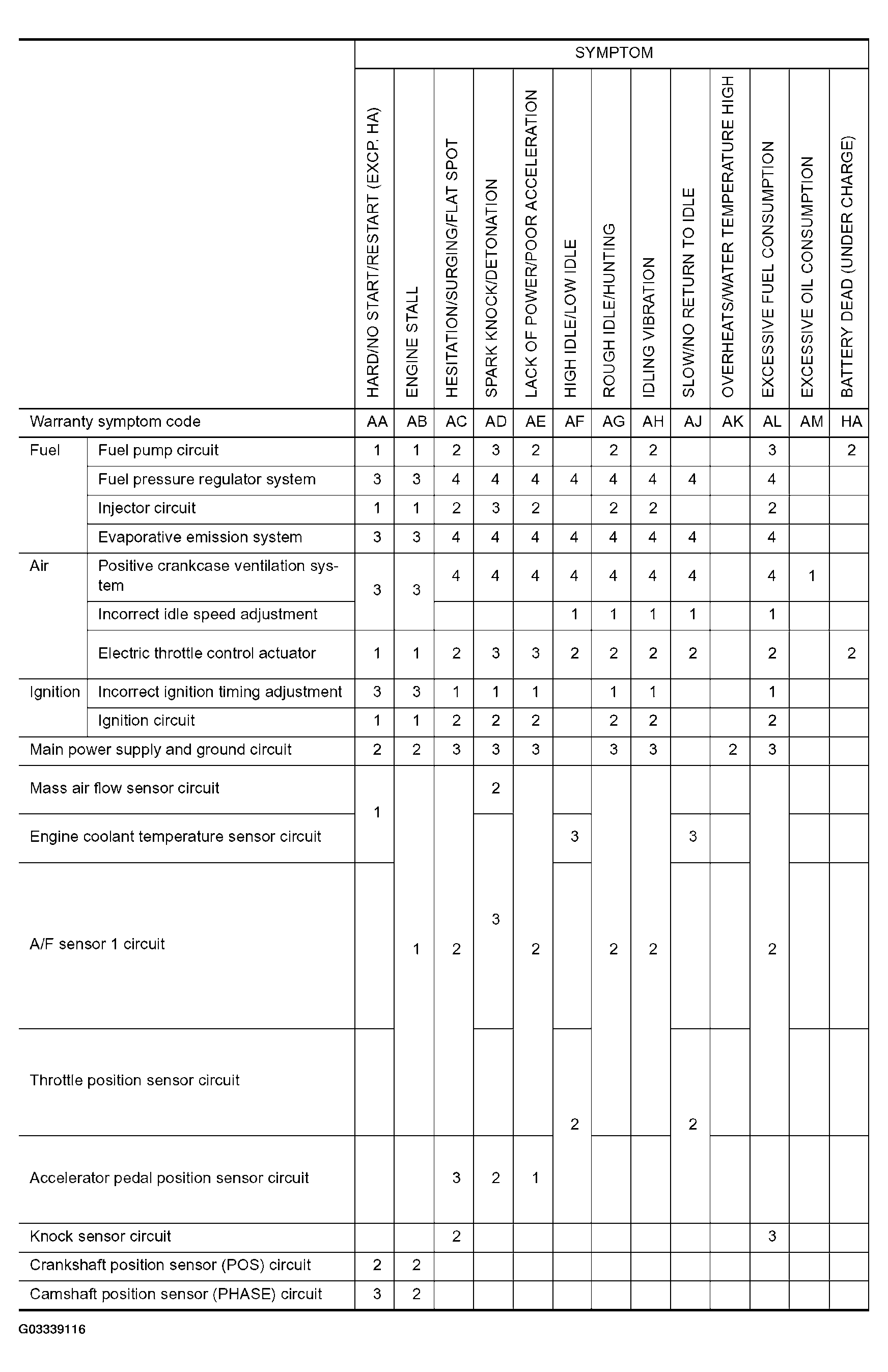

Fig 1: Symptom Matrix Chart - Basic Engine Control System (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

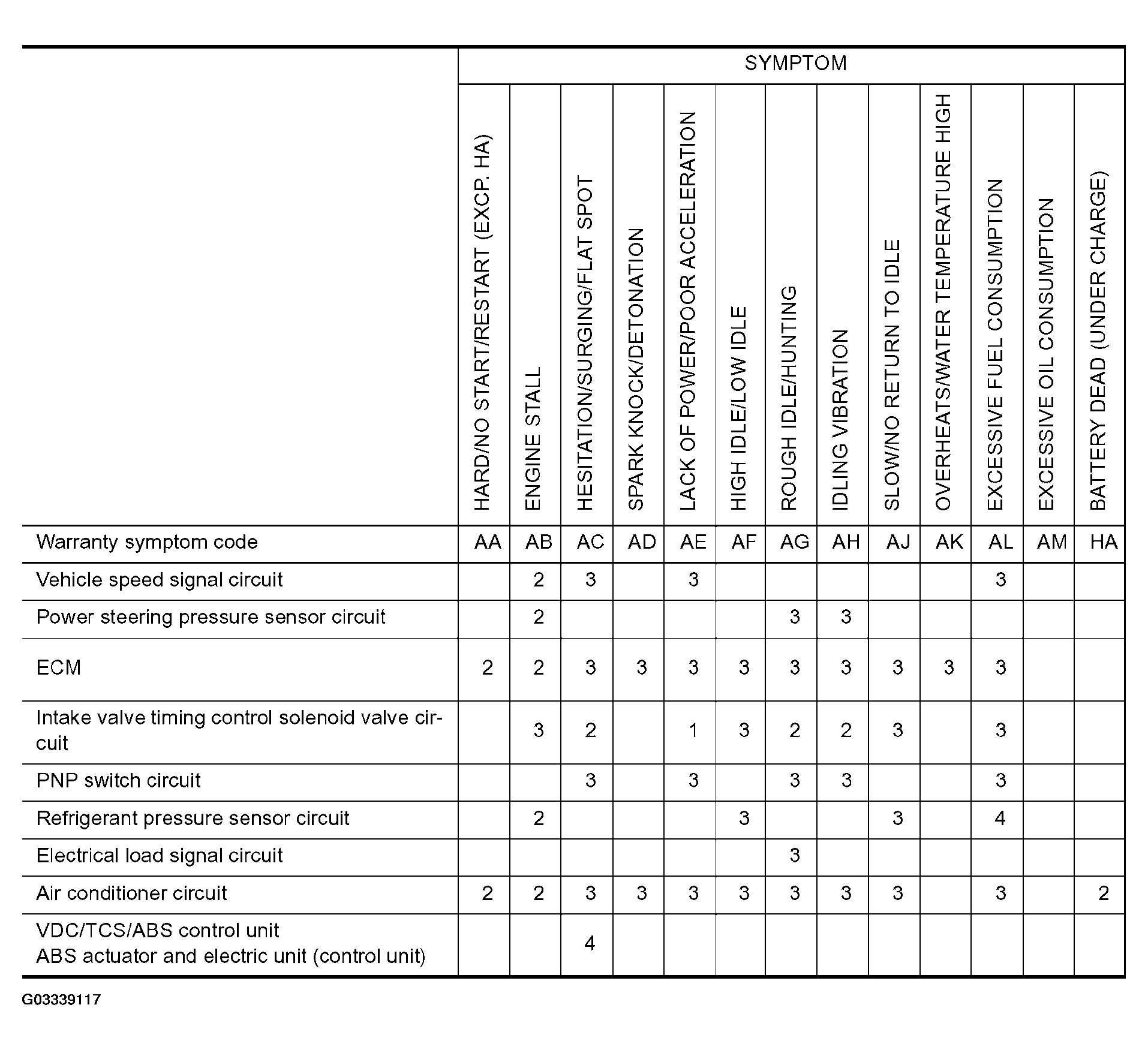

Fig 2: Symptom Matrix Chart - Basic Engine Control System (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

1 - 6: The numbers refer to the order of inspection.

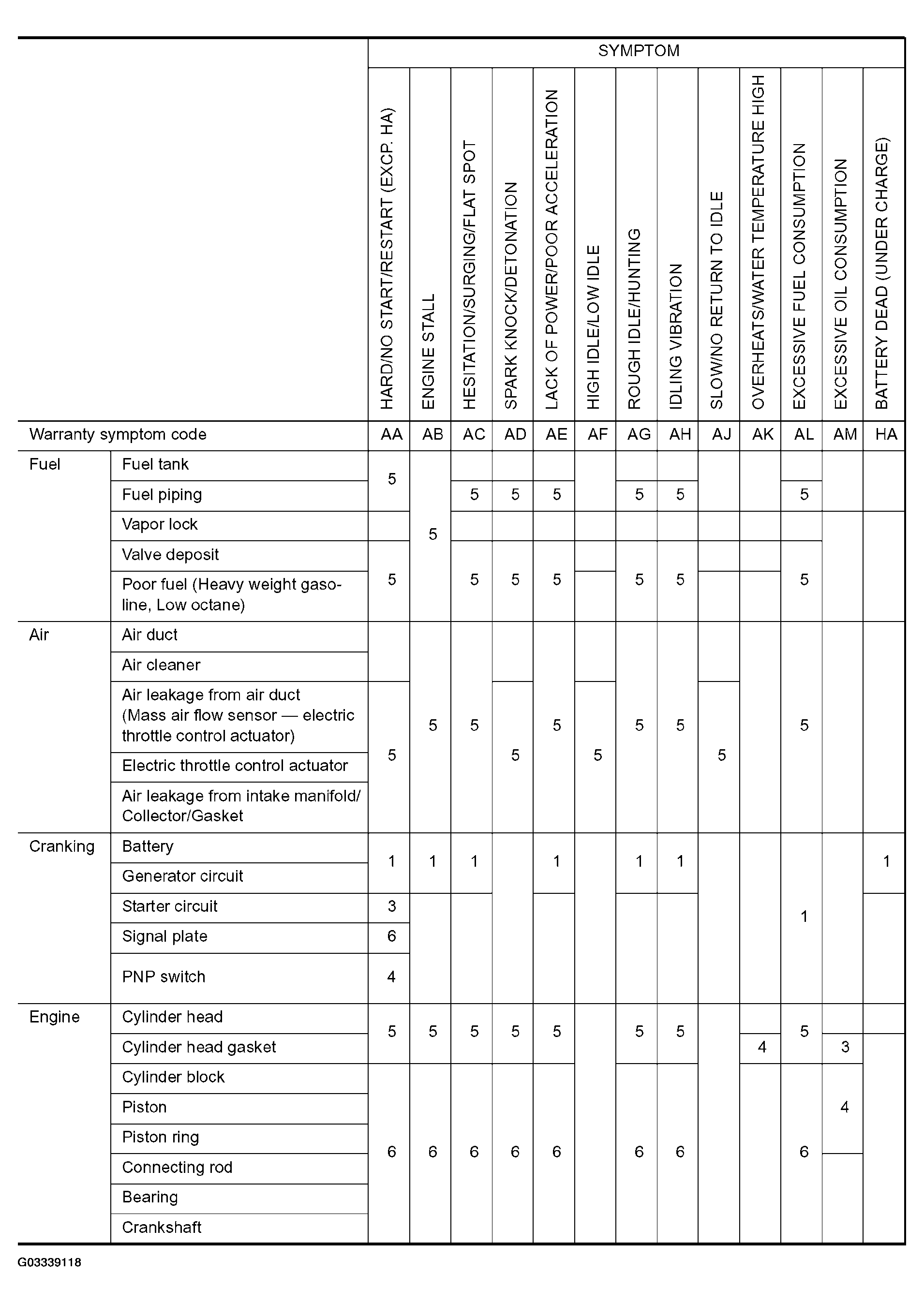

Fig 3: Symptom Matrix Chart - Engine Mechanical And Other (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

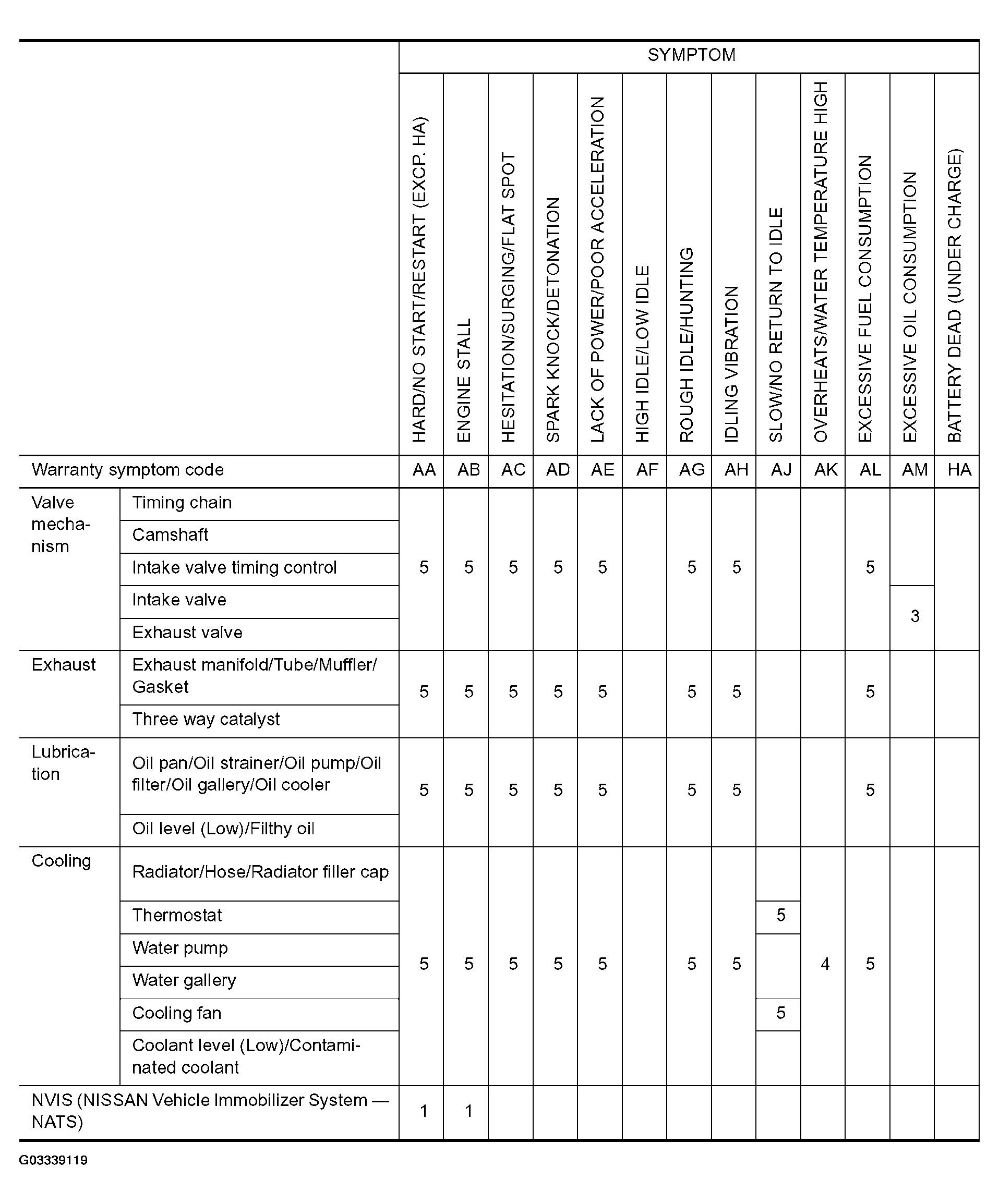

Fig 4: Symptom Matrix Chart - Engine Mechanical And Other (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

1 - 6: The numbers refer to the order of inspection.
