Display Item List

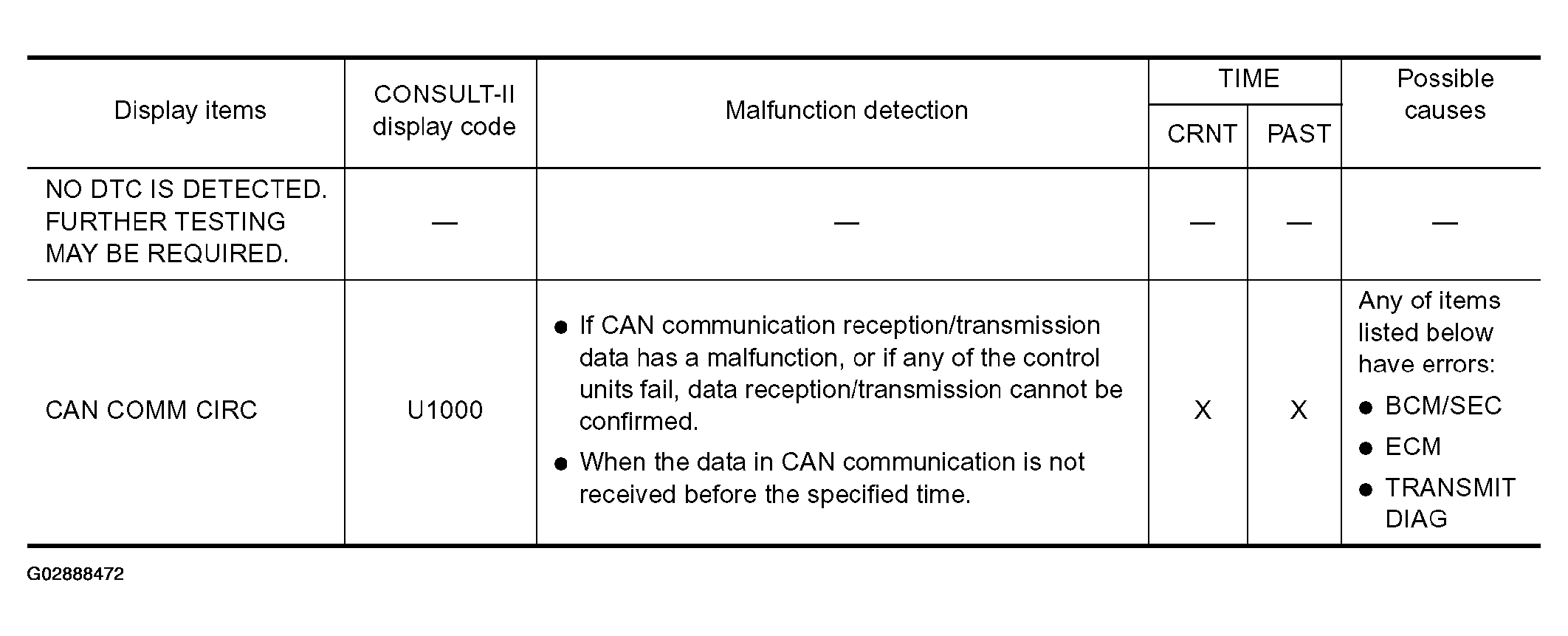

Fig 1: Identifying Display Item List
G02888472Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The details for display of the period are as follows:
  • CRNT: Error currently detected with IPDM E/R.
  • PAST: Error detected in the past and placed in IPDM E/R memory.
