With Consult-II

  1. Turn ignition switch ON and select "DATA MONITOR" mode for A/T with CONSULT-II.
  2. Start engine.

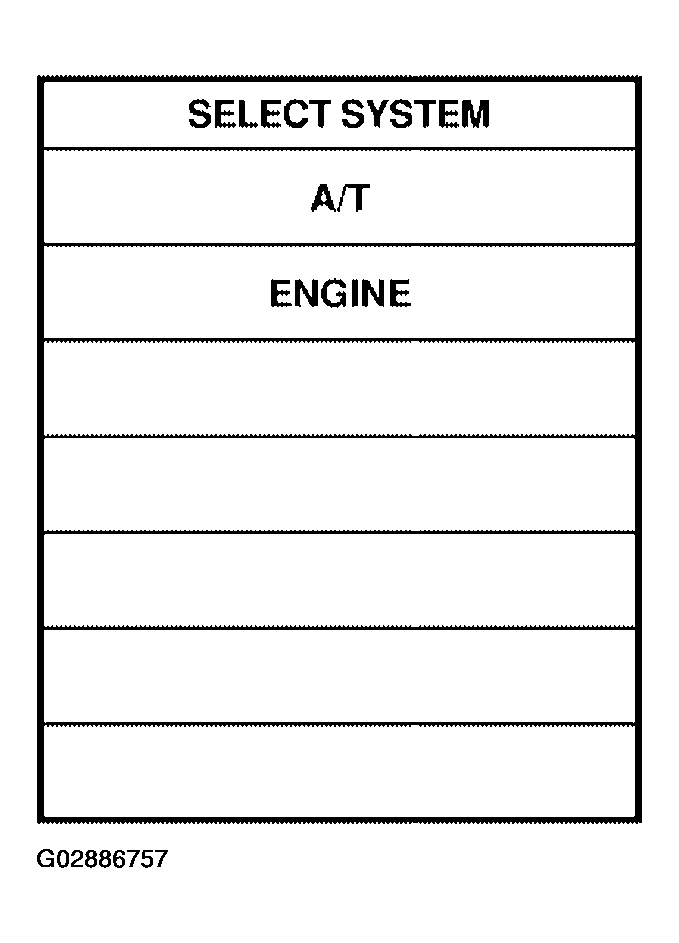

    Fig 1: Scan Tool Display "Select System"
    G02886757Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Run engine for at least 2 seconds at idle speed.

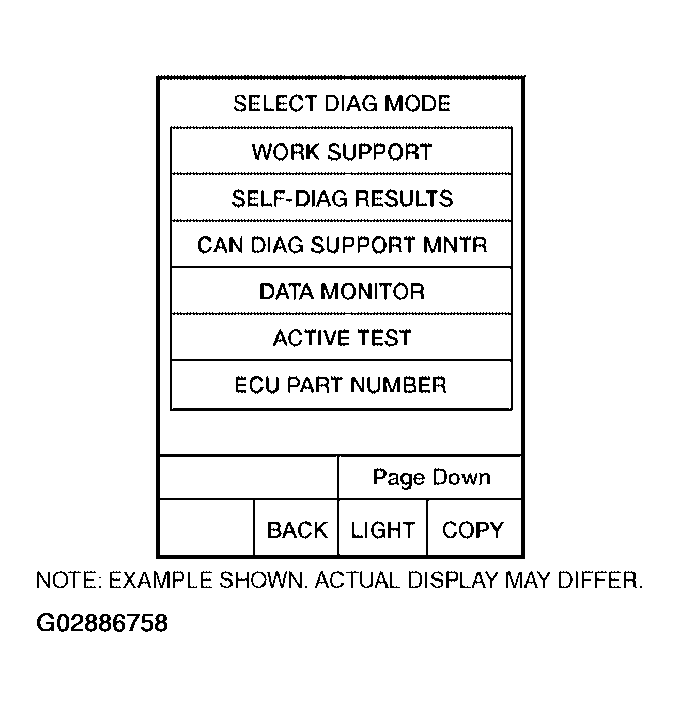

    Fig 2: Scan Tool Display "Select Diag Mode"
    G02886758Courtesy of NISSAN MOTOR CO., U.S.A.
