Key Fob Id Set Up With Consult-II

NOTE: If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. When the ID code of a lost key fob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect "CONSULT-II" to the data link connector.

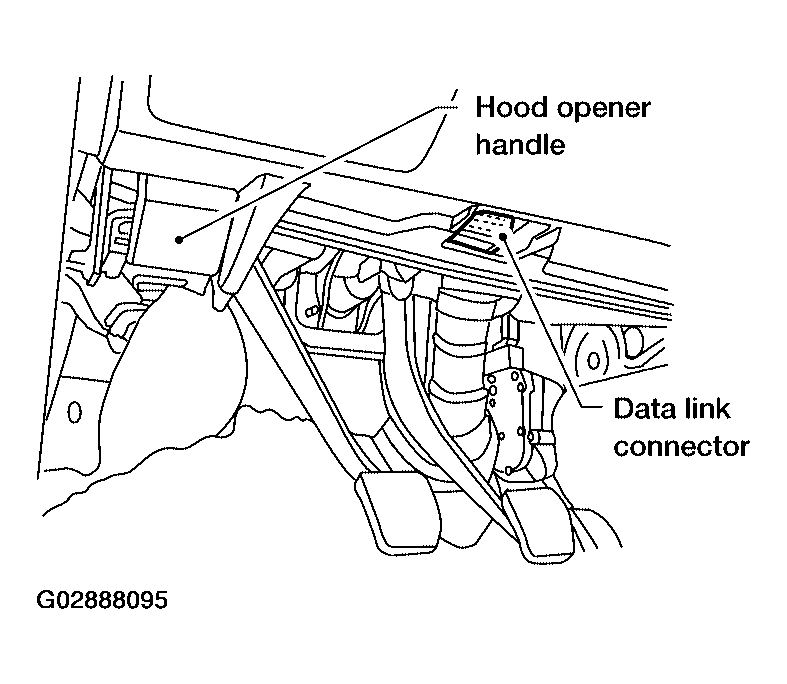

Fig 1: Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

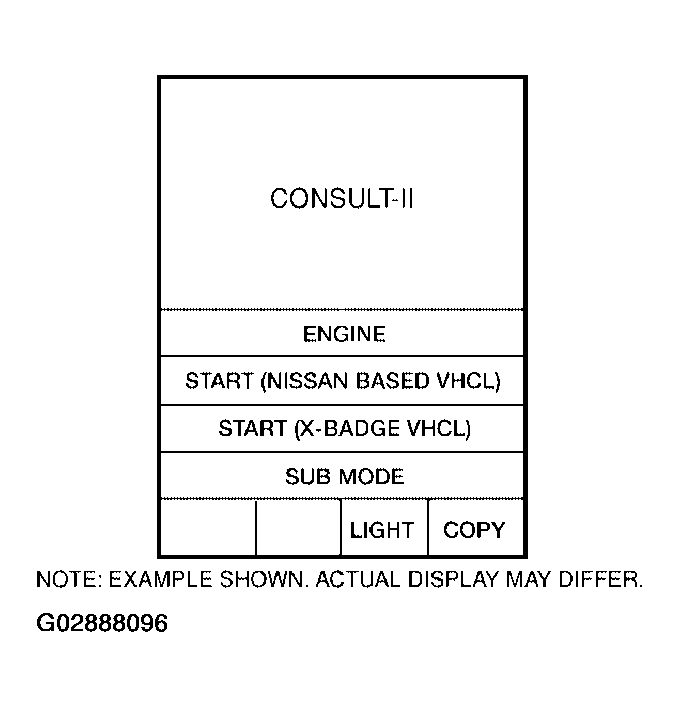

Fig 2: Scan Tool Display "Consult II"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

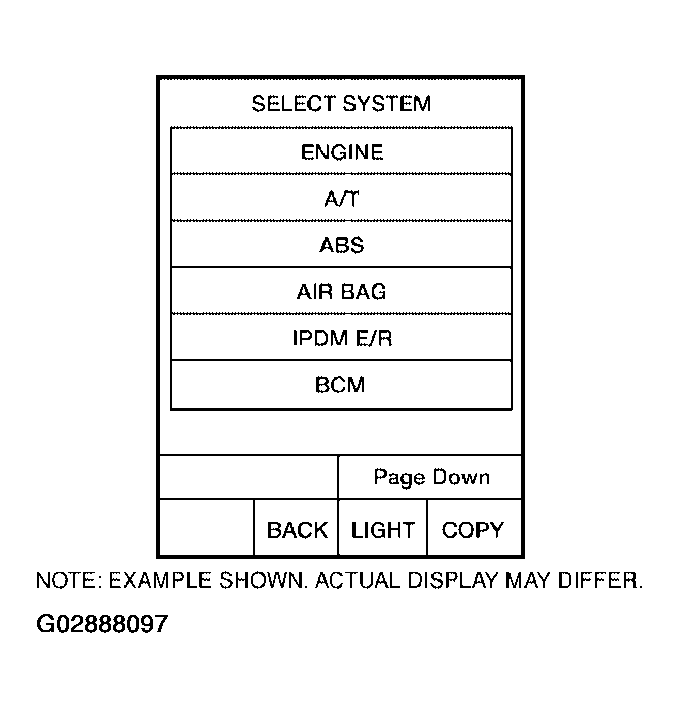

Fig 3: Scan Tool Display "Select System"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

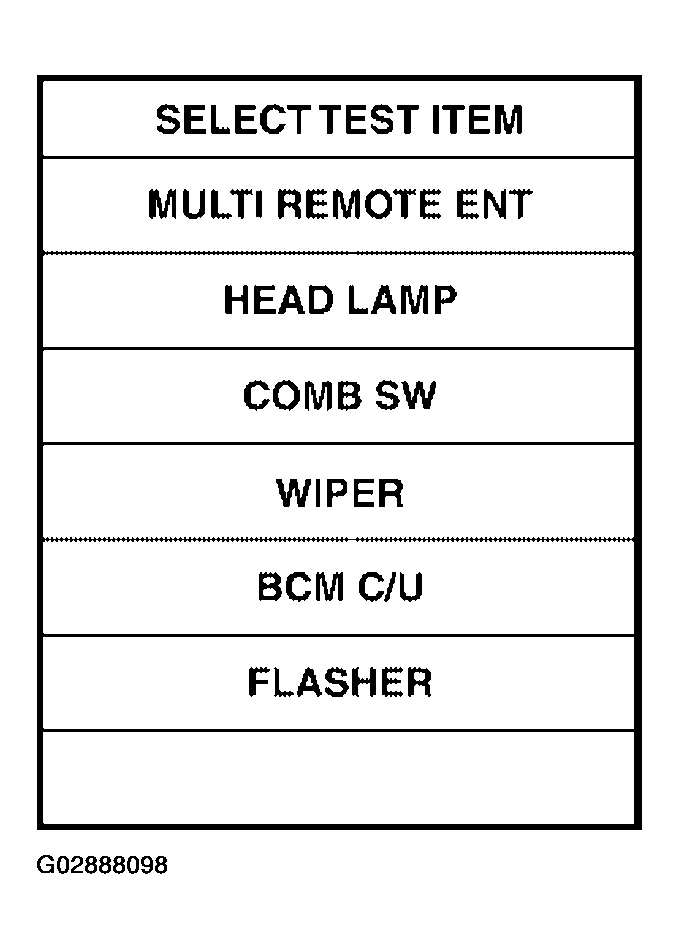

Fig 4: Scan Tool Display "Select Test Item"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

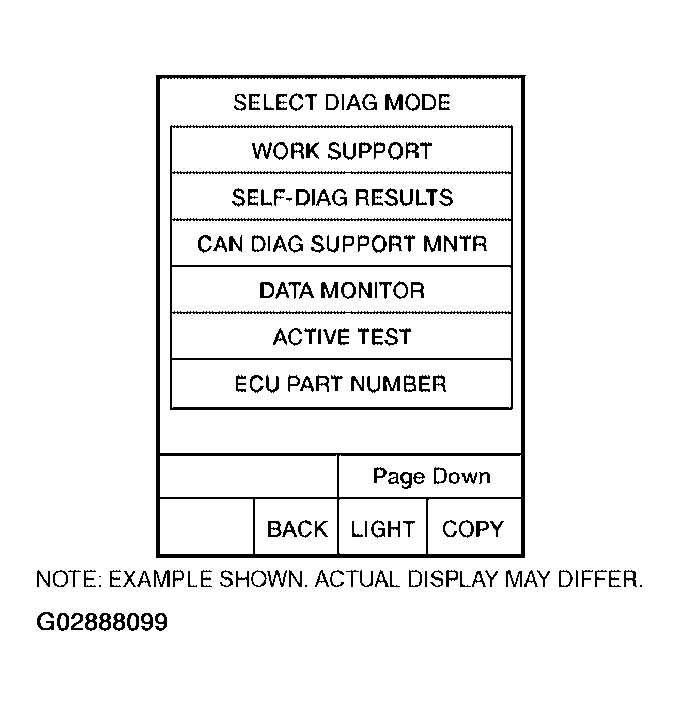

Fig 5: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown on the figure at left can be set up.
- "REMO CONT ID CONFIR"
  Use this mode to confirm if a key fob ID code is registered or not.
- "REMO CONT ID REGIST"
  Use this mode to register a key fob ID code.

  NOTE: Register the ID code when key fob or BCM is replaced, or when additional key fob is required.
- "REMO CONT ID ERASUR"
  Use this mode to erase a key fob ID code.

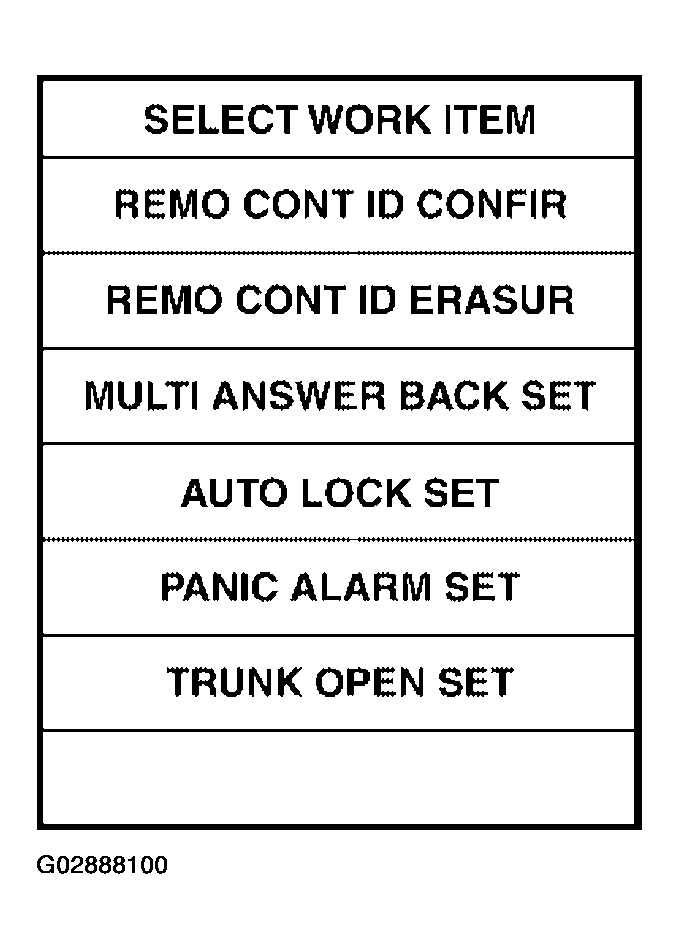

  Fig 6: Scam Tool Display "Select Work Item"
  Courtesy of NISSAN MOTOR CO., U.S.A.
