Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | On lower right rear of engine compartment. See Figure . |
| BCM (Body Control Module) | Behind left side of dash. See Figure . |
| Daytime Light Control Unit (Canada) | Near right headlight. See Figure . |

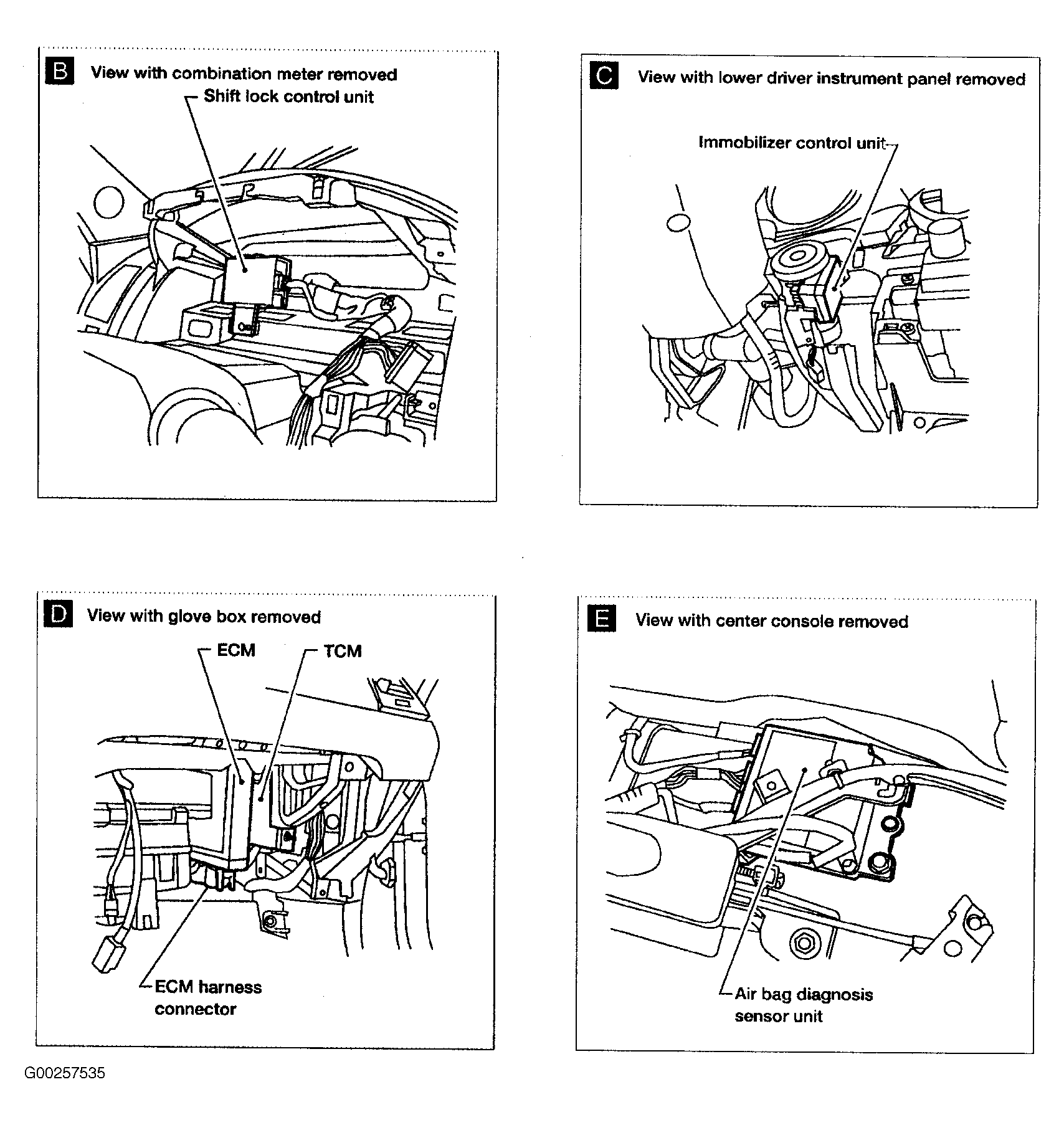

| ECM | Behind glove box. See Figure . |

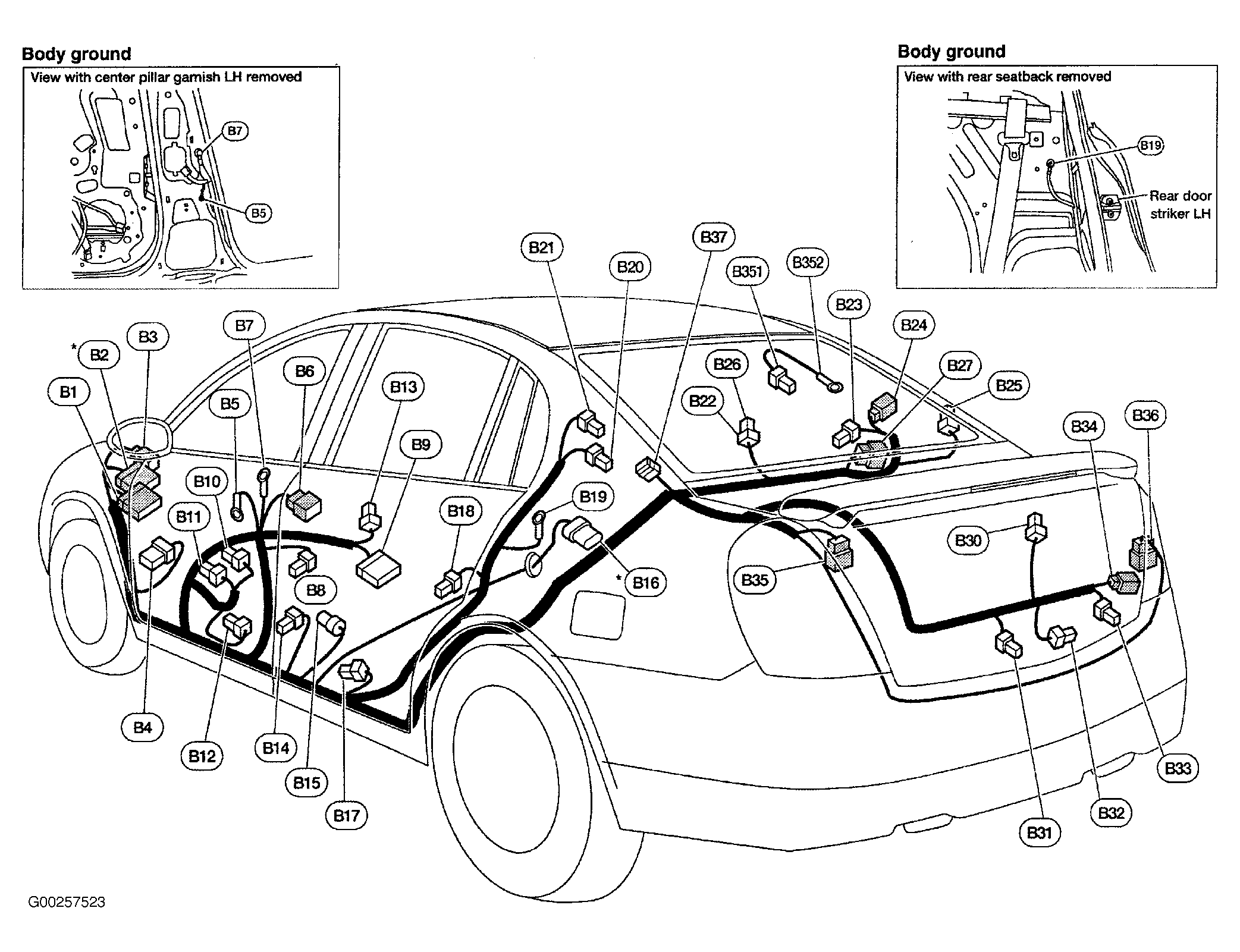

| Front Left Side Air Bag Module (B10) | Under left front seat. See Figure . |

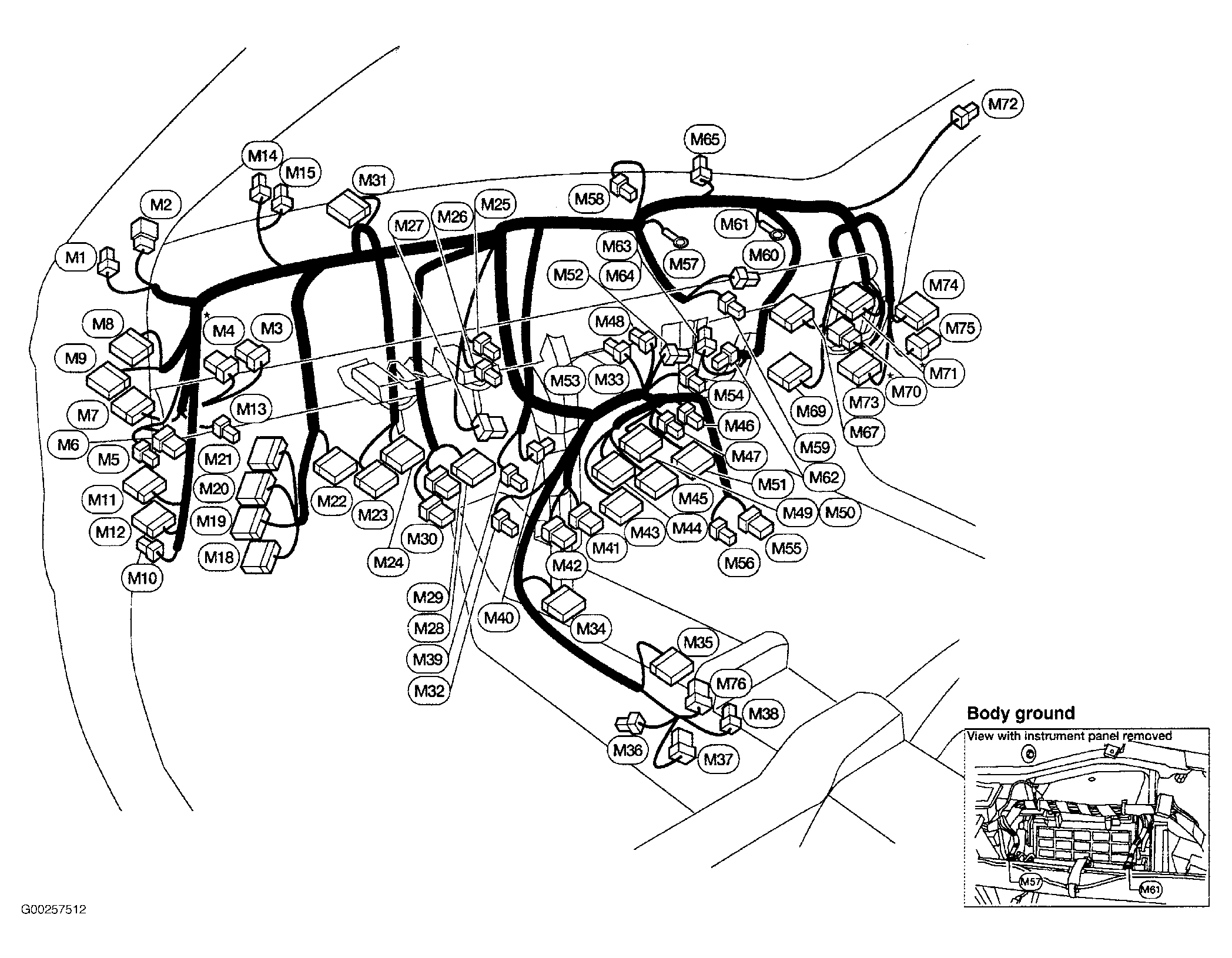

| Front Passenger Air Bag Module (M77) | Behind right side of dash. See Figure . |
| Front Right Side Air Bag Module (B112) | Under right front seat. See Figure . |
| Immobilizer Control Unit | On left side of steering column. See Figure . |
| IPDM E/R | On right front of engine compartment, behind headlight. See Figure . |
| Left Side Curtain Air Bag Module (B20) | At left "C" pillar. See Figure . |
| Right Side Curtain Air Bag Module (B118) | At right "C" pillar. See Figure . |
| Shift Lock Control Unit | Behind upper left side of dash. See Figure . |
| TCM | Behind right side of dash. See Figure . |
