Power Steering Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
- Reconnect all harness connectors disconnected.
- Start engine and let it idle.

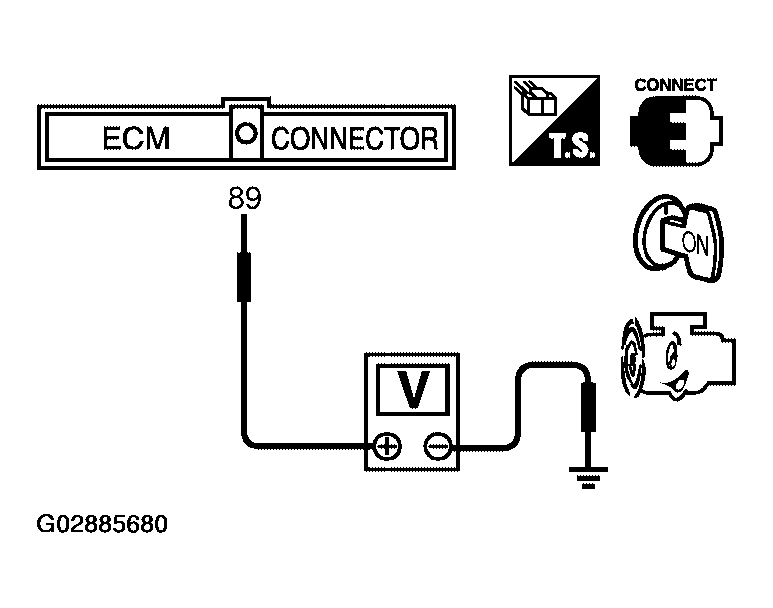

- Check voltage between ECM terminal 89 and ground under the following conditions.
ECM CONNECTORS VOLTAGE
| Condition |
Voltage |
| Steering wheel is being turned. |
0.5 - 4.0V |
| Steering wheel is not being turned. |
0.4 - 0.8V |
Courtesy of NISSAN MOTOR CO., U.S.A.
