Key Switch
Check continuity between terminals of the key switch and key lock solenoid connector.

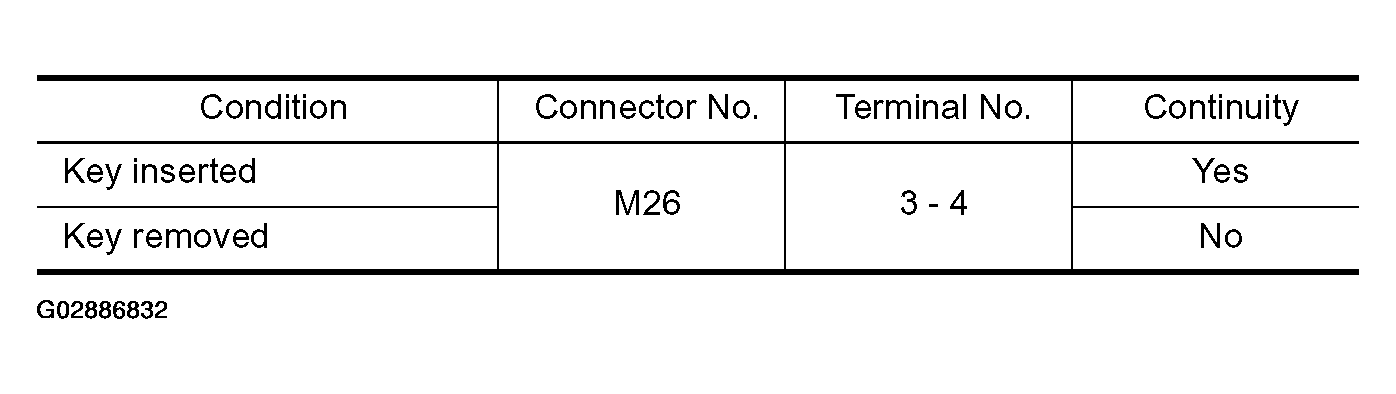

Fig 1: Key Switch Condition & Terminals Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

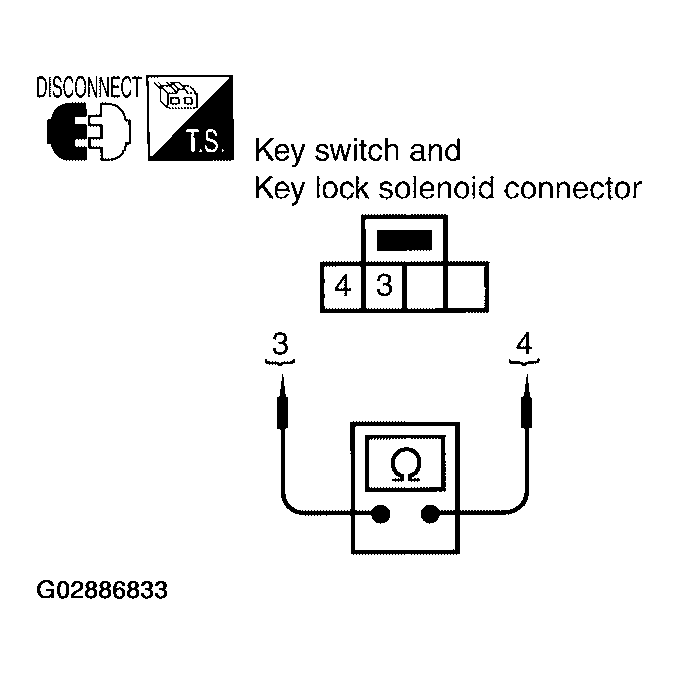

Fig 2: Key Switch Condition & Terminals Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
