Back-up Control (Engine brake)

If the selector lever is shifted to 2 position while driving in D4 (O/D) or D3, great driving force is applied to the clutch inside the transmission. Clutch operating pressure (line pressure) must be increased to deal with this driving force.

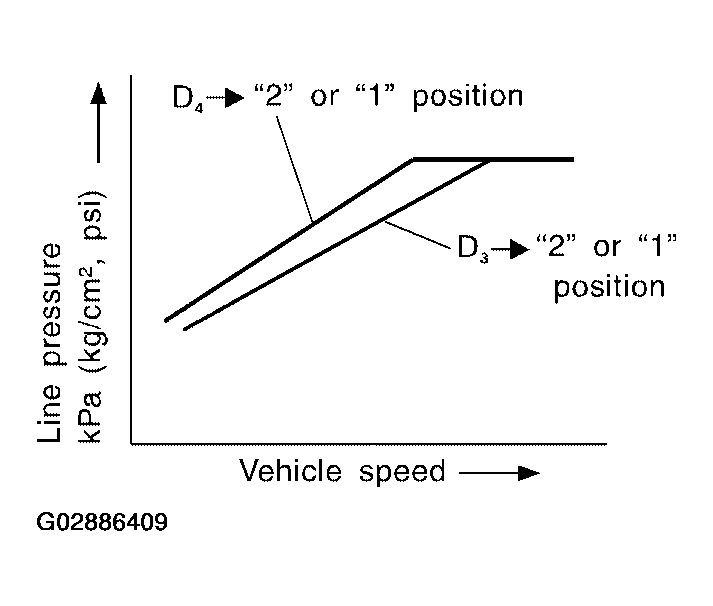

Fig 1: Identifying Back-Up Control (Engine Brake) Graph
G02886409Courtesy of NISSAN MOTOR CO., U.S.A.
