Automatic Transaxle: Overhaul: Components
SEC. 311.313.327.381

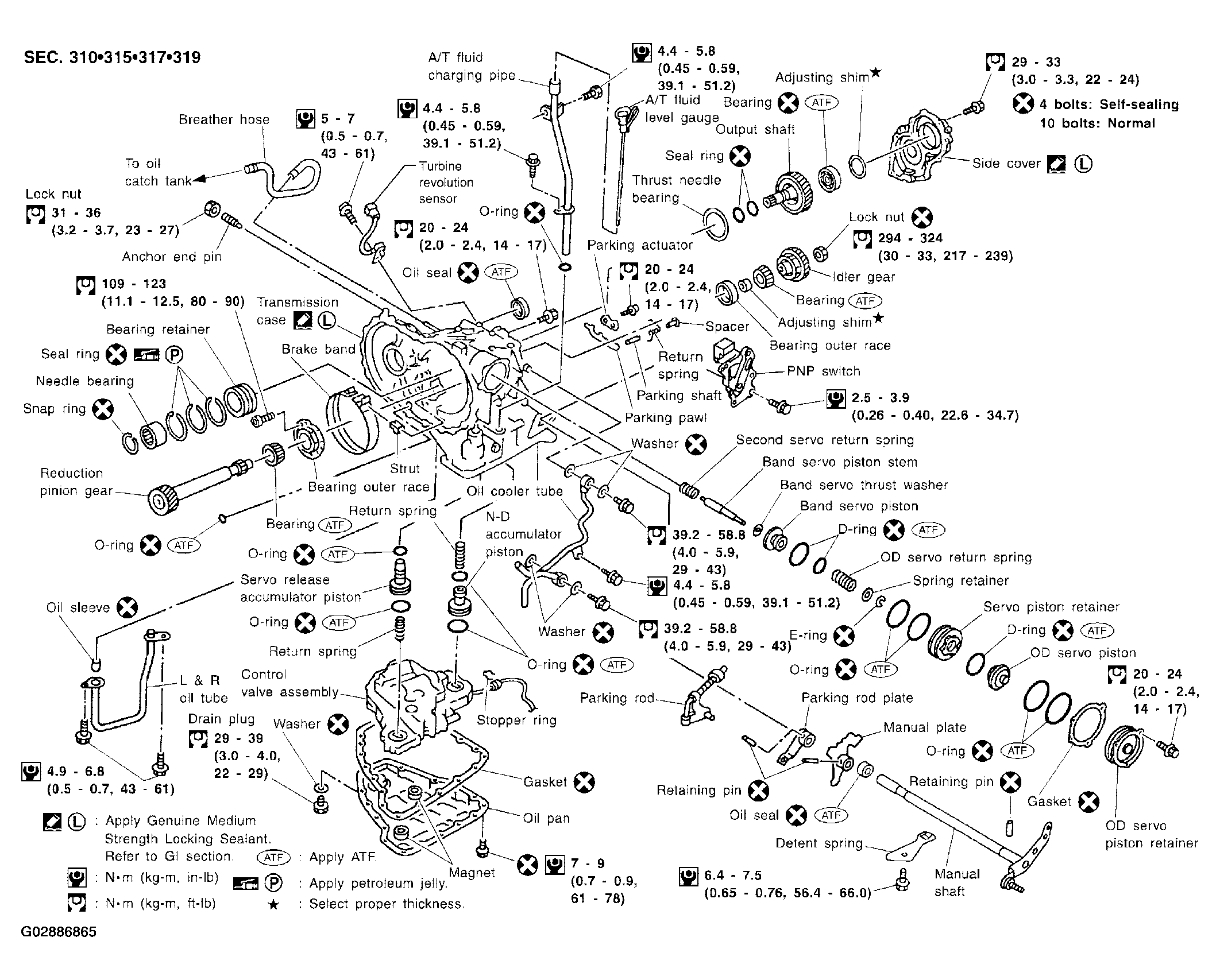

Fig 1: Exploded View Of Automatic Transmission Components & Torque Specifications (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

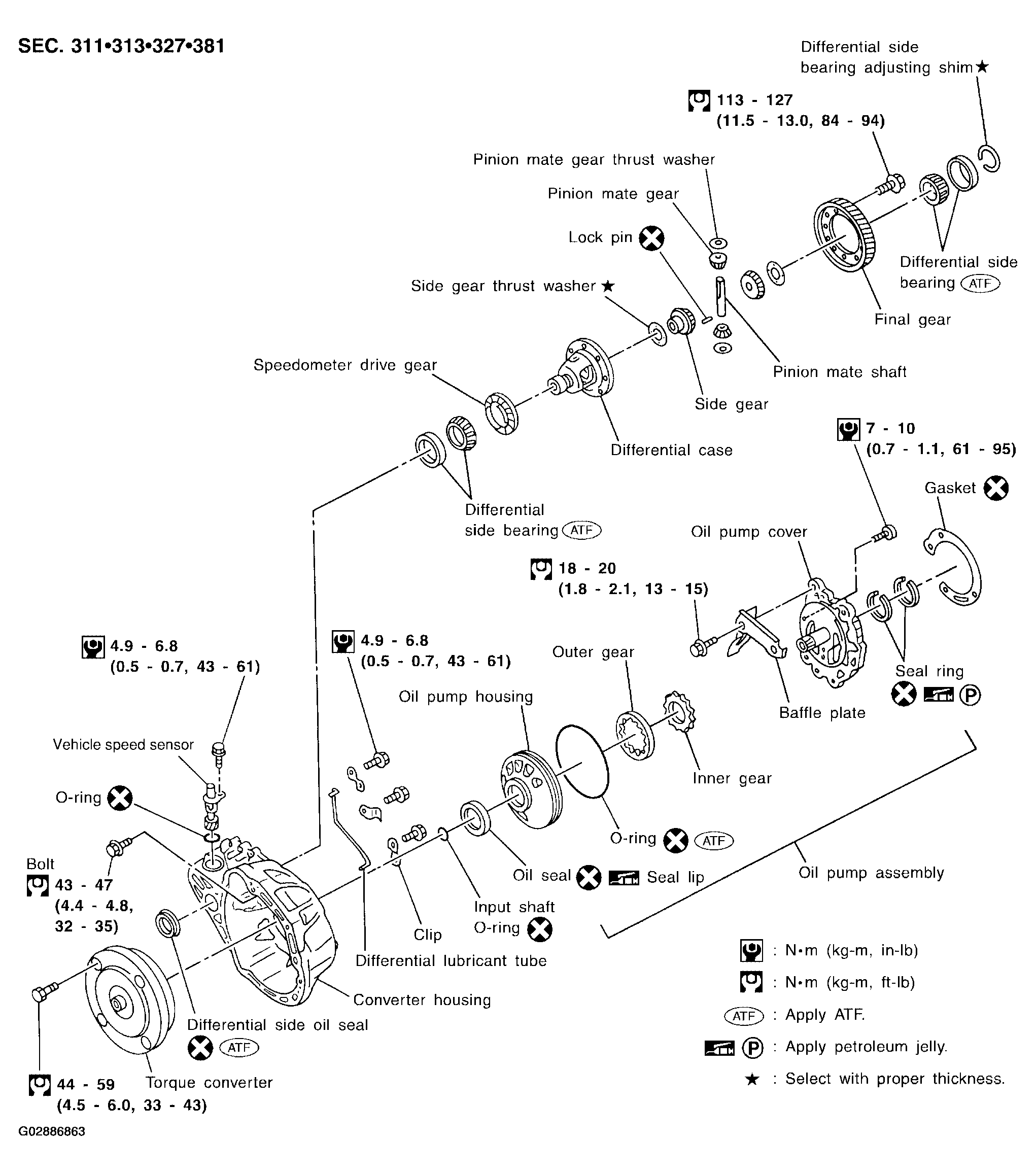

Fig 2: Exploded View Of Automatic Transmission Components & Torque Specifications (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

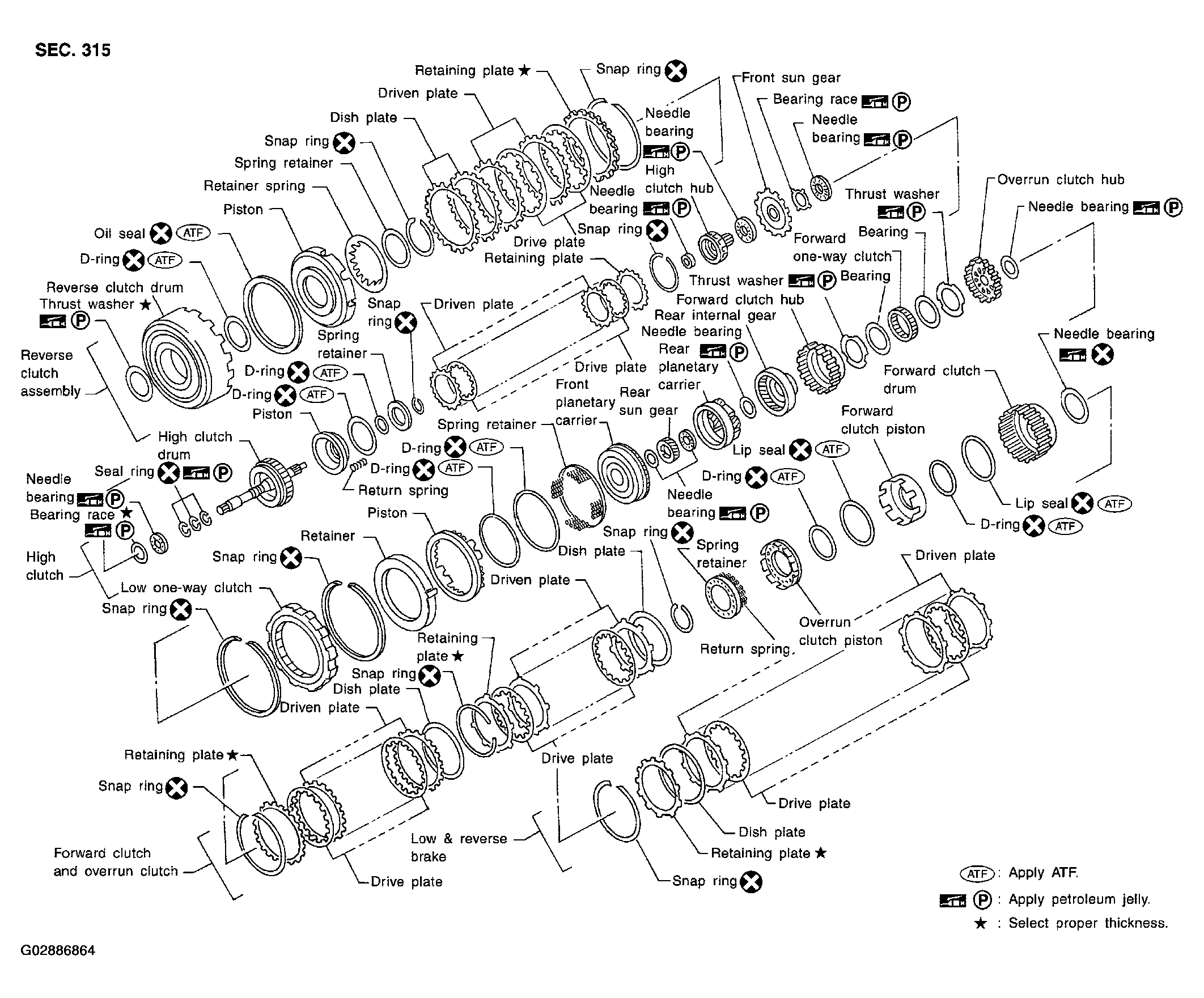

Fig 3: Exploded View Of Automatic Transmission Components & Torque Specifications (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
