Control Valve Assembly: Assembly

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

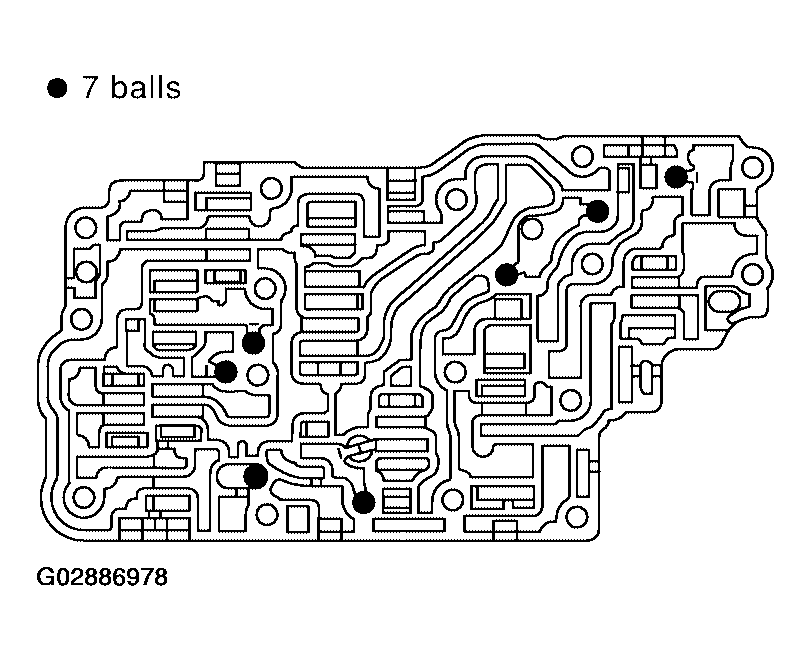

   Fig 1: Steel Balls Installation Point In Upper Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

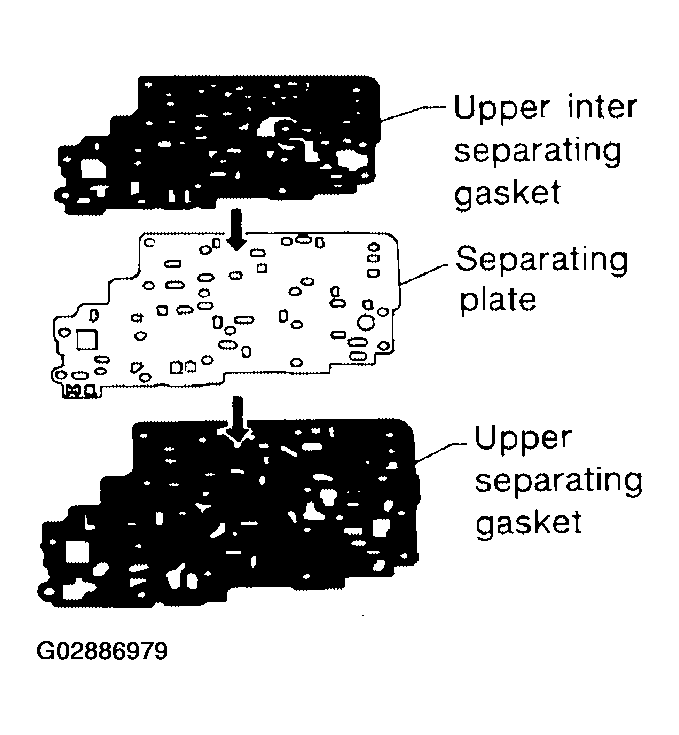

2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
   Fig 2: Installing Upper Separating Gasket, Upper Separating Plate And Upper Inter Separating Gasket

   Courtesy of NISSAN MOTOR CO., U.S.A.

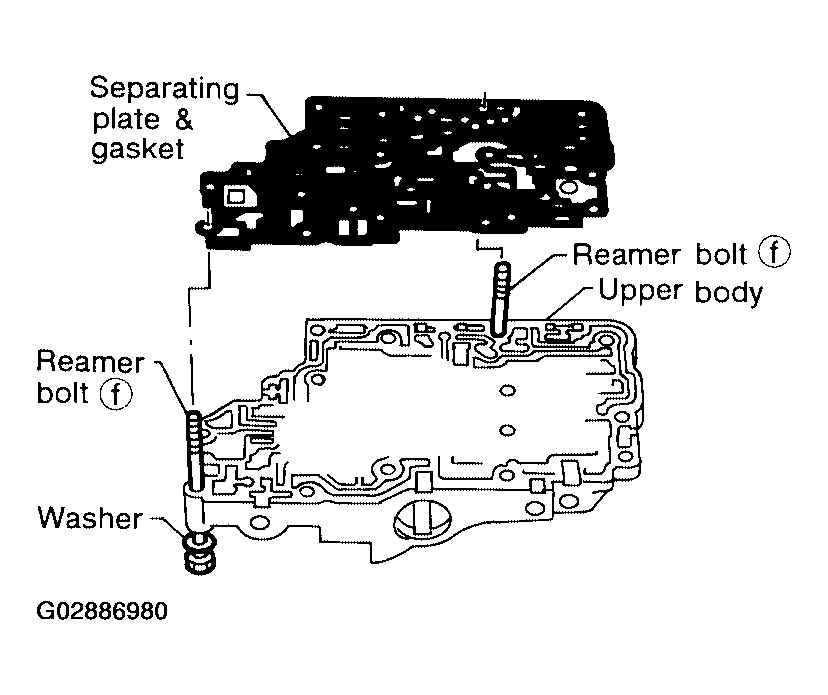

3. Install reamer bolts f  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.
   Fig 3: Installing Reamer Bolts F From Bottom Of Upper Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

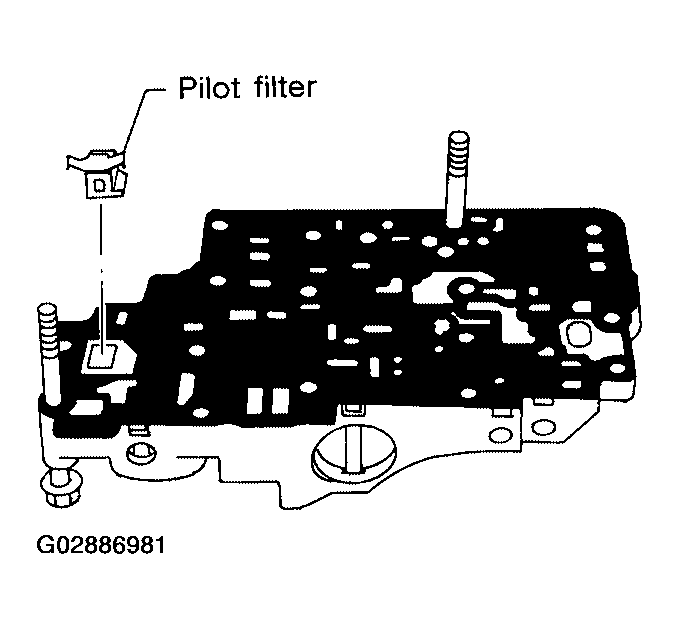

4. Install pilot filter.
   Fig 4: Installing Pilot Filter

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Place lower body as shown in illustration (side of inter body face up). Install steel balls in their proper positions.

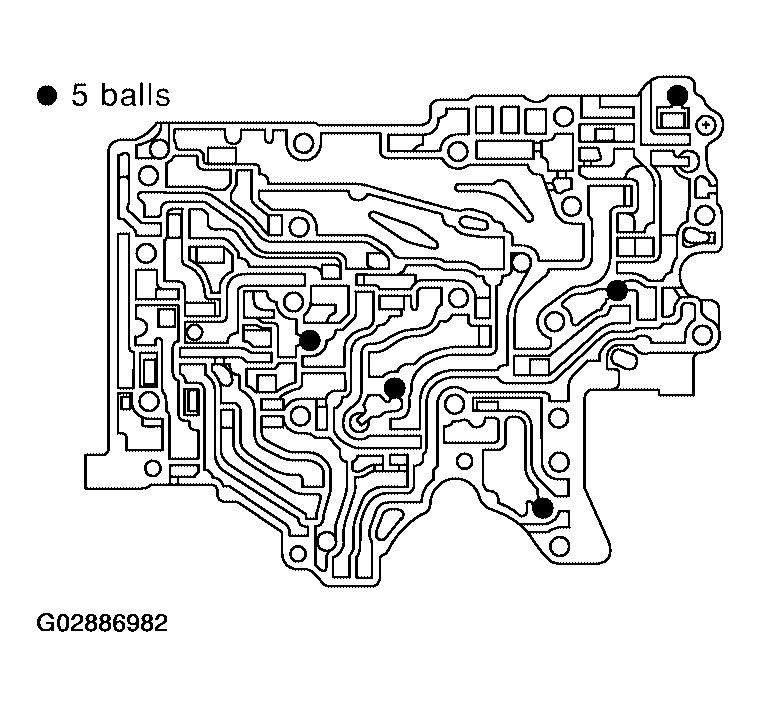

   Fig 5: Steel Balls Installation Points In Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install inter body on upper body using reamer bolts f  as guides.
   • Be careful not to dislocate or drop steel balls.

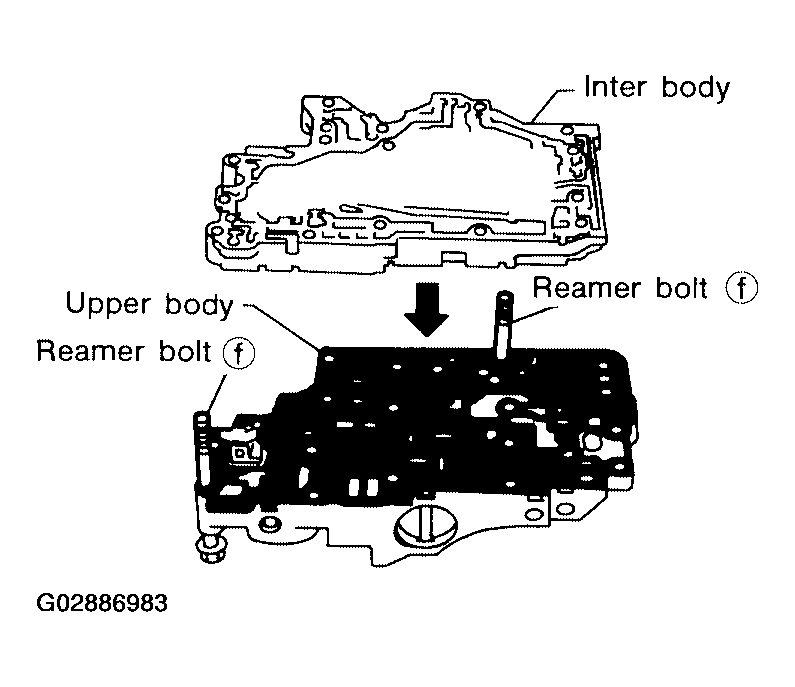

     Fig 6: Installing Inter Body On Upper Body Using Reamer Bolts "F"

     Courtesy of NISSAN MOTOR CO., U.S.A.

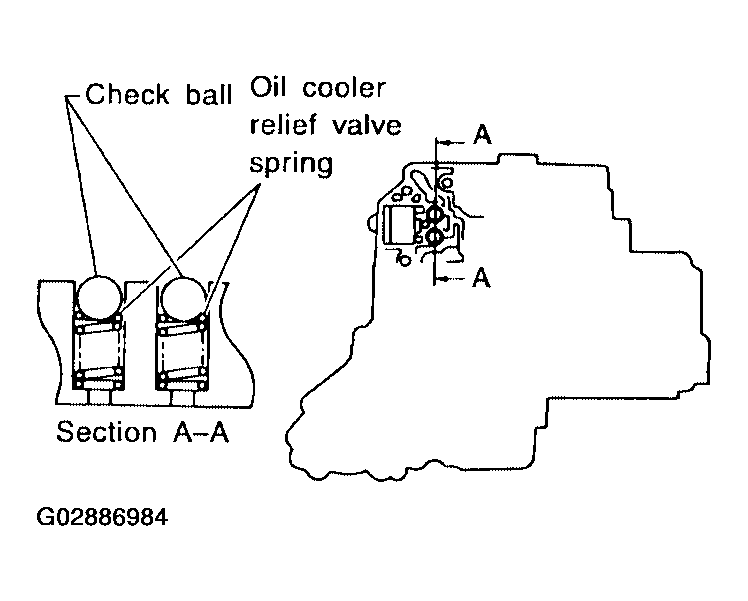

7. Install check balls and oil cooler relief valve springs in their proper positions in lower body.
   Fig 7: Installing Check Balls & Oil Cooler Relief Valve Springs In Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. Install lower separating gasket, lower inter separating gasket and lower separating plate in order shown in illustration.

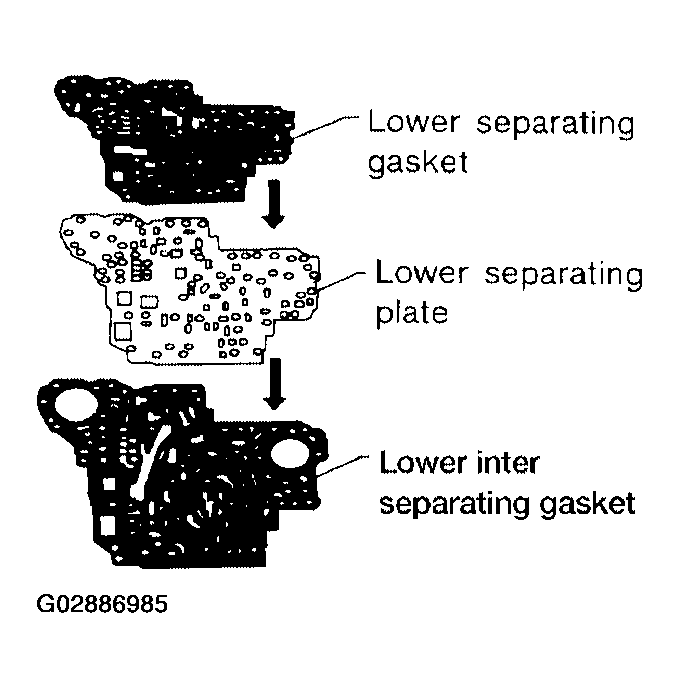

   Fig 8: Installing Lower Separating Gasket, Lower Separating Plate & Inter Separating Gasket

   Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install bolts e  from bottom of lower body. Using bolts e  as guides, install separating plate and gaskets as a set.

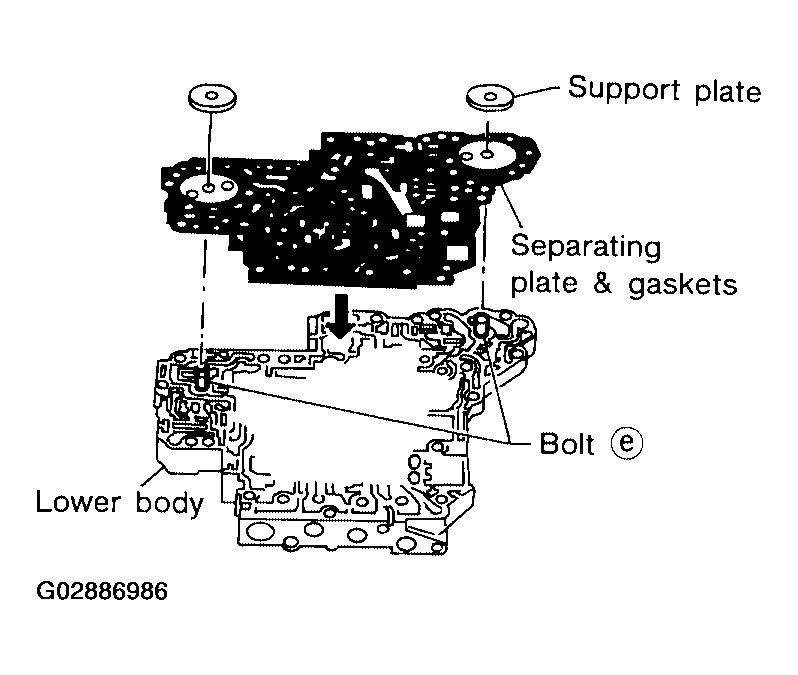

   Fig 9: Installing Bolt E From Bottom Of Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. Temporarily install support plates on lower body.

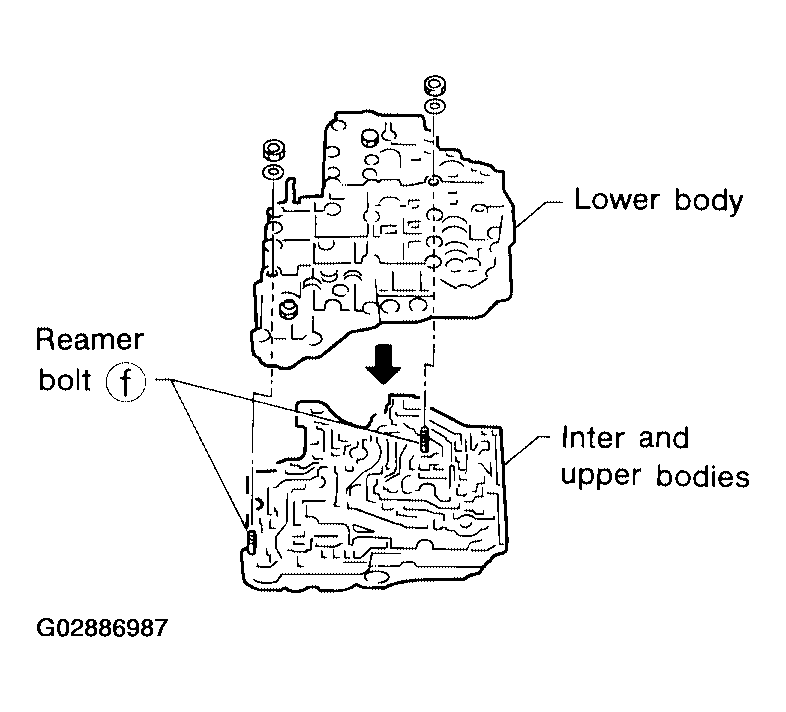

11. Install lower body on inter body using reamer bolts f  as guides and tighten reamer bolts f  slightly.
    Fig 10: Installing Lower Body On Inter Body Using Reamer Bolt "F"

    Courtesy of NISSAN MOTOR CO., U.S.A.

• Apply ATF to O-rings.

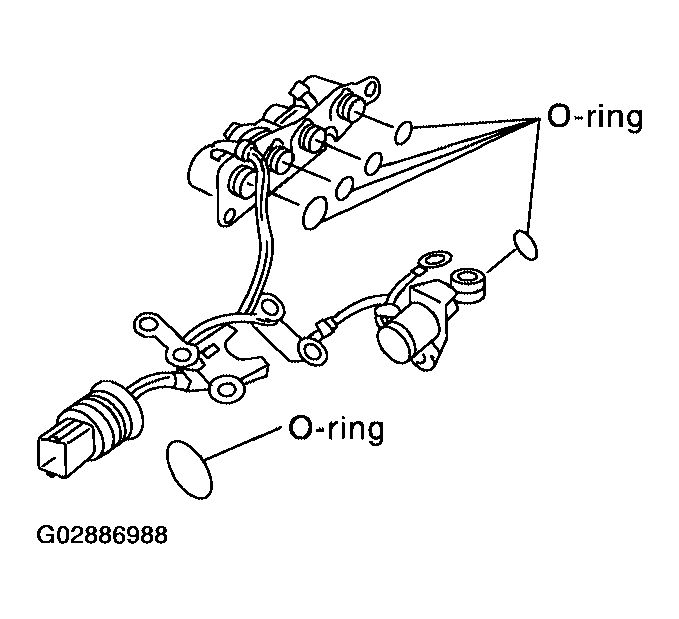

  Fig 11: Installing O-Rings To Solenoid Valves And Terminal Body

  Courtesy of NISSAN MOTOR CO., U.S.A.

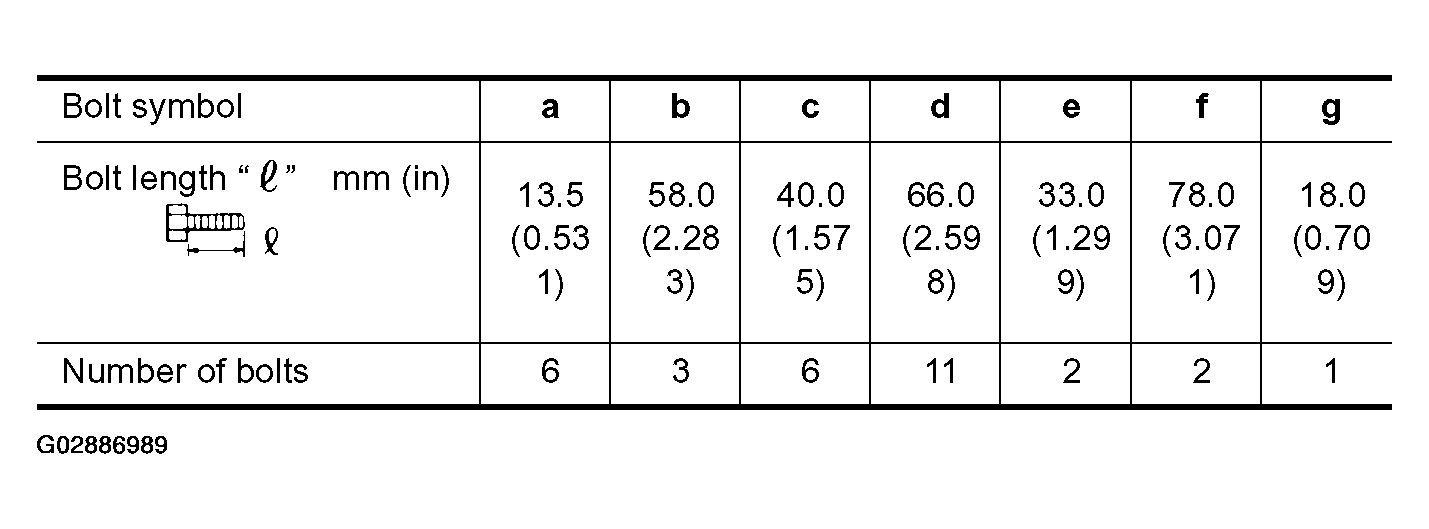

Bolt length, number and location:

Fig 12: Bolt Specifications Table

Courtesy of NISSAN MOTOR CO., U.S.A.

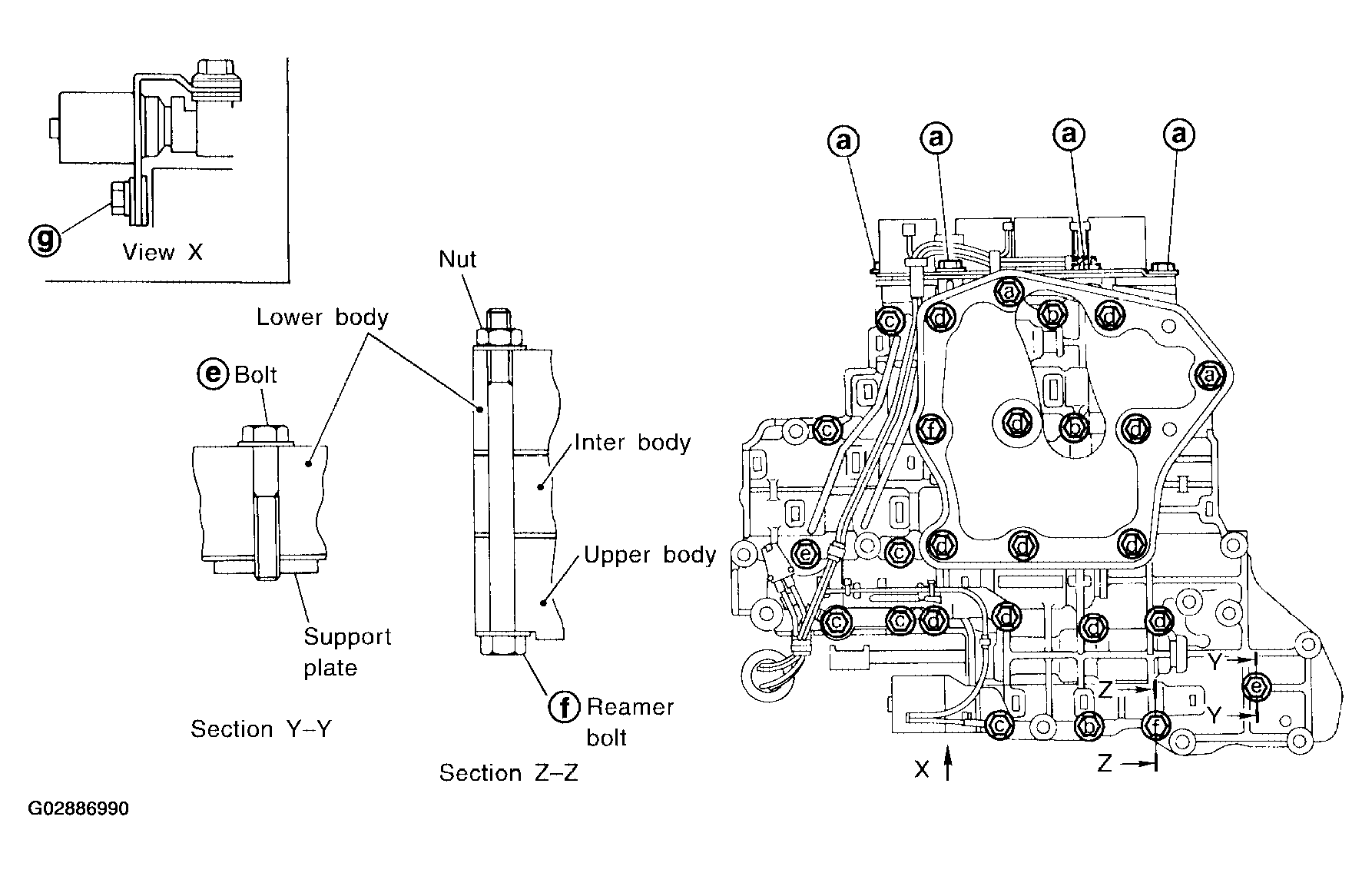

Fig 13: Locating Bolt Installation Point

Courtesy of NISSAN MOTOR CO., U.S.A.

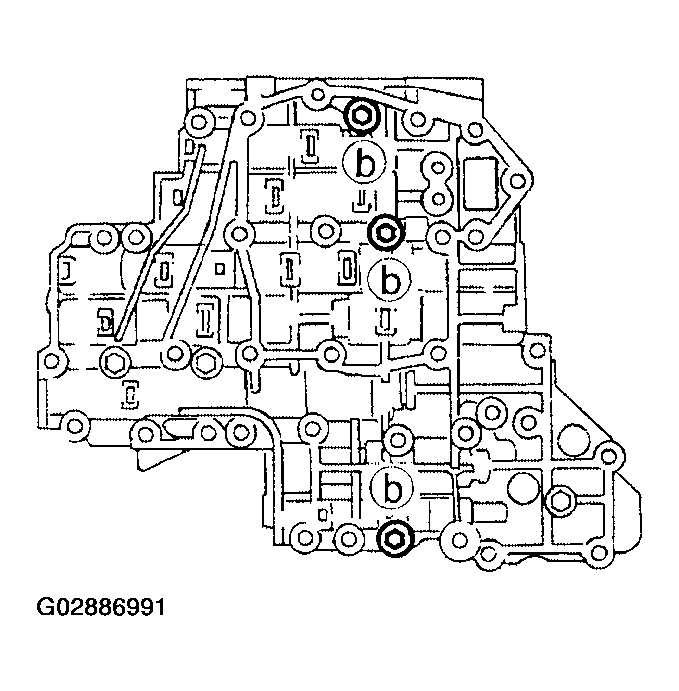

1. Install and tighten bolts b  to specified torque.

   : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

   Fig 14: Installing & Tightening Bolts "B"

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install solenoid valve assembly and line pressure solenoid valve to lower body.

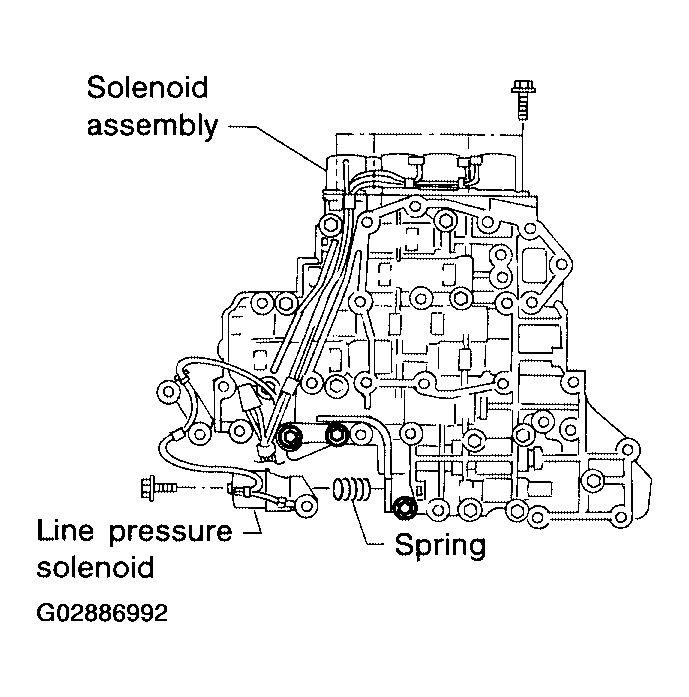

   Fig 15: Installing Solenoid Valve Assembly & Line Pressure Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

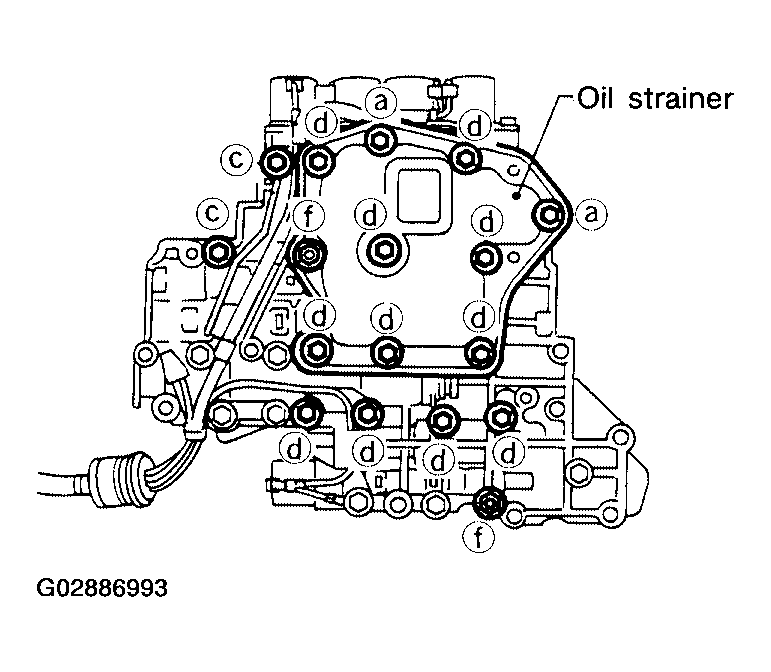

3. Set oil strainer, then tighten bolts a, c, d  and nuts f  to specified torque.

   : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

   Fig 16: Tightening Bolts A, C, D And Nuts

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Tighten bolts e  to specified torque.

   : 3.4 - 4.4 N.m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)

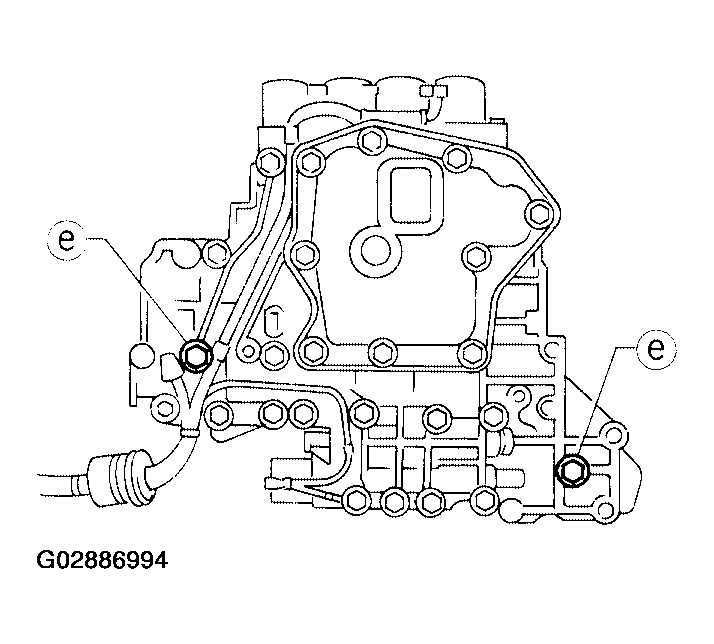

   Fig 17: Tightening Bolts "E"

   Courtesy of NISSAN MOTOR CO., U.S.A.
