Control Device

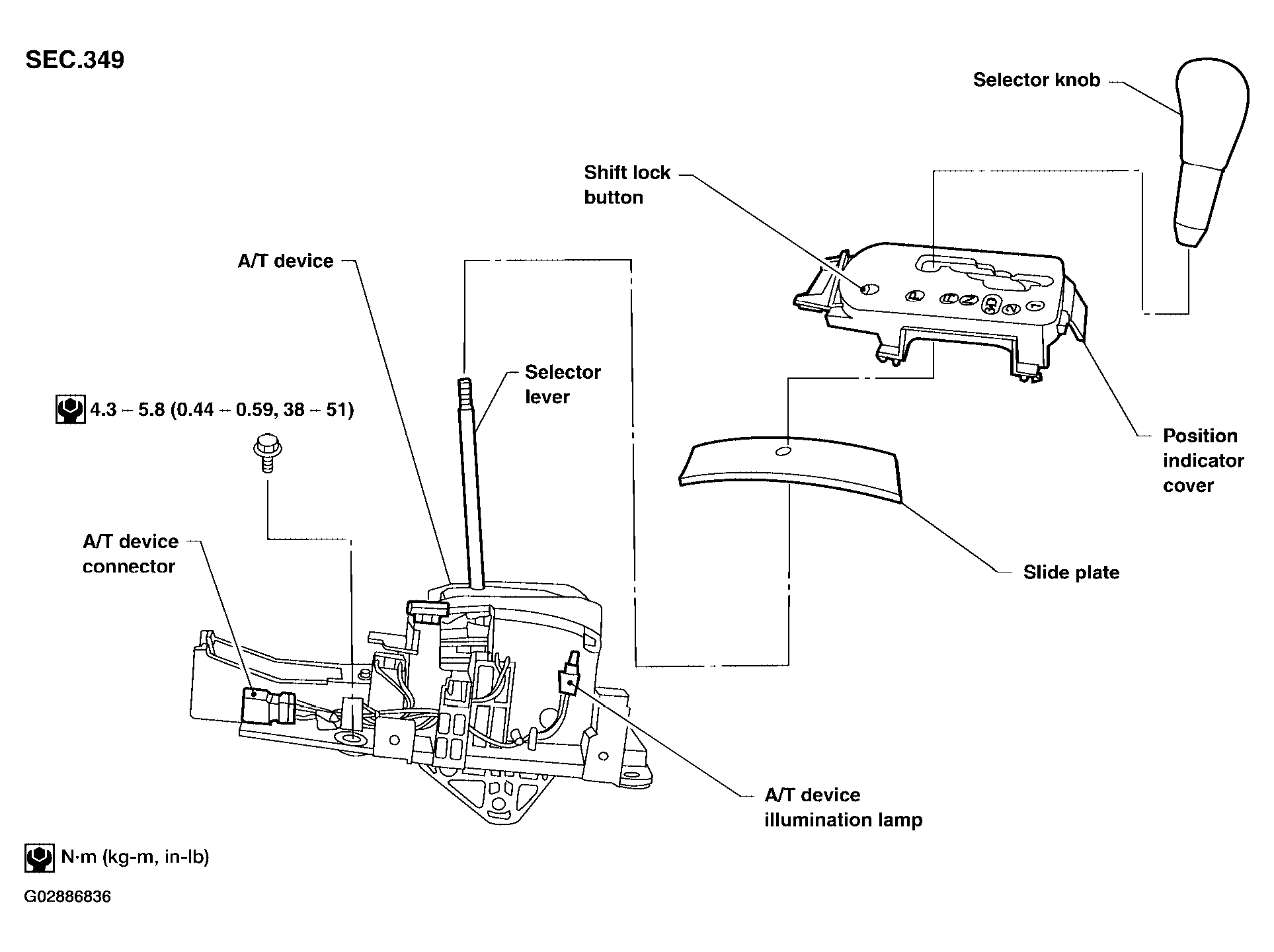

Fig 1: Exploded View Of Control Device Components & Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
