Wiper Dial Position Setting

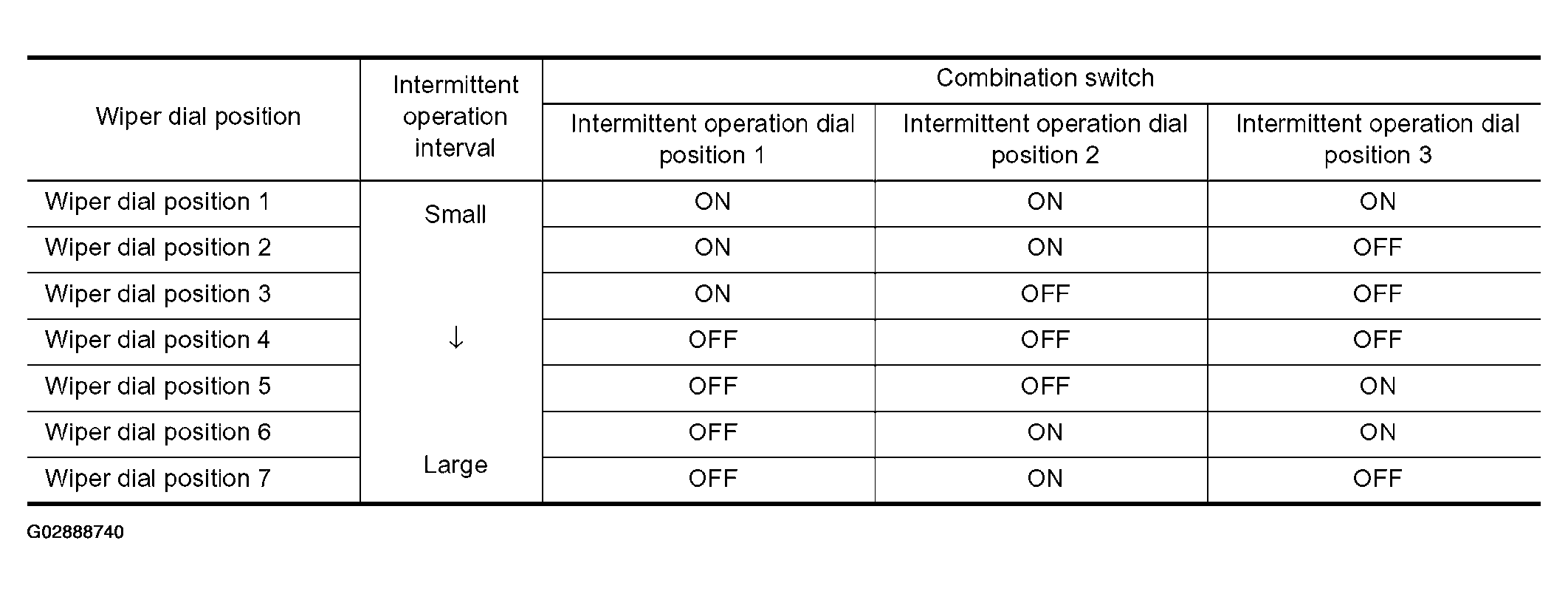

Fig 1: Wiper Dial Position Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Example: For wiper dial position 1...

Using combination switch reading function, BCM detects ON/OFF status of intermittent operation dial positions 1, 2, and 3.

When combination switch status is as listed below, BCM determines that it is wiper dial position 1.

• Intermittent operation dial position 1: ON (input 3 and output 1 are conducting.)
• Intermittent operation dial position 2: ON (input 5 and output 1 are conducting.)
• Intermittent operation dial position 3: ON (input 4 and output 2 are conducting.)

BCM determines front wiper intermittent operation delay interval from wiper dial position 1 and vehicle speed, and sends wiper request signal (INT) to IPDM E/R.
