Table Of BCM - Combination Switch Operations

BCM reads operation status of combination switch using combinations shown in figureFig 1 below.

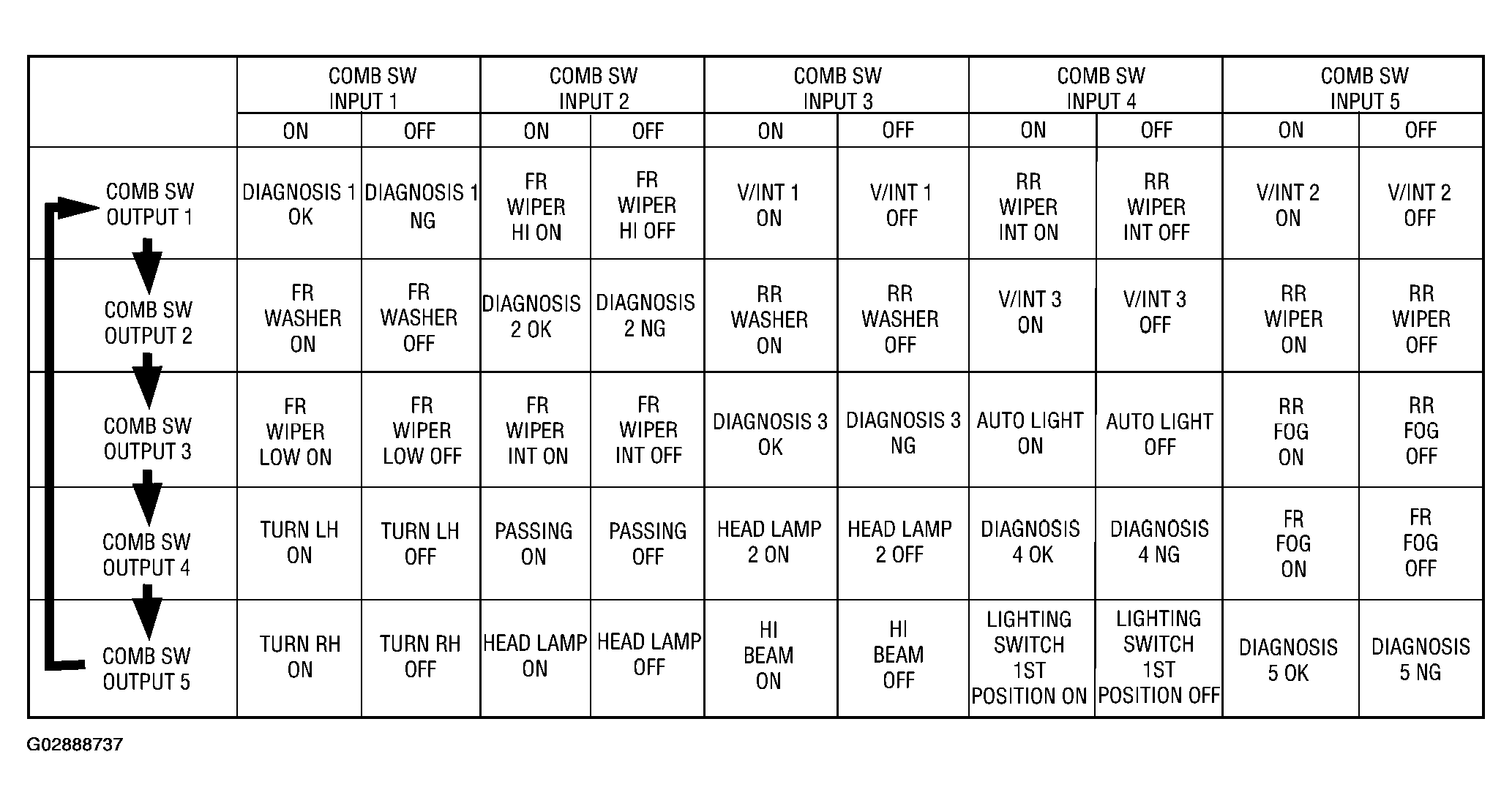

Fig 1: Combination Switch Input Chart
G02888737Courtesy of NISSAN MOTOR CO., U.S.A.
